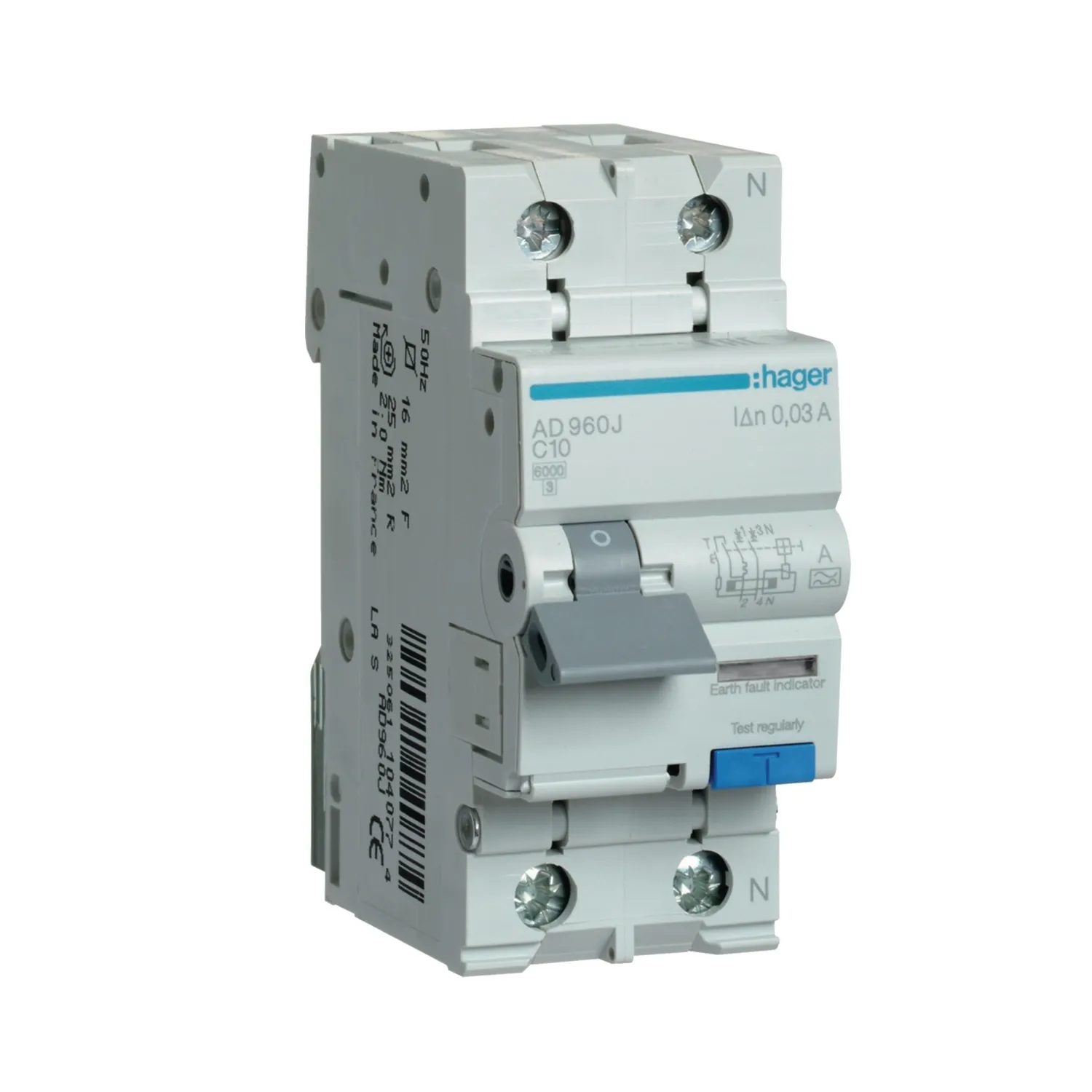

Hager RCBO 1P+N 10A 30mA C Curve Type A

Photo is representative

Hager RCBO 1P+N 6kA C-10A 30mA Type A 2 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code AD960J
GTIN 3250611040774
Stock status: In stock

priced individually

More arriving soon

Net price: £29.75

Gross price

£35.71

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager AD960J RCBO, 1P+N, 10A with C-curve and 30mA Type A protection. Fits standard domestic and light commercial boards, clips onto DIN rail taking up 2 modules.

  • 6kA breaking capacity to IEC 60898-1
  • 230-240V AC rated voltage
  • Operating temperature: -25°C to +40°C
  • Screw terminal top, Biconnect bottom
  • IP20 rated for indoor use
Specifications

Type

RCBO

Poles

1P+N

Curve

C

Current Rating

10 A

Residual Current

30 mA

Residual Current Type

A

Breaking Capacity

6 kA

Voltage

230–240 V AC

Insulation Voltage

500 V

Impulse Withstand

4000 V

Frequency

50 Hz

IP Rating

IP20

Module Width

2 modules

Operating Temperature

-25 to +40 °C

Flexible Conductor Range

1–16 mm²

Rigid Conductor Range

1–25 mm²

Tightening Torque

2.10 Nm

Standard

IEC 60898-1

Documents

datasheet Hager AD960J Datasheet
