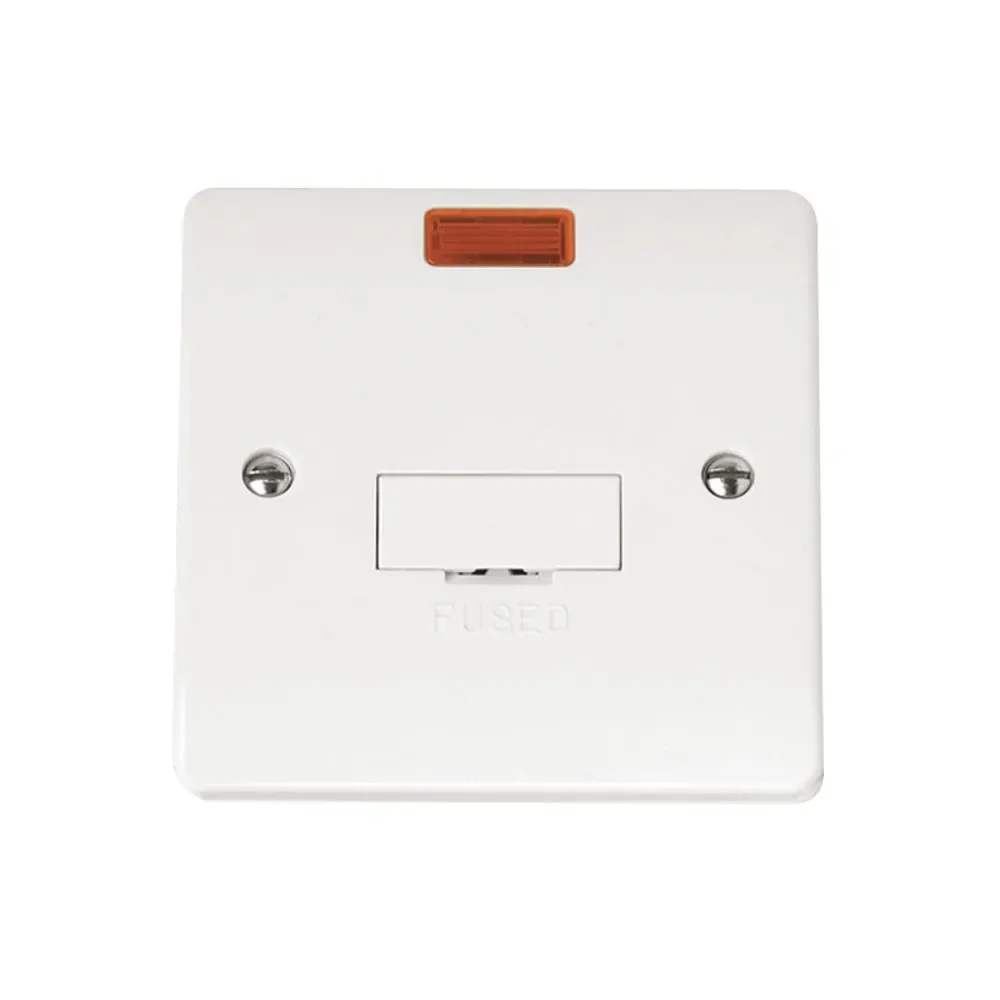

Photo is representative
Click CMA653 13A Fused Connection Unit With Neon - Polar White
13A fused connection unit with neon indicator for fixed appliance connections up to 250V AC. Features screw terminals accepting 3x 2.5mm² conductors, twin earth terminals, and BS 1363-4 compliance. Non-switched design provides permanent power supply with visual confirmation via orange neon indicator. Requires 25mm minimum backbox depth with 60.3mm horizontal fixing centres. Click MODE range offers 25-year warranty with antimicrobial properties for hygiene-critical installations. Suitable for immersion heaters, extract fans, and dedicated appliance circuits requiring permanent connection.
Online:
Product Features
| Current Rating | 13A resistive load at 250V AC |
|---|---|
| Connection Type | Fused connection unit (non-switched) |
| Fuse Type | Plug top cartridge fuse |
| Neon Indicator | Orange colour visual confirmation |
| Terminal Type | Screw terminals Ø5mm, 2Nm torque |
| Terminal Capacity | 3x 2.5mm² or 2x 4mm² solid conductors |
| Twin Earth | Dedicated earth terminals fitted |
| Backbox Depth | 25mm minimum depth required |
| Compliance | BS 1363-4 and BS 1362 standards |
| IP Rating | IP20 for indoor applications |
| Temperature Range | -5°C to +40°C operational |
| Warranty | 25-year manufacturer guarantee |
Installation Requirements
Terminal Specification
5mm diameter screw terminals with 2Nm torque setting. Twin earth terminals pre-fitted for faster installation and improved safety compliance.
Mounting Compatibility
Standard 86x86mm faceplate dimensions with 60.3mm fixing centres. Compatible with 25mm minimum depth metal or plastic backboxes.
Cable Entry
Multiple cable entry points accommodate various installation angles. Terminals accept solid conductors from 1.5mm² to 4mm² cross-sectional area.
Applications
Immersion Heaters
Non-switched design ideal for immersion heater circuits requiring permanent supply with separate time clock control. Neon confirms circuit status.
Extract Fans
Perfect for bathroom extract fans controlled by separate switch or timer. Permanent connection ensures continuous operation when required.
Appliance Circuits
Dedicated circuits for washing machines, dishwashers, or other fixed appliances requiring fused protection and permanent connection availability.
Technical Standards
BS 1363-4 Compliance
Meets British Standard requirements for fused connection units including safety, performance, and electrical characteristics for domestic installations.
Fuse Standards
Compatible with BS 1362 plug top cartridge fuses. Standard 13A fuse included, replaceable with lower ratings as circuit requirements demand.
Quality Assurance
UKCA marked for Great Britain compliance. 25-year warranty demonstrates long-term reliability and manufacturer confidence in build quality.
Frequently Asked Questions
-
What backbox depth is needed for the CMA653 fused connection unit?
Requires minimum 25mm backbox depth with 60.3mm horizontal fixing centres. Standard 35mm backboxes provide adequate installation clearance for cable connections.
-
Can I connect a 3kW immersion heater to this FCU?
Yes, rated for 13A resistive loads at 250V AC, suitable for 3kW immersion heaters. Use appropriate 13A cartridge fuse for overcurrent protection.
-
What does the neon indicator show on this connection unit?
Orange neon indicator provides visual confirmation when live supply is present. Illuminates when circuit is energised, even with appliance switched off downstream.
-
Which cable sizes fit the screw terminals?
Terminals accept 3x 2.5mm² or 2x 4mm² solid conductors. 5mm diameter terminals with 2Nm torque specification ensure secure electrical connections.
-
Is this FCU suitable for bathroom installations?
IP20 rating limits use to dry indoor locations only. For bathroom zone applications, choose IP44 rated units specifically designed for moisture exposure.
