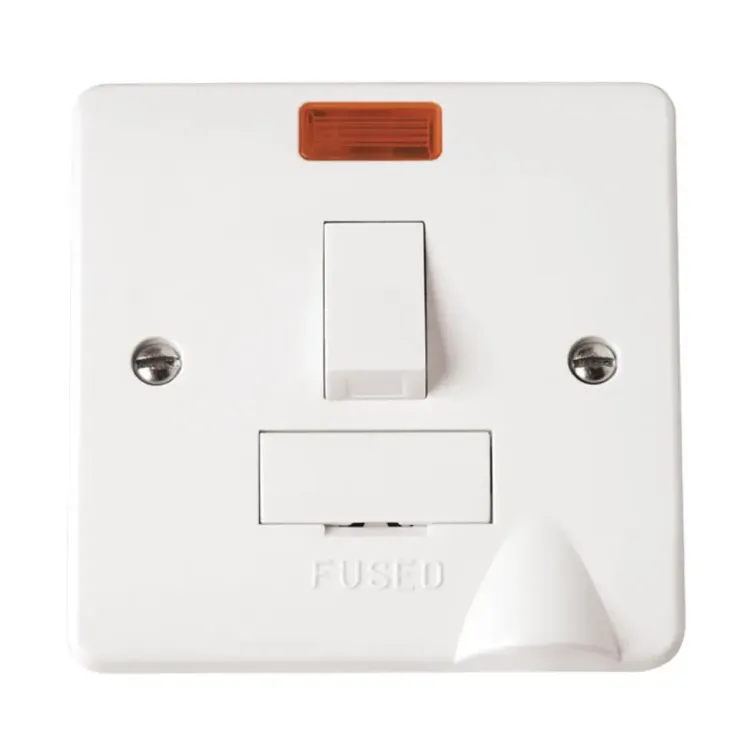

Photo is representative

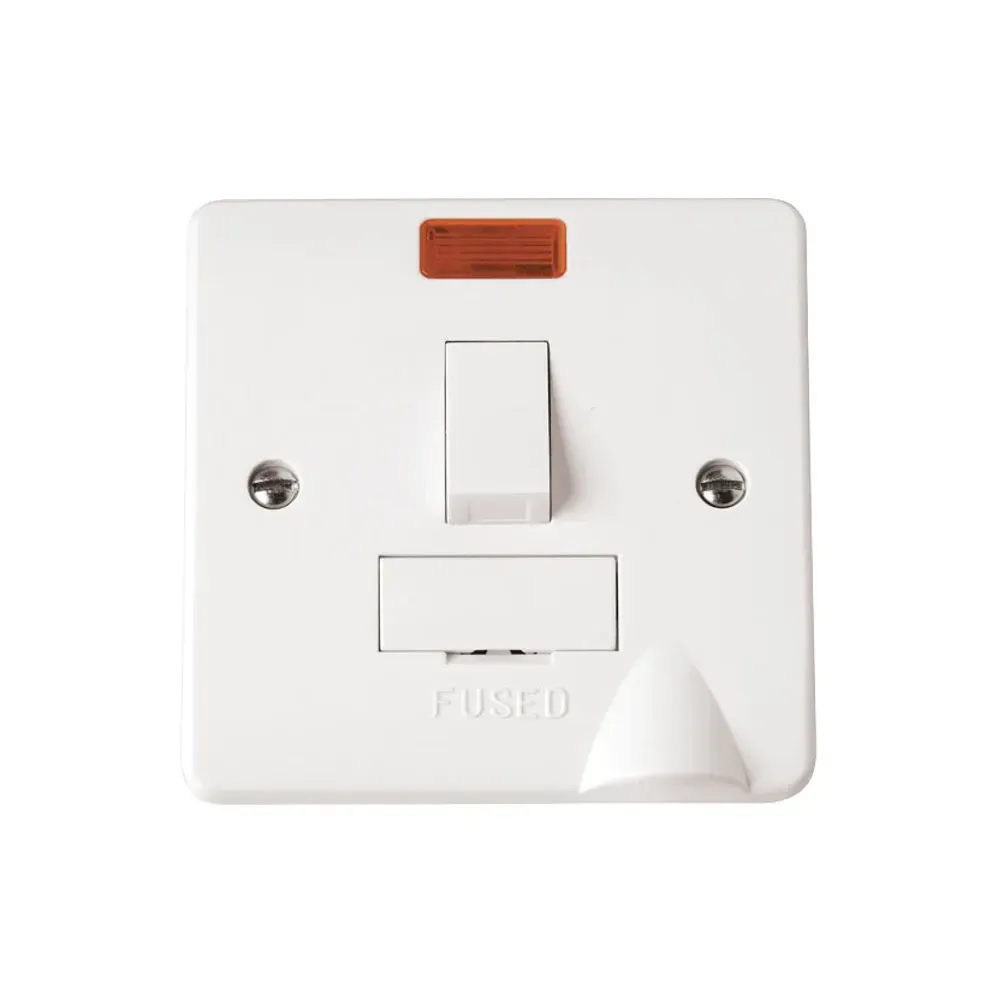

Click Mode 13A DP Switched FCU with Orange Neon & Flex Outlet - Polar White
13A double pole switched fused connection unit with orange neon indicator and optional flex outlet for fixed appliance installations. Screw terminals accept 3x 2.5mm² or 2x 4mm² conductors with 2Nm torque specification. Orange neon provides clear visual confirmation of switching status for maintenance purposes. Features antimicrobial surface treatment with 99.9% kill rate against MRSA, E-Coli and Salmonella. Compatible with 25mm minimum depth backboxes using standard 86x86mm faceplate dimensions. BS 1363-4 and BS 1362 compliant for professional installations requiring switched fused outlets with status indication.
Online:
Product Features
| Current Rating | 13A at 250V AC |
|---|---|
| Switching Type | Double Pole with Orange Neon Indicator |
| Fuse Specification | Plug Top Cartridge Fuse (BS 1362) |
| Terminal Type | Screw Terminals Ø5mm with 2Nm Torque |
| Cable Capacity | 3x 2.5mm² or 2x 4mm² Solid Conductors |
| Backbox Compatibility | 25mm Minimum Depth Required |
| Flex Outlet | Ø10mm Bottom Entry (Optional) |
| Plate Dimensions | 86(W) x 86(H) x 9.5(D)mm Standard |
| IP Rating | IP20 Indoor Use |
| Compliance Standards | BS 1363-4, BS 1362, CE/UKCA Marked |
| Antimicrobial Performance | 99.9% Kill Rate - MRSA, E-Coli, Salmonella |
| Operating Temperature | -5°C to +40°C at 50Hz |
Professional Applications
Immersion Heater Control
13A rating perfect for 3kW immersion heaters. Double pole isolation and orange neon confirm heating circuit status for maintenance safety.
Kitchen Appliance Circuits
Dedicated circuits for dishwashers, waste disposals, and under-counter appliances. Flex outlet accommodates direct appliance connections without separate outlet.
Commercial Fixed Equipment
Hand dryers, water heaters, and fixed machinery requiring local isolation switch with clear status indication for operational safety.
Installation Specifications
Terminal Configuration
Twin earth terminals pre-fitted. Ø5mm screw terminals with 2Nm torque specification ensure secure connections for 2.5mm² ring main or 4mm² radial circuits.
Mounting Requirements
Standard 86x86mm faceplate with 60.3mm horizontal centres. 25mm minimum backbox depth accommodates rear housing and terminal connections.
Flex Outlet Access
Bottom-mounted Ø10mm flex outlet provides direct appliance connection. Removable blanking plate when outlet not required for installation flexibility.
Compliance Standards
BS 1363-4 Compliance
Fused connection units standard ensures safe switching and overcurrent protection. Covers terminal specifications, switching performance, and safety requirements.
BS 1362 Fuse Standard
Plug top cartridge fuse specification provides reliable overcurrent protection. Standard fuse types readily available for maintenance and replacement.
Antimicrobial Certification
Independent testing confirms 99.9% kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae. 25-year warranty covers antimicrobial performance.
Frequently Asked Questions
-
What backbox depth is required for the CMA052 installation?
Minimum 25mm backbox depth required. Standard 86x86mm faceplate with 60.3mm horizontal fixing centres fits most single backboxes.
-
Can this FCU control immersion heaters and water heating circuits?
Yes, 13A rating suitable for immersion heaters up to 3kW. Double pole switching isolates both live and neutral for complete circuit isolation.
-
What cable sizes connect to the screw terminals?
Ø5mm screw terminals accept 3x 2.5mm² or 2x 4mm² solid conductors. Tighten to 2Nm torque specification for secure connections.
-
Why choose orange neon indicator over standard switching?
Orange neon provides instant visual confirmation of switching status, essential for appliance isolation verification during maintenance or emergency shutdown situations.
-
FCU trips immediately when appliance connected - what causes this?
Check fuse rating matches appliance load. Verify appliance earth leakage isn't triggering upstream RCD protection. Test with known good appliance first.
-
Does this meet Part P Building Regulations requirements?
Yes, BS 1363-4 and BS 1362 compliance meets Part P requirements. Installation by competent person or notification to Building Control required.
