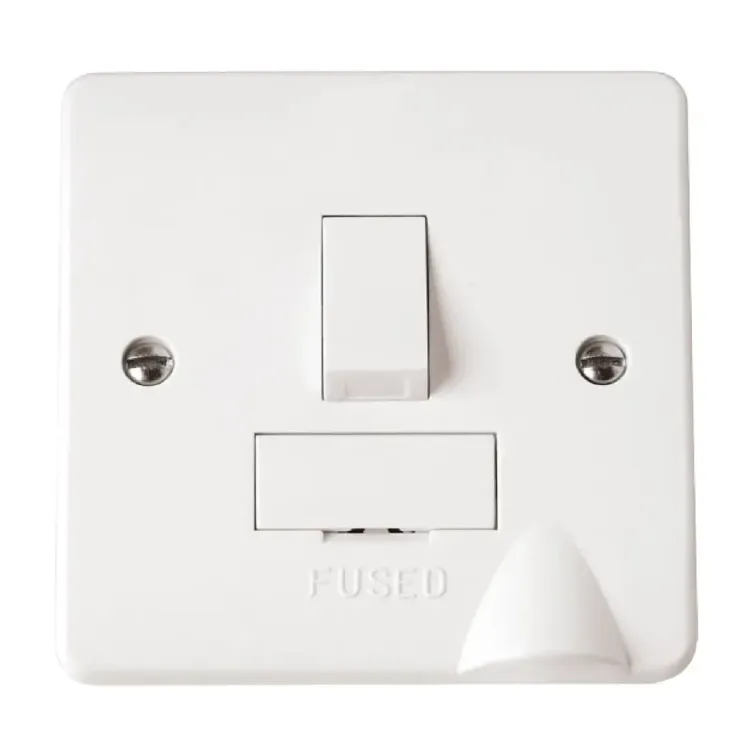

Photo is representative

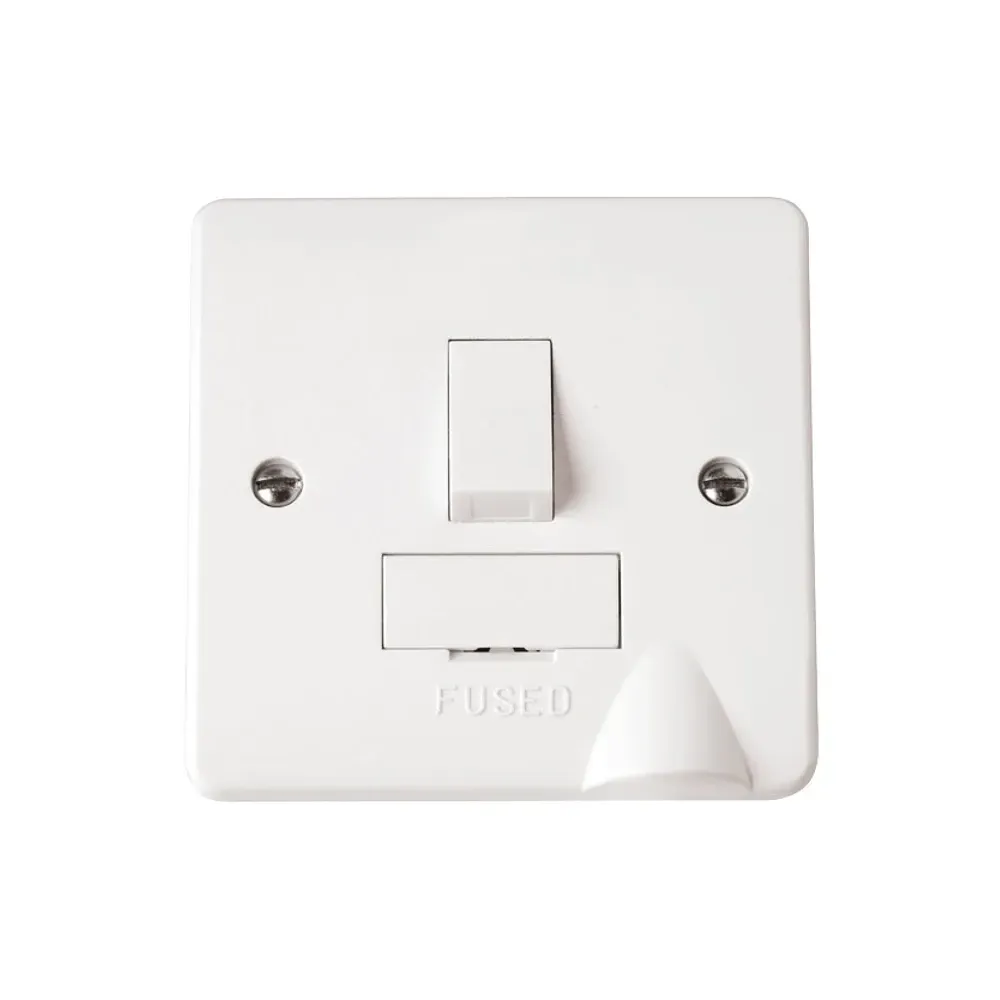

Click Mode 13A DP Switched Fused Connection Unit Flex Outlet - Polar White, CMA051
13A double pole switched fused connection unit with optional flex outlet for fixed appliance control. Features dual isolation switching for complete circuit disconnect. Accepts plug-top cartridge fuses and includes Ø10mm bottom flex outlet. Antimicrobial urea formaldehyde construction with 99.9% bacteria/virus kill rate. Screw terminals accept 3x2.5mm² or 2x4mm² conductors with 2Nm torque setting. BS 1363-4 compliant with 25-year warranty. Requires 25mm minimum backbox depth for flush mounting. Essential for appliances requiring local isolation like immersion heaters, extractor fans, and fixed kitchen equipment.
Online:
Product Features
| Current Rating | 13A Resistive Load at 250V AC |
|---|---|
| Switching Configuration | Double Pole Switched for Complete Isolation |
| Fuse Protection | Plug Top Cartridge Fuse BS 1362 |
| Flex Outlet | Optional Ø10mm Bottom Entry |
| Terminal Capacity | 3x 2.5mm² or 2x 4mm² Solid Conductors |
| Terminal Type | Ø5mm Screw Terminals with 2Nm Torque |
| Backbox Requirements | 25mm Minimum Depth for Flush Mount |
| Plate Dimensions | 86mm x 86mm x 9.5mm with 60.3mm Centres |
| Compliance Standards | BS 1363-4, BS 1362, UKCA Marked |
| Antimicrobial Protection | 99.9% Kill Rate Bacteria/Viruses Certified |
| Operating Temperature | -5°C to +40°C Ambient Range |
| Warranty Coverage | 25 Years Manufacturer Guarantee |
Applications
Immersion Heater Control
Double pole isolation ensures complete electrical disconnect for water heating element maintenance and safety compliance.
Kitchen Appliance Supply
Fixed connection for dishwashers, waste disposal units requiring local isolation with fused protection up to 13A load.
Extractor Fan Connection
Switched control with optional flex outlet for bathroom/kitchen extract fans requiring accessible local isolation switching.
Installation
Terminal Configuration
Twin earth terminals pre-fitted. Screw terminals require 2Nm torque setting. 60.3mm fixing centres match standard backbox dimensions.
Cable Management
Multiple conductor entry options. 25mm backbox adequate for ring main cables. Consider 35mm depth for multiple circuits.
Flex Outlet Setup
Bottom-entry Ø10mm outlet accommodates appliance flex up to 10mm diameter. Outlet accessible when plate removed for maintenance.
Standards
Safety Compliance
BS 1363-4 switched fused connection units standard. BS 1362 cartridge fuse specification. UKCA marking confirms regulatory compliance.
Antimicrobial Certification
Laboratory tested 99.9% kill rate against bacteria and viruses. Urea formaldehyde material provides inherent antimicrobial properties throughout product life.
Frequently Asked Questions
-
What backbox depth needed for this switched FCU?
Requires minimum 25mm backbox depth for flush mounting. Standard 35mm backboxes provide additional cable management space for multiple conductor terminations.
-
Can I use 4mm² cable with these terminals?
Yes, screw terminals accept up to 2x 4mm² solid conductors or 3x 2.5mm² conductors. Tighten to 2Nm torque specification using Ø5mm terminal screws.
-
When should I choose double pole over single pole switching?
Double pole switching provides complete circuit isolation by disconnecting both live and neutral conductors. Essential for fixed appliances like immersion heaters requiring full isolation.
-
What fuse ratings can I use in this FCU?
Accepts standard plug-top cartridge fuses rated from 1A to 13A maximum. Select fuse rating to match connected appliance requirements per BS 1362 standard.
-
Is the flex outlet suitable for outdoor cable entry?
The Ø10mm flex outlet is IP20 rated for indoor use only. For outdoor applications, use appropriate IP-rated flex outlet accessories or weatherproof enclosures.
-
Does this FCU meet Part P Building Regulations?
Yes, BS 1363-4 compliant and UKCA marked. Installation may require Building Control notification depending on location per Part P requirements.
