6491B Single Core LSZH Cable 6mm Grey 450 750V H07Z-R

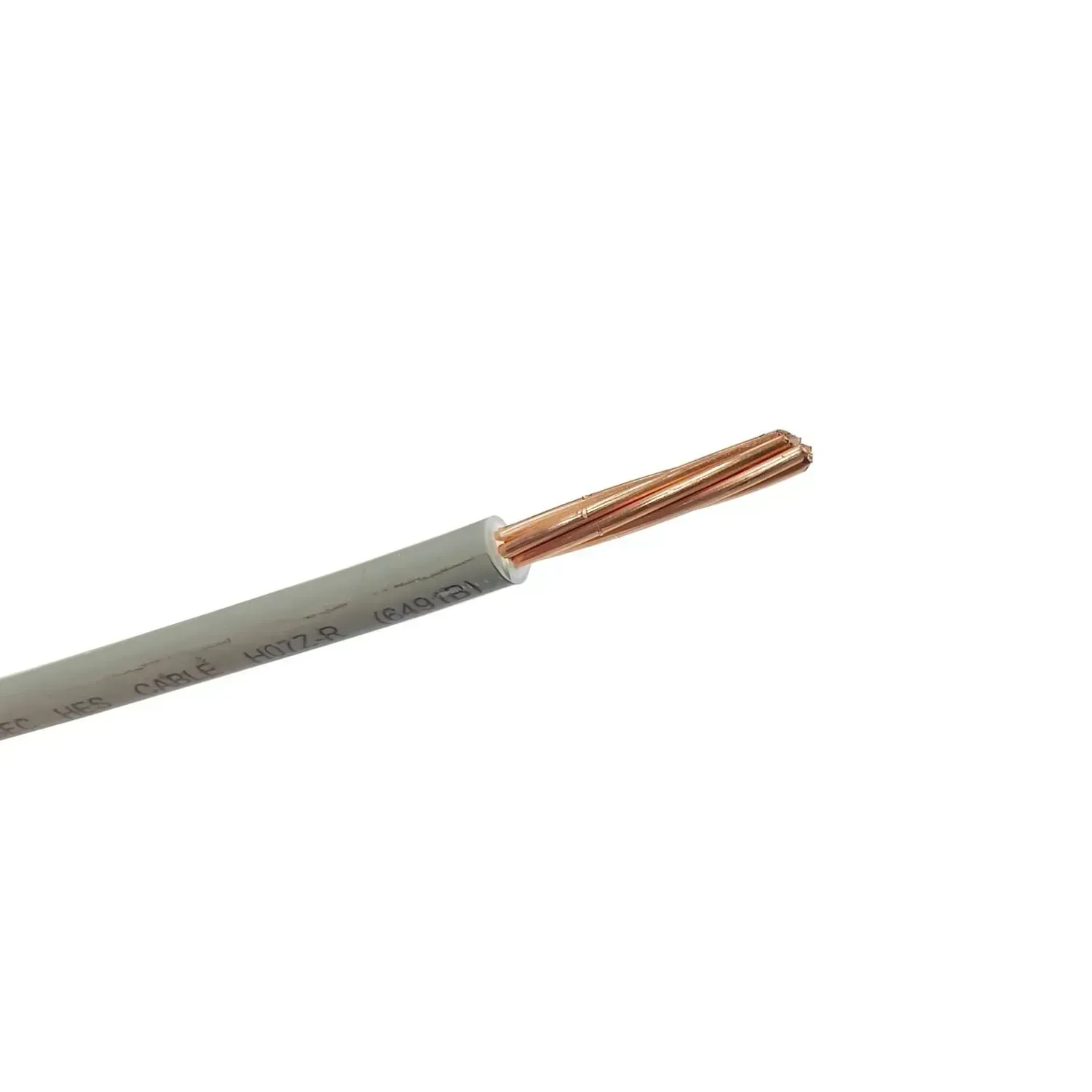

Photo is representative

6491B Single Core LSZH Cable 6mm Grey 450 750V H07Z-R

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 6PVCGREY1
GTIN —
Stock status: Out of stock

priced per metre

More arriving soon

Net price: £1.36

Gross price

£1.63

Single core 6491B LSZH cable in 6mm² grey. Rated 450/750V, H07Z-R. Suited for fixed wiring in conduit, lighting circuits, switchgear, and control gear.

LSZH sheath makes it appropriate where smoke, toxic fumes, or halogen emissions are a concern — containment voids, public buildings, enclosed spaces.

  • 6mm² Class 2 stranded copper, 7⁄1.04mm stranding
  • 450/750V rated
  • LSZH sheath — IEC/EN 61034-1⁄2, BS EN 60332-1-2
  • OD: 4.75mm | Min. bend radius (fixed): 6 x OD
  • Temp range: 0°C to +90°C
Specifications

Conductor Size

6 mm²

Number of Cores

1

Core Colour

Grey

Voltage Rating

450/750 V

Conductor Type

Class 2 stranded copper

Stranding

7/1.04 mm

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

4.75 mm

Weight

69 kg/km

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
