6491B 4mm Single Core Grey LSZH Cable H07Z-R 450 750V

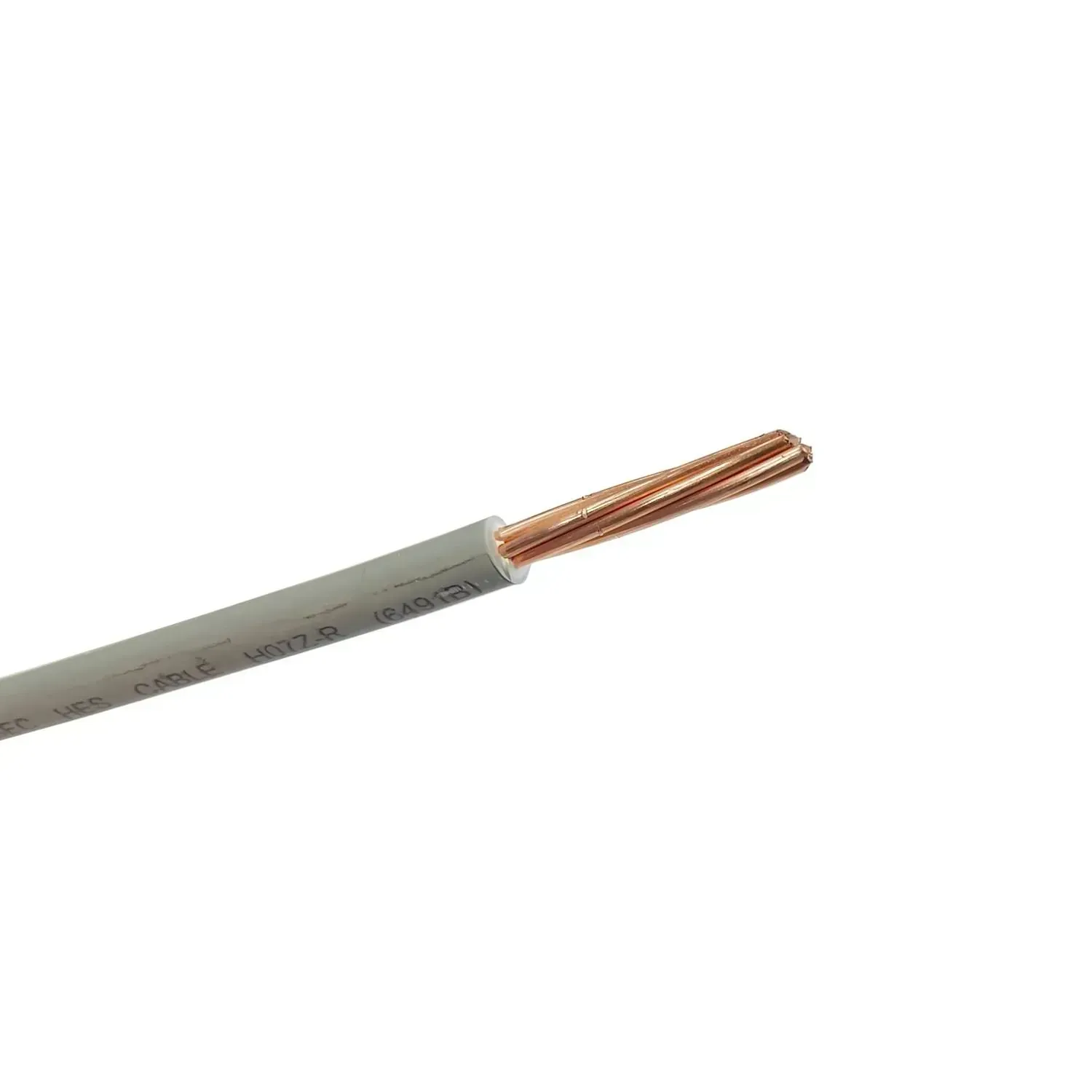

Photo is representative

6491B 4mm Single Core Grey LSZH Cable H07Z-R 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4PVCGREY
GTIN —
Stock status: In stock

priced per metre

Net price: £0.75

Gross price

£0.90

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

6491B single core LSZH cable in 4mm² grey. Suited for conduit and fixed protection installations — lighting circuits, switchgear, and control gear.

LSZH sheath keeps smoke, emissions, and toxic fumes to a minimum if the cable is involved in a fire. Rated to H07Z-R.

  • 4mm² Class 2 stranded copper, 7⁄0.85 stranding
  • 450/750V rated
  • Temperature range: 0°C to +90°C
  • OD: 4.2mm, min bending radius (fixed): 6 x OD
  • Flame retardancy: BS EN 60332-1-2
Specifications

Conductor Size

4 mm²

Number of Cores

1

Core Colour

Grey

Voltage Rating

450/750V

Conductor Type

Class 2 stranded copper

Stranding

7/0.85

Overall Diameter

4.2 mm

Sheath Material

Low Smoke Zero Halogen (LSZH)

Temperature Range

0°C to +90°C

Min Bending Radius (Fixed)

6 x overall diameter

Weight

49 kg/km

Flame Retardancy

BS EN 60332-1-2

Standard

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
