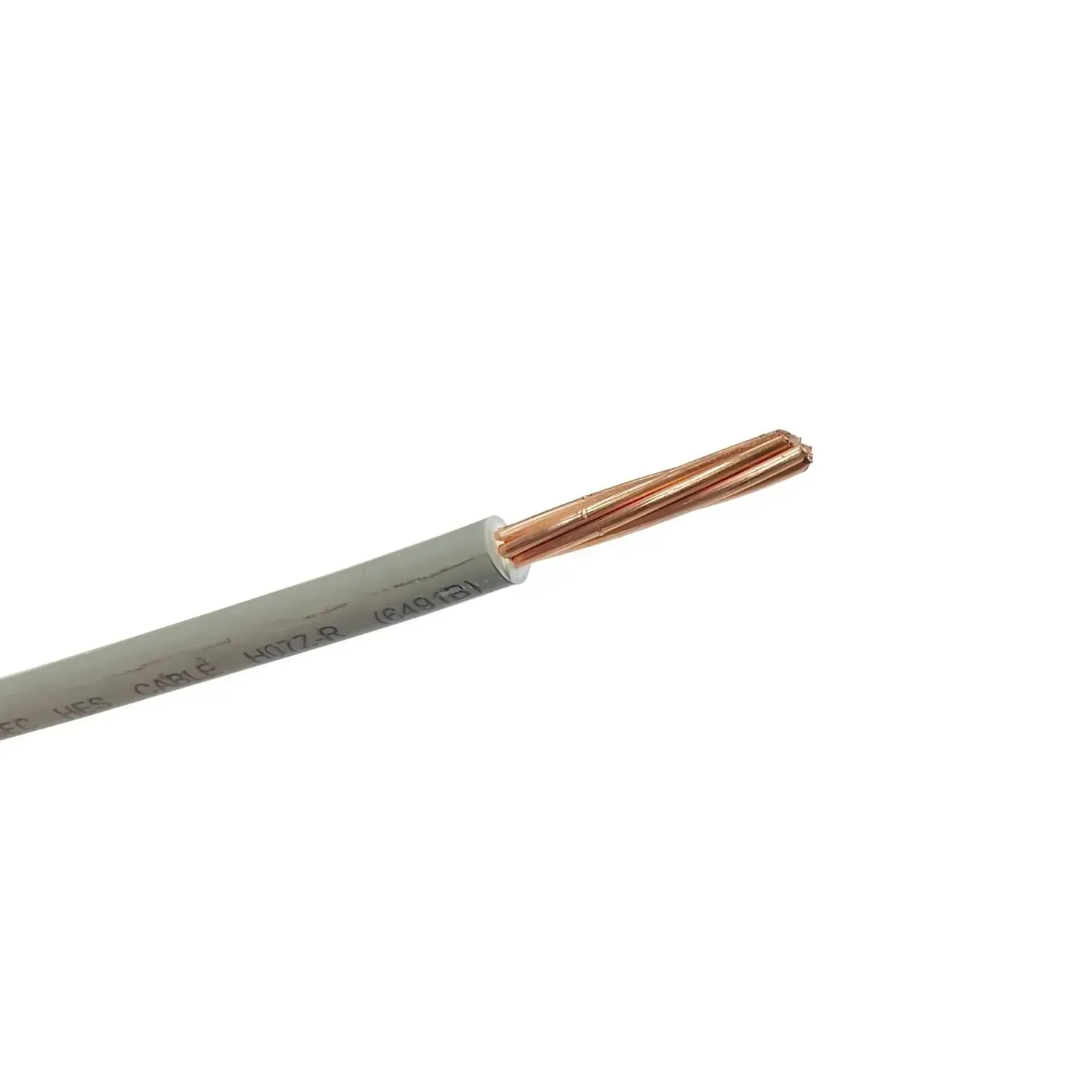

6491B H07Z-R 2.5mm Single Core Grey LSZH Cable 450 750V

Photo is representative

6491B H07Z-R 2.5mm Single Core Grey LSZH Cable 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2.5PVCGREY1
GTIN —
Stock status: In stock

priced per metre

Net price: £0.51

Gross price

£0.61

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core 6491B H07Z-R in grey LSZH sheath. Rated 450/750V with a Class 2 stranded copper conductor. Suited for conduit and fixed protection installations — lighting circuits, switchgear, and control gear.

LSZH sheath meets BS EN 60332-1-2 flame retardancy. Use where smoke, toxic fumes, or halogen emissions are a concern.

  • 2.5mm² conductor, 7⁄0.67 stranding
  • Overall diameter: 3.65mm
  • Min. bending radius (fixed): 6 × OD
  • Operating temp: 0°C to +90°C
  • Nylon A2 gland: 16 | Brass A2 gland: 20⁄16
Specifications

Conductor Size

2.5 mm²

Number of Cores

1

Core Colour

Grey

Voltage Rating

450/750 V

Conductor Type

Class 2 stranded copper

Conductor Stranding

7/0.67

Sheath Material

LSZH

Overall Diameter

3.65 mm

Weight

33 kg/km

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 × overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2

Nylon A2 Gland Size

16
