6mm Single Core Black LSZH Cable H07Z-R 450 750V

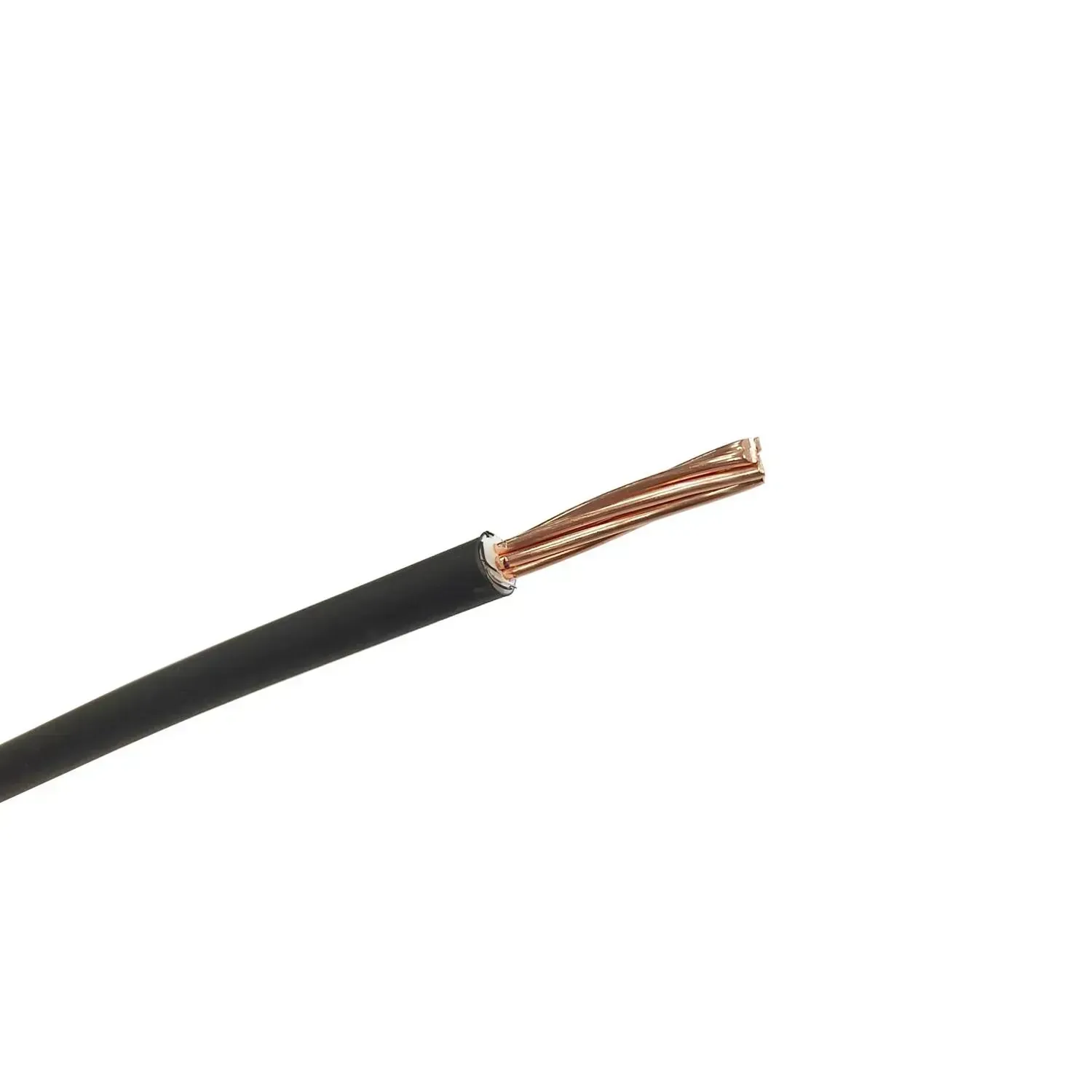

Photo is representative

6mm Single Core Black LSZH Cable H07Z-R 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 6PVCBLACK1
GTIN —
Stock status: In stock

priced per metre

Net price: £1.17

Gross price

£1.40

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core 6mm² black LSZH cable to H07Z-R. Suitable for conduit and fixed protection installations — lighting circuits, switchgear, and control gear.

LSZH sheath is the right call where fire, smoke, and toxic fume emissions are a concern.

  • 450/750V rated
  • Class 2 stranded copper, 7⁄1.04mm
  • 4.75mm overall diameter
  • Operating temp: 0°C to +90°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

6 mm²

Number of Cores

1

Core Colour

Black

Conductor Type

Class 2 stranded copper

Stranding

7/1.04 mm

Voltage Rating

450/750 V

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

4.75 mm

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 × overall diameter

Flame Retardancy

BS EN 60332-1-2

Weight

69 kg/km

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
