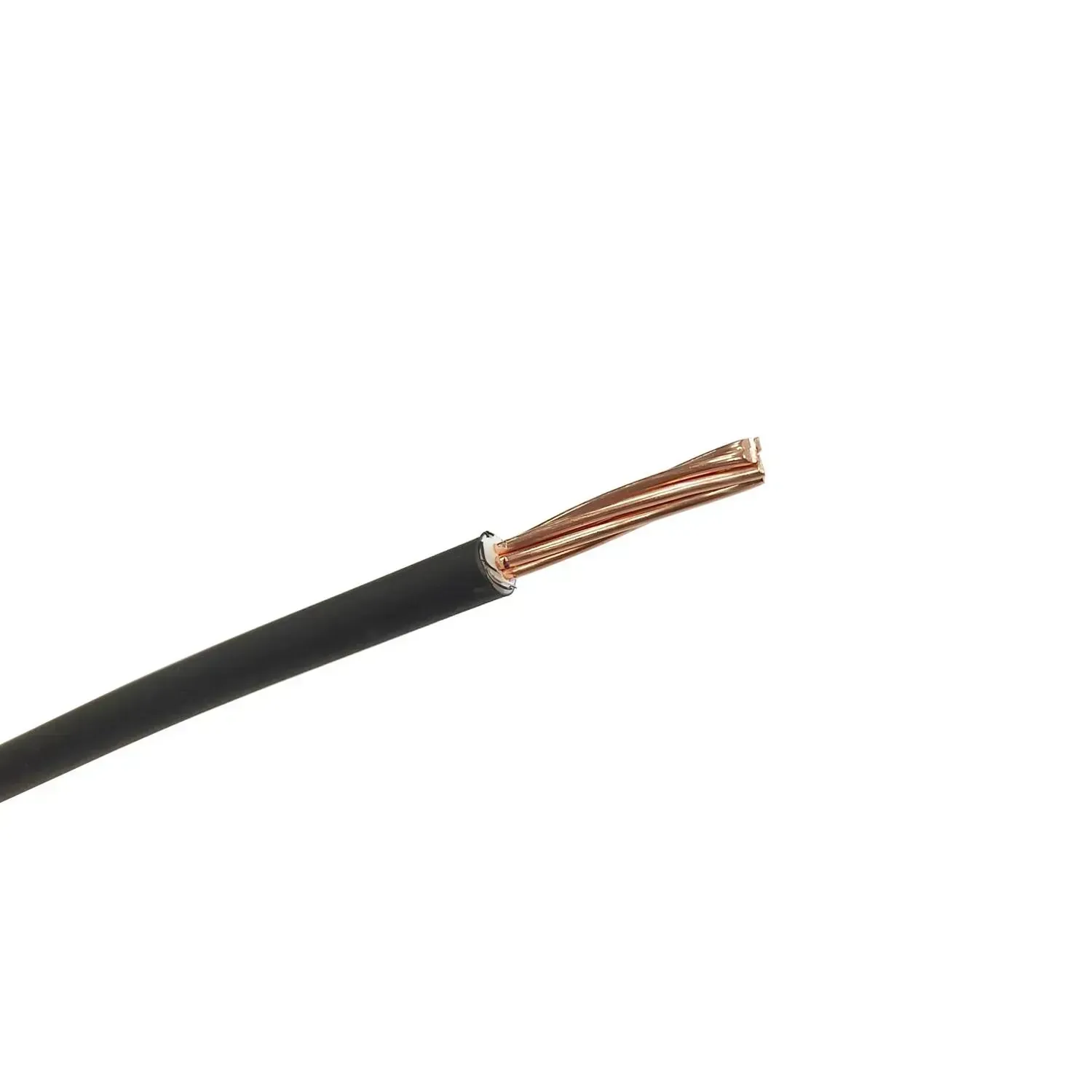

6491B H07Z-R Single Core 1.5mm² Black LSZH Cable 450 750V

Photo is representative

6491B H07Z-R Single Core 1.5mm² Black LSZH Cable 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 15PVCBLACK1
GTIN —
Stock status: In stock

priced per metre

Net price: £0.30

Gross price

£0.35

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core stranded copper cable with LSZH outer sheath. Suitable for fixed wiring in conduit — lighting circuits, switchgear, control gear, and appliance wiring.

LSZH sheath gives low smoke and zero halogen emission in a fire situation. Flame retardancy tested to BS EN 60332-1-2.

  • 1.5mm² Class 2 stranded copper (7⁄0.53)
  • 450/750V rated
  • 0°C to +90°C operating temperature
  • 3mm overall diameter
  • Min. bending radius (fixed): 6 x OD
Specifications

Voltage Rating

450/750V

Conductor Size

1.5mm²

Cores

1

Core Colour

Black

Conductor Type

Class 2 stranded copper

Stranding

7/0.53

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3mm

Weight

22 kg/km

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 x overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
