6491B H07Z-R Single Core 2.5mm² Black LSZH Cable 450 750V

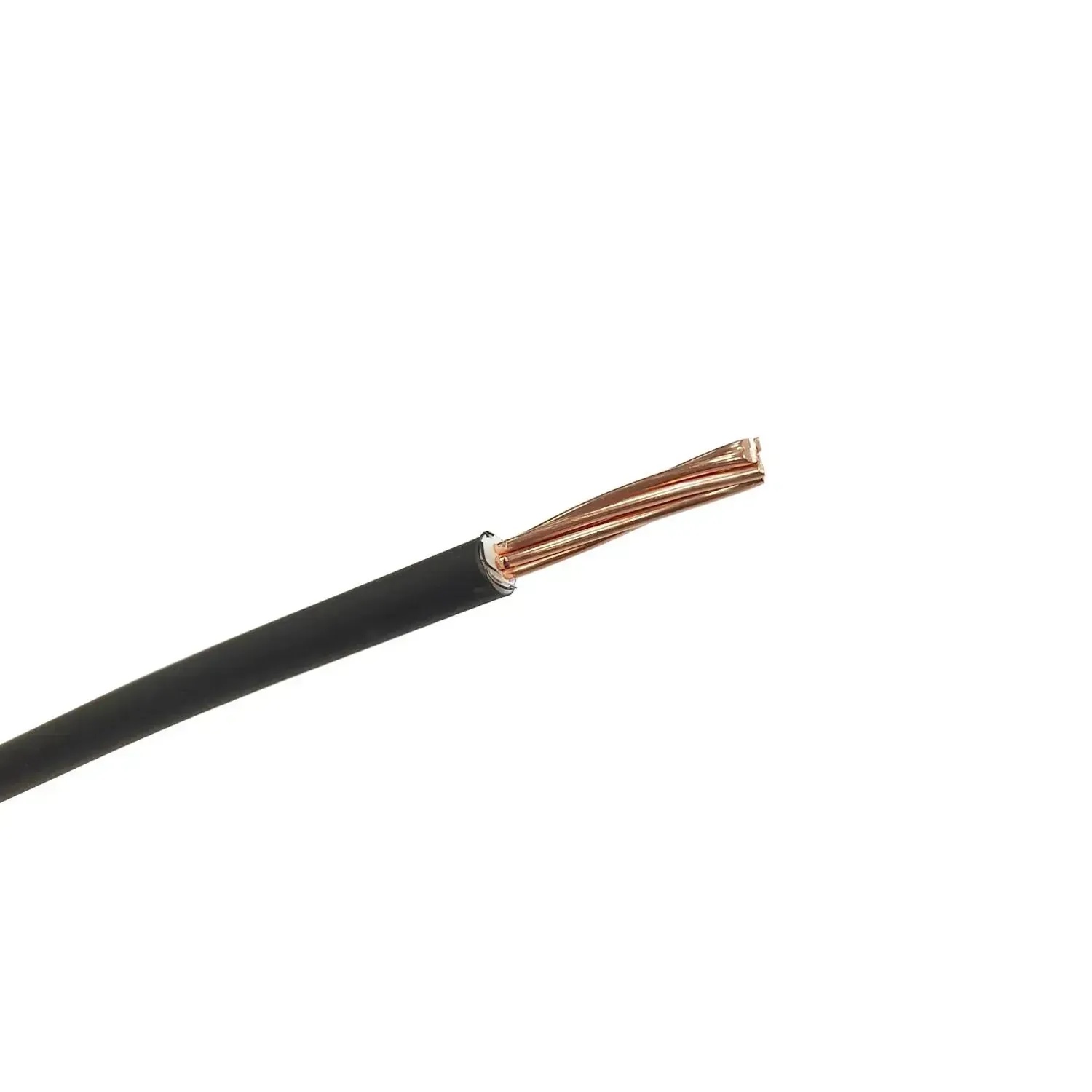

Photo is representative

6491B H07Z-R Single Core 2.5mm² Black LSZH Cable 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2.5PVCBLACK1
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.48

Gross price

£0.58

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

6491B single core LSZH cable in 2.5mm² black. H07Z-R type — suitable for conduit and fixed protection installations, lighting circuits, switchgear, and appliances.

LSZH sheath meets BS EN 60332-1-2 flame retardancy. Rated to 90°C, making it suitable where standard PVC cable falls short on temperature performance.

  • 450/750V rated
  • Class 2 stranded copper, 7⁄0.67mm
  • 3.65mm overall diameter
  • Min. bending radius: 6 × OD
  • BS EN 50525-3-41 compliant
Specifications

Cable Type

H07Z-R

Standard

BS EN 50525-3-41

Conductor Size

2.5 mm²

Number of Cores

1

Core Colour

Black

Conductor Class

Class 2 stranded copper

Stranding

7/0.67 mm

Voltage Rating

450/750V

Temperature Range

0°C to +90°C

Sheath Material

Low Smoke Zero Halogen (LSZH)

Overall Diameter

3.65 mm

Min. Bending Radius (Fixed)

6 × overall diameter

Flame Retardancy

BS EN 60332-1-2

Weight

33 kg/km
