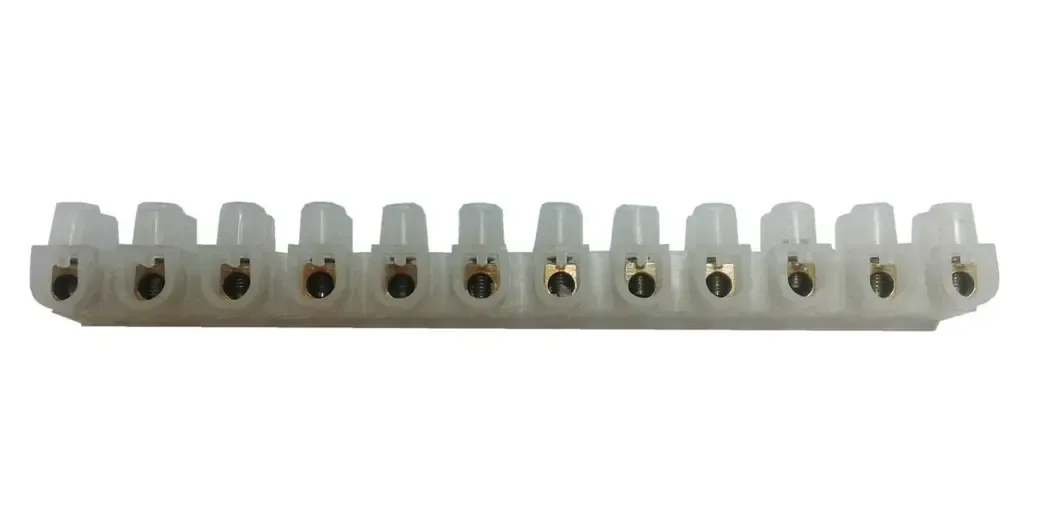

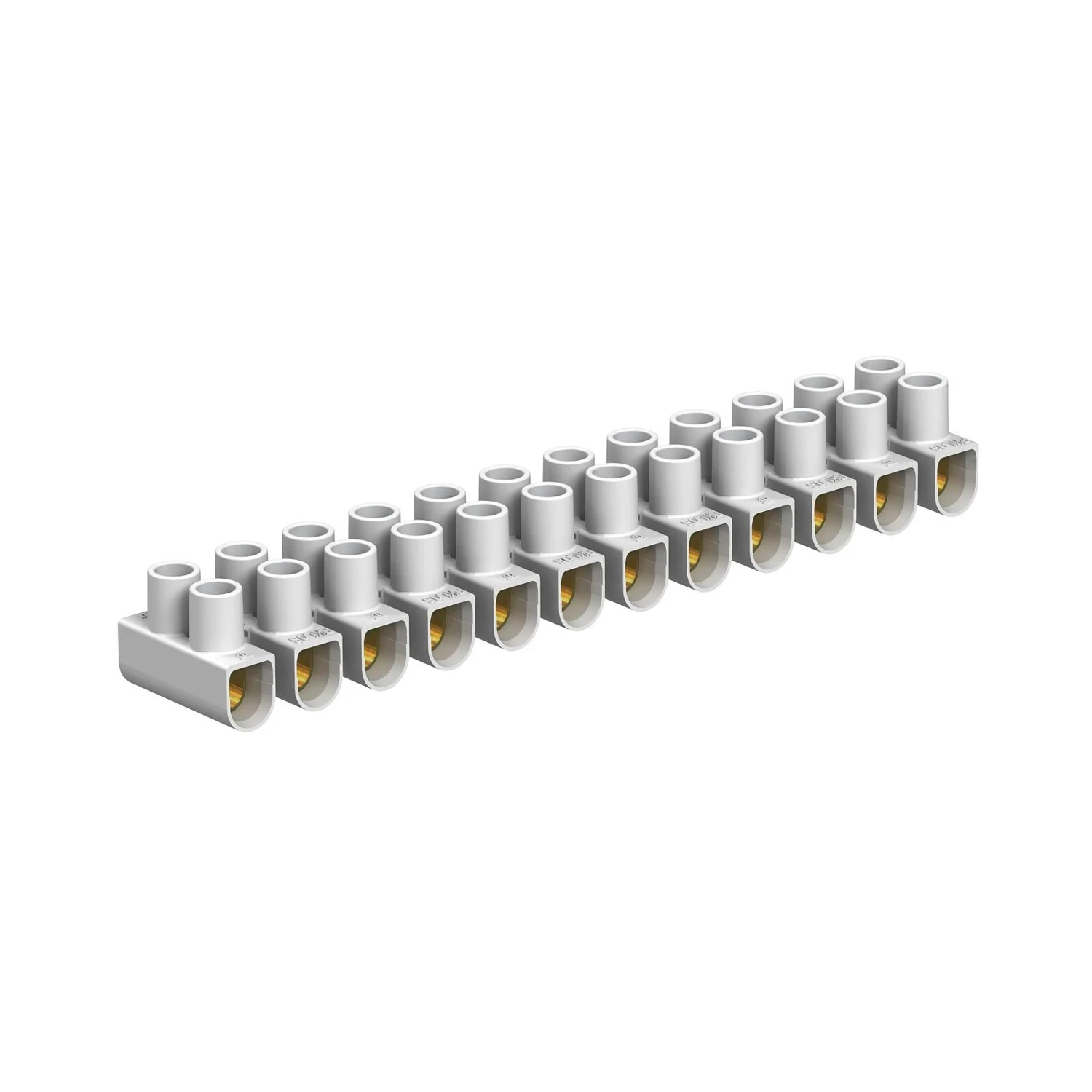

Strip Terminal Block 32A 12 Way 1.0-4.0mm²

Photo is representative

Strip Terminal Block 32A 12 Way 1.0-4.0mm²

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SC5
GTIN 4012195702627
Stock status: In stock

priced individually

More arriving soon

Net price: £0.90

Gross price

£1.09

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

12-way screw terminal strip from OBO. Individual terminals are detachable from the strip using twist-and-pull — useful when you need to break down the strip on site. Designed for direct mounting with captive upward screw.

Accepts solid, stranded and fine-stranded conductors without ferrules. Side connection position, 0.4 Nm tightening torque.

  • 32A, 450V
  • 1.0–4.0mm² conductor range (solid, stranded, fine-stranded)
  • 12 poles, screw connection
  • Polypropylene body, steel terminals
  • Temp range: –5°C to +80°C
Specifications

Nominal Current

32 A

Nominal Voltage

450 V

Poles

12

Conductor Range (Solid)

1.0–4.0 mm²

Conductor Range (Stranded)

1.0–4.0 mm²

Conductor Range (Fine-stranded, no ferrule)

1.0–4.0 mm²

Connection Type

Screw connection

Tightening Torque

0.4 Nm

Body Material

Polypropylene

Terminal Material

Steel

Screw Material

Steel, electrogalvanised

Temperature Range

-5°C to +80°C

Dimensions (L x W x H)

95 x 16.6 x 13 mm

Standard

EN 60998
