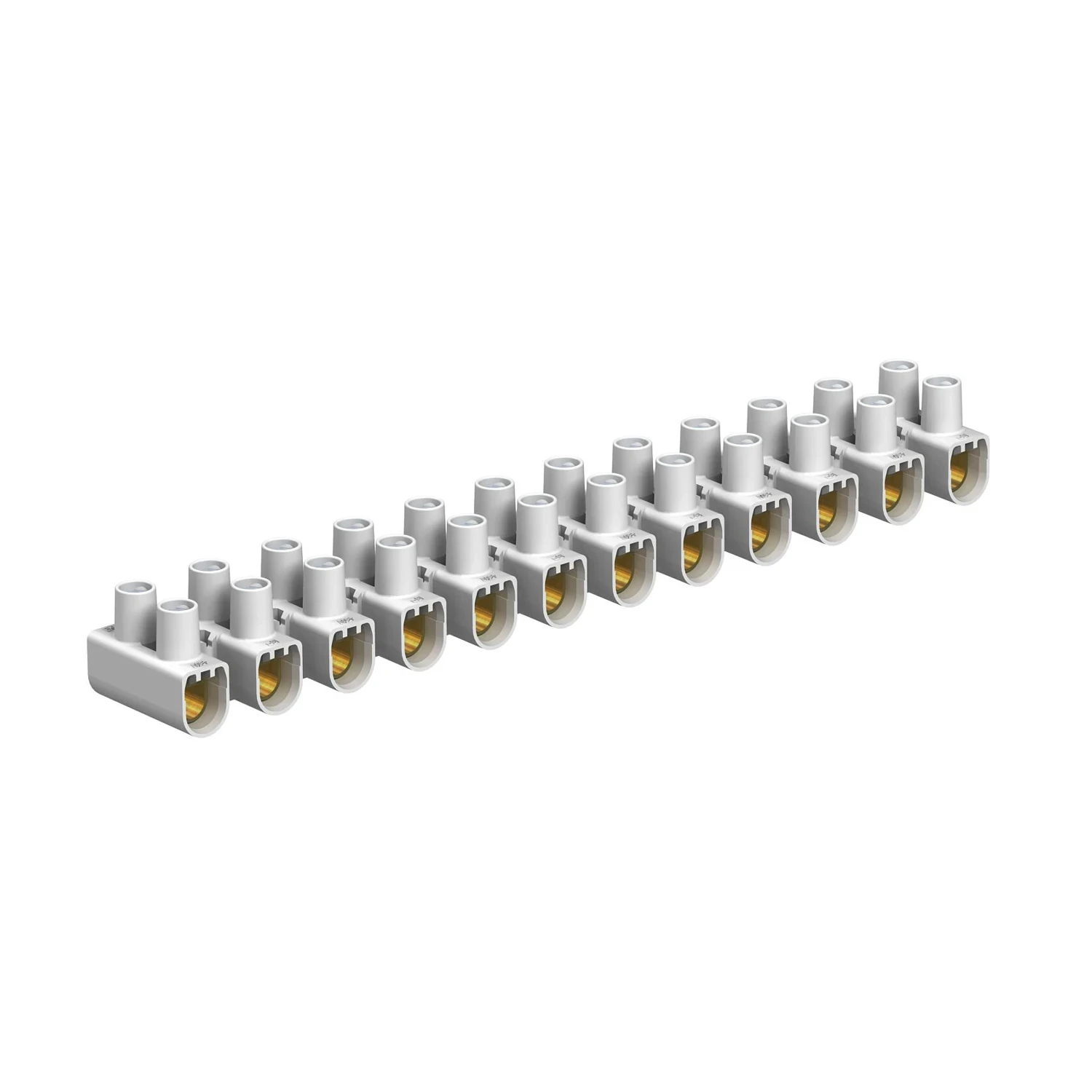

Strip Terminal Block 76A 12 Way 4-16mm²

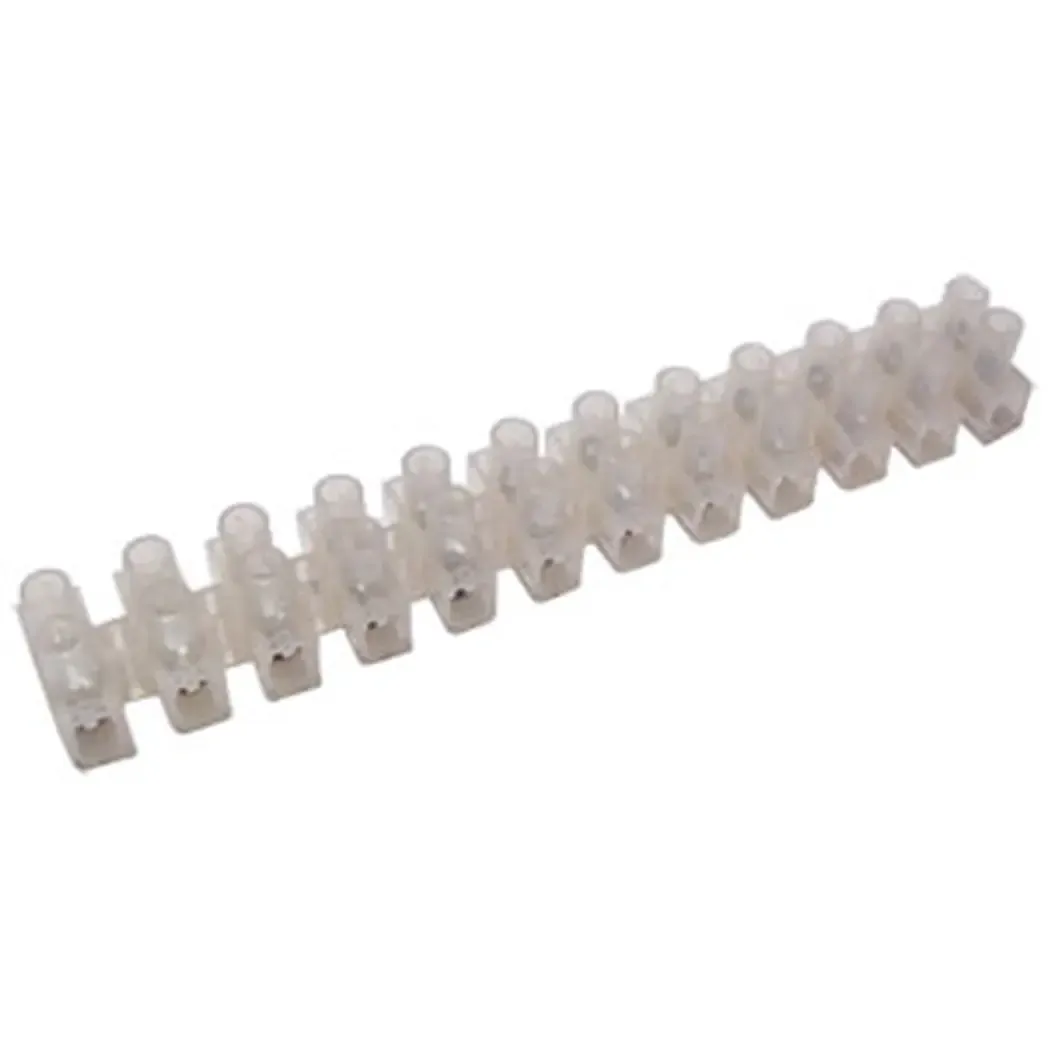

Photo is representative

Strip Terminal Block 76A 12 Way 4-16mm²

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SC30
GTIN 4012195702443
Stock status: In stock

priced individually

More arriving soon

Net price: £3.14

Gross price

£3.76

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

OBO 12-pole screw connection terminal strip in polypropylene. Rated at 76A and 450V with a 16mm² nominal cross-section. For direct mounting with side connection position.

Individual terminals are detachable from the strip using the “twist’n’pull” mechanism. Captive upward screws with electrogalvanised steel terminals and screws.

  • Conductor range: 4–16mm² single-wire, 4–10mm² multi-wire, 4–6mm² flexible (without ferrule), 4–16mm² fine-wire with ferrule
  • Tightening torque: 1.2 Nm
  • Temperature range: -5°C to +80°C
  • Dimensions: 175 x 25 x 20.7 mm
Specifications

Nominal Current

76 A

Nominal Voltage

450 V

Nominal Cross-Section

16 mm²

Poles

12

Connection Type

Screw connection

Terminal Material

Steel, electrogalvanised

Body Material

Polypropylene

Colour

White

Mounting Type

Direct mounting

Connection Position

Side

Conductor Range, Single-Wire

4–16 mm²

Conductor Range, Multi-Wire

4–10 mm²

Conductor Range, Fine-Wire with Ferrule

4–16 mm²

Conductor Range, Fine-Wire without Ferrule

4–6 mm²

Tightening Torque

1.2 Nm

Temperature Range

-5°C to +80°C

Dimensions (L x W x H)

175 x 25 x 20.7 mm

Drill Hole Spacing

15 mm

Standard

EN 60998
