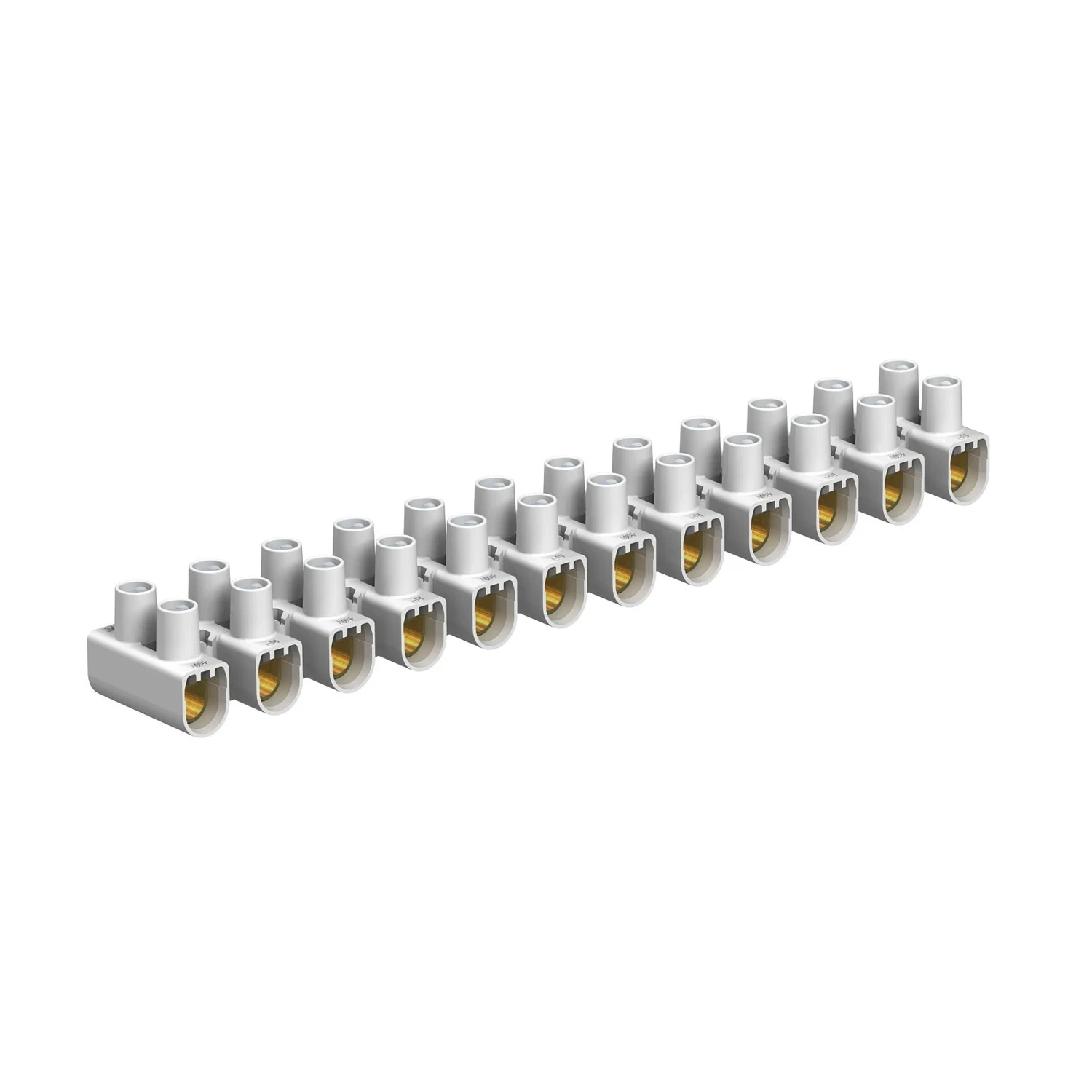

Strip Terminal Block 57A 12 Way 2.5-10mm²

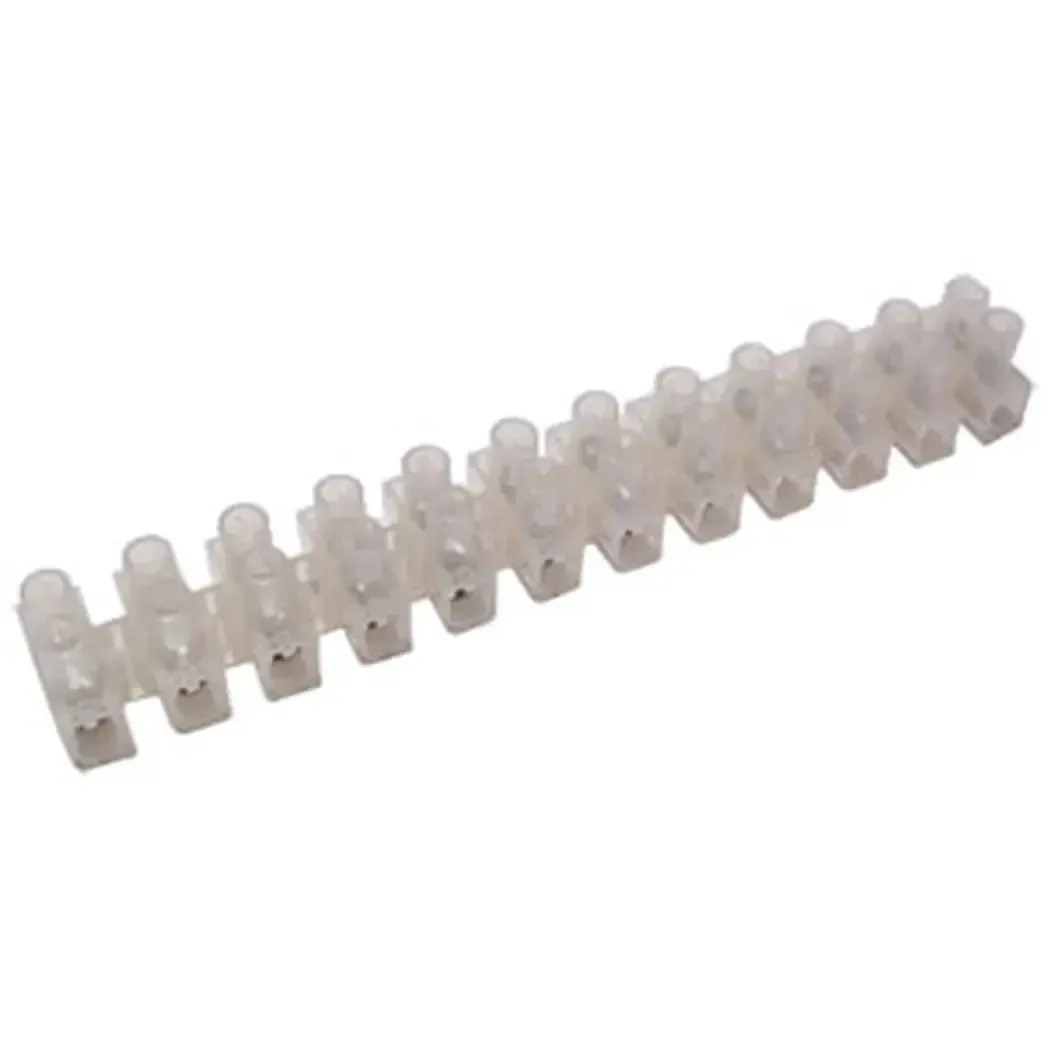

Photo is representative

Strip Terminal Block 57A 12 Way 2.5-10mm²

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SC15
GTIN 4012195702504
Stock status: In stock

priced individually

More arriving soon

Net price: £1.44

Gross price

£1.73

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Polypropylene strip terminal block from OBO (type 76 CE WS/ORLK 10). Direct-mount, 12-pole, screw connection. Individual terminals are detachable from the strip using twist’n’pull — handy where you need to break the strip down on site.

Suited for solid, stranded, and fine-stranded conductors. Steel terminals and screws, electrogalvanised.

  • 57A nominal current, 450V nominal voltage
  • Solid/single-wire: 2.5–10mm² | Flexible/fine-stranded: 2.5–6mm²
  • Screw torque: 0.8 Nm
  • Temp range: -5°C to +80°C
  • Dimensions: 134 × 23 × 17mm
Specifications

Nominal Current

57 A

Nominal Voltage

450 V

Poles

12

Conductor Range (Solid)

2.5–10 mm²

Conductor Range (Flexible/Fine-wire)

2.5–6 mm²

Connection Type

Screw connection

Screw Tightening Torque

0.8 Nm

Mounting Type

Direct mounting

Body Material

Polypropylene

Terminal Material

Steel

Screw Material

Steel, electrogalvanised

Temperature Range

-5°C to +80°C

Dimensions (L x W x H)

134 x 23 x 17 mm

Tested To

EN 60998
