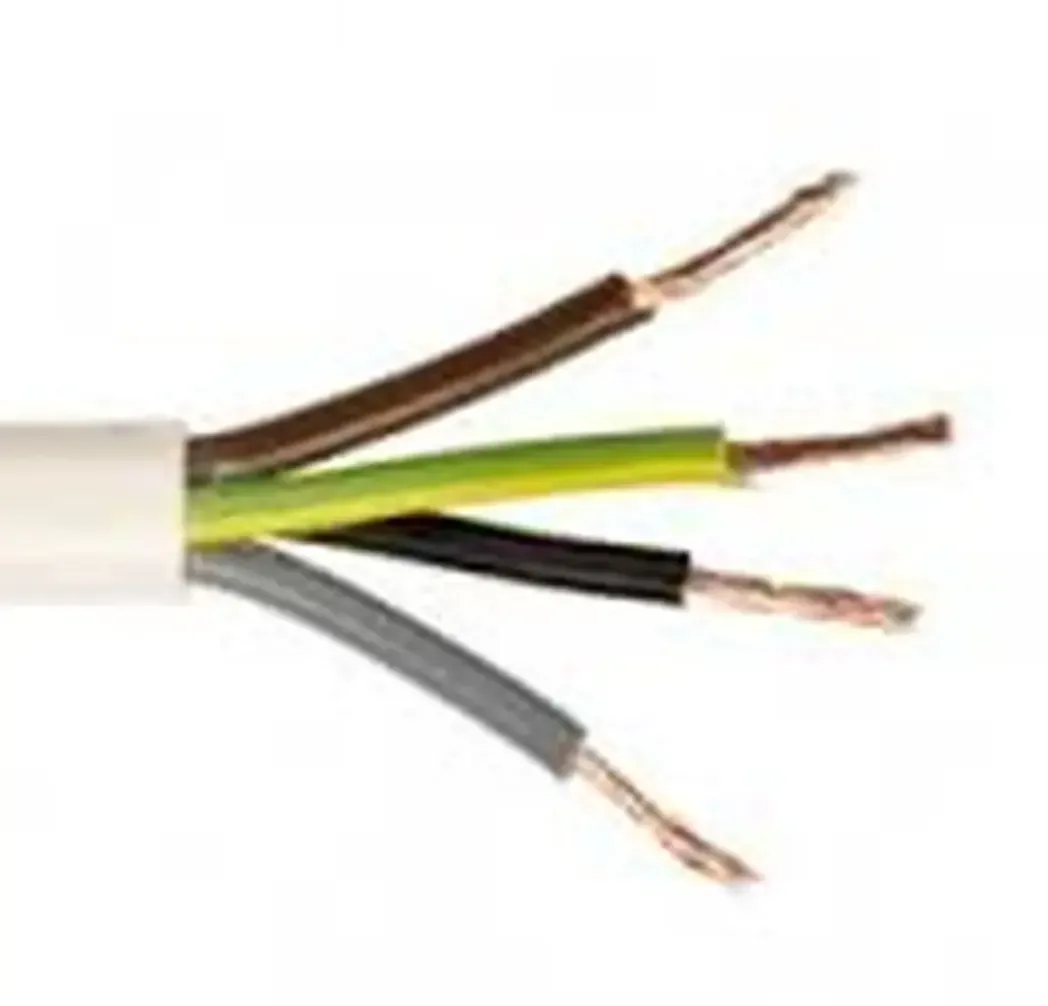

4 Core 2.5mm LSZH Flexible Cable H05Z1Z1-F 300 500V White Sheath

Photo is representative

4 Core 2.5mm LSZH Flexible Cable H05Z1Z1-F 300 500V White Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425PVC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.83

Gross price

£3.40

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4 core 2.5mm² LSZH flex rated to H05Z1Z1-F. Designed for fixed indoor wiring in public areas — hospitals, airports, shopping centres — and pendant lighting runs where low smoke and zero halogen performance is required.

LSZH insulation and sheath meets BS EN 60332-1-2 flame retardancy. Core colours are Brown, Black, Grey, and Green/Yellow.

  • Voltage: 300/500V
  • Conductor: Class 5 flexible stranded copper, 50⁄0.25 stranding
  • OD: 11.3 mm | Gland size: 20
  • Temp range: -5°C to +70°C
  • Min bend radius: 5 × OD
Specifications

Conductor Size

2.5 mm²

Number of Cores

4

Voltage Rating

300/500V

Conductor Type

Class 5 flexible stranded copper

Stranding

50/0.25

Insulation Material

Low Smoke Zero Halogen (LSZH)

Sheath Material

Low Smoke Zero Halogen (LSZH)

Sheath Colour

White

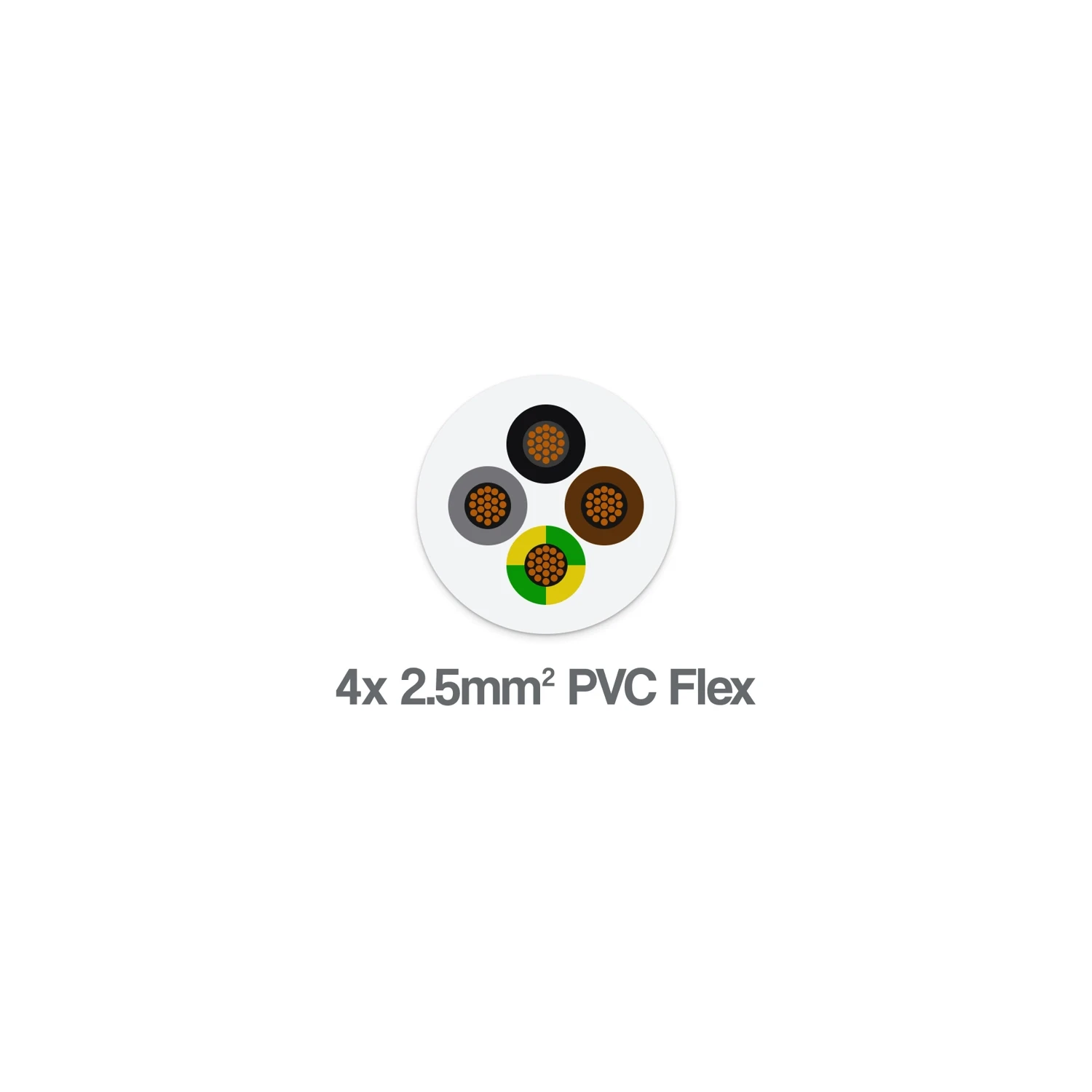

Core Colours

Brown, Black, Grey, Green/Yellow

Overall Diameter

11.3 mm

Gland Size

20

Min Bending Radius

5 × Overall Diameter

Temperature Range

-5°C to +70°C

Weight

220 kg/km

Standards

H05Z1Z1-F, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50525-3-11
