4 Core 1.5mm2 LSZH Flexible Cable Brown Black Grey Earth White Sheath 300 500V

Photo is representative

4 Core 1.5mm2 LSZH Flexible Cable Brown Black Grey Earth White Sheath 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415PVC3PH
GTIN —
Stock status: Out of stock

priced per metre

Net price: £1.36

Gross price

£1.63

4-core 1.5mm² LSZH flexible cable to BS EN 50525-3-11. Rated 300/500V with Class 5 stranded copper conductors and LSZH insulation and sheath — suited to indoor fixed wiring in public areas including hospitals, shopping centres, and airports where low smoke and zero halogen is required.

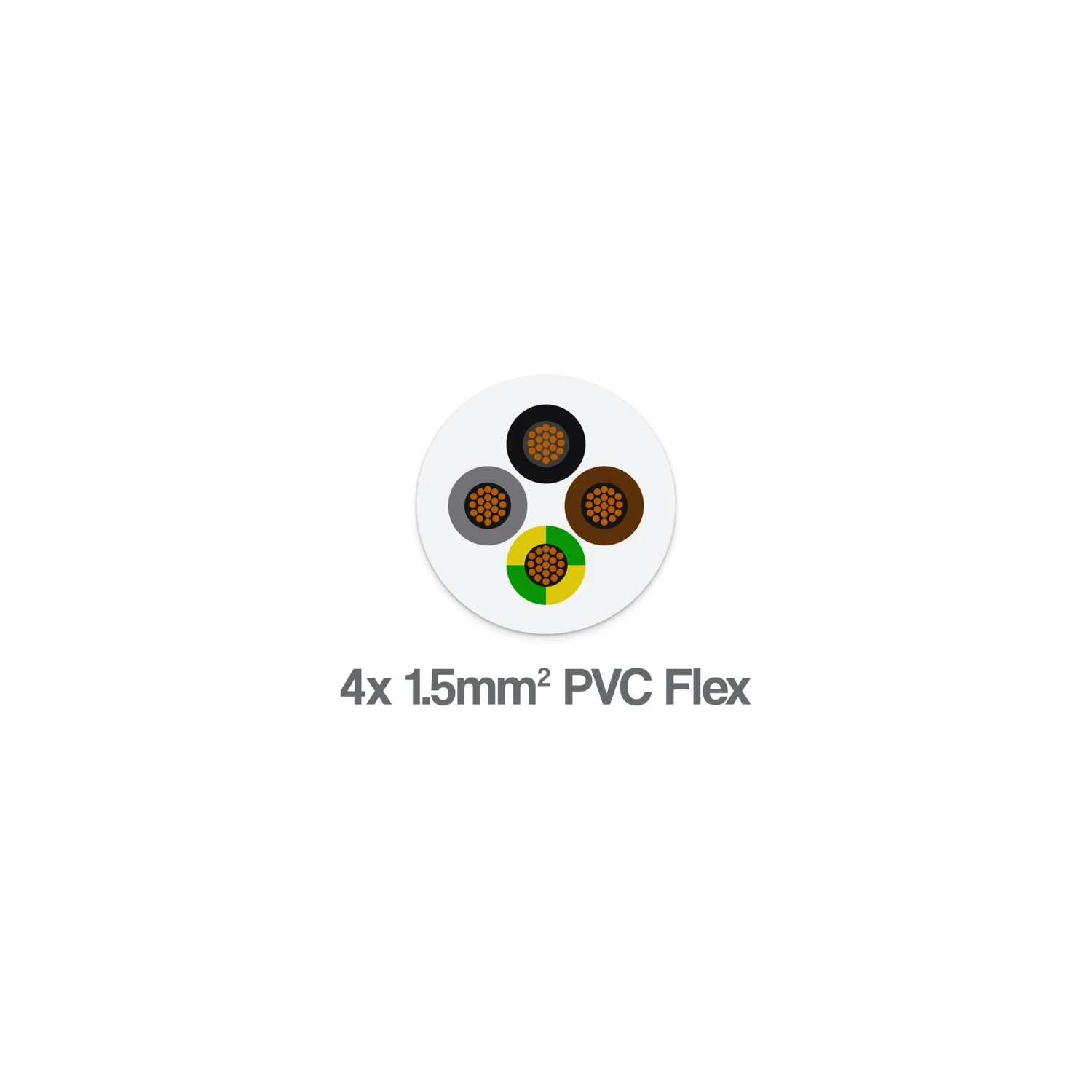

Core colours are brown, black, grey, and green/yellow. White outer sheath.

  • Conductor: 30⁄0.25mm Class 5 stranded copper
  • OD: 10mm | Gland size: 20S
  • Min. bending radius: 5 x OD
  • Temp range: -5°C to +70°C
  • Flame retardancy: BS EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Number of Cores

4

Voltage Rating

300/500 V

Conductor Type

Class 5 flexible stranded copper

Stranding

30/0.25 mm

Insulation Material

Low Smoke Zero Halogen (LSZH)

Sheath Material

Low Smoke Zero Halogen (LSZH)

Sheath Colour

White

Core Colours

Brown, Black, Grey, Green/Yellow

Overall Diameter

10 mm

Gland Size

20S

Minimum Bending Radius

5 x overall diameter

Temperature Range

-5°C to +70°C

Standards

H05Z1Z1-F, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50525-3-11

Weight

150 kg/km
