H07RN-F 3 Core 6mm2 Flexible Rubber Cable Black 0.6 1kV

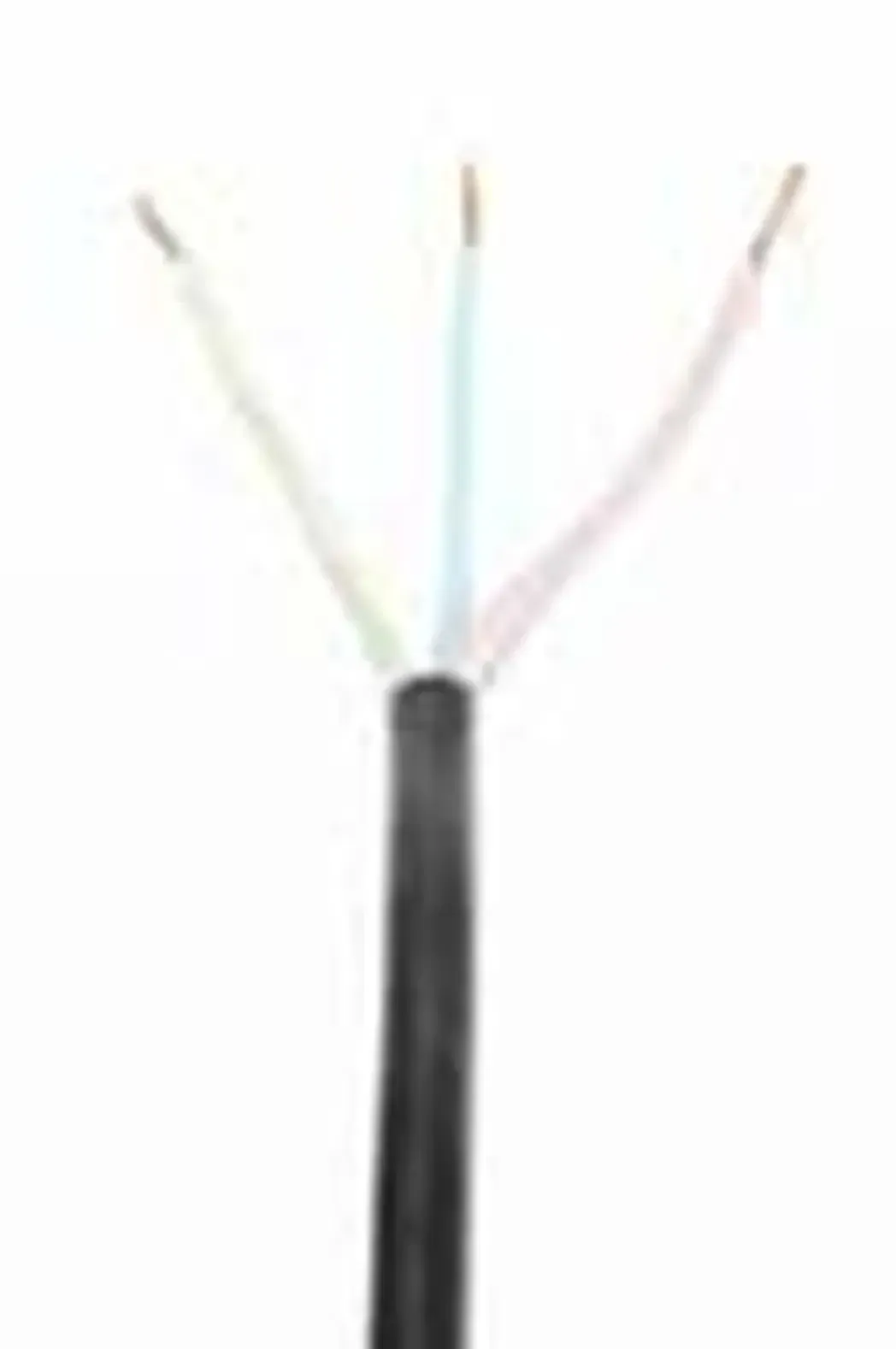

Photo is representative

H07RN-F 3 Core 6mm2 Flexible Rubber Cable Black 0.6 1kV

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 36TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £5.65

Gross price

£6.78

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

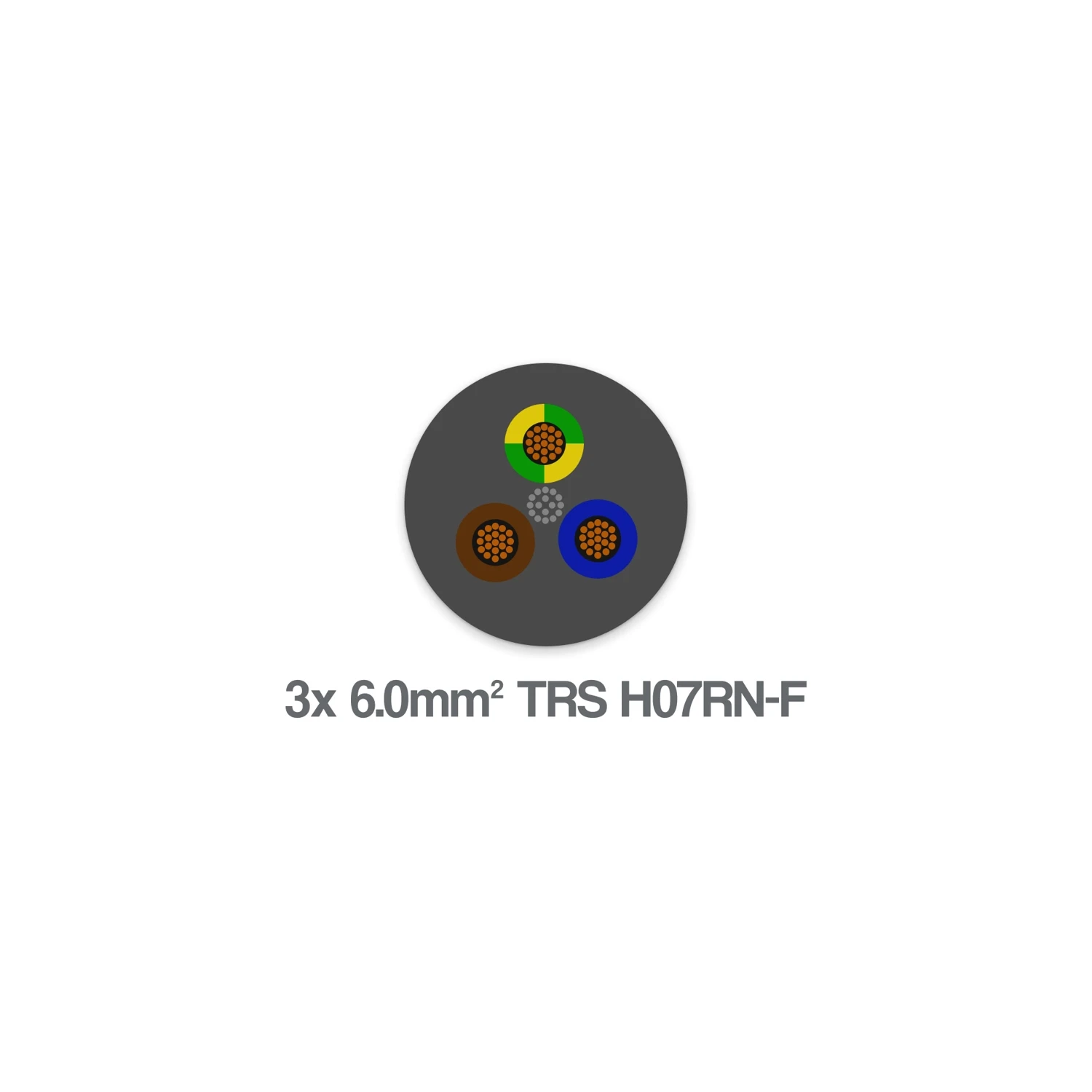

TRS flexible rubber cable in 3 core 6mm². EPR insulated, polychloroprene (CR) sheathed. Built for tough environments — sites, ports, water treatment, industrial machinery.

Class 5 stranded copper conductors (84⁄0.30). Handles flexing down to -15°C and fixed installs down to -30°C.

  • Cores: Brown, Blue, Green/Yellow
  • OD: 14.1–18 mm
  • Bend radius: 4 × OD fixed, 6 × OD flexing
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

6 mm²

Number of Cores

3

Stranding

84/0.30

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Blue, Green/Yellow

Voltage Rating (Fixed)

0.6/1 kV

Voltage Rating (Flexing)

450/750 V

Overall Diameter

14.1–18 mm

Weight

495 kg/km

Temp Range (Fixed)

-30°C to +90°C

Temp Range (Flexing)

-15°C to +90°C

Bend Radius (Fixed)

4 × overall diameter

Bend Radius (Flexing)

6 × overall diameter

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
