H07RN-F 3 Core 16mm2 Flexible Rubber Cable Black 0.6 1kV

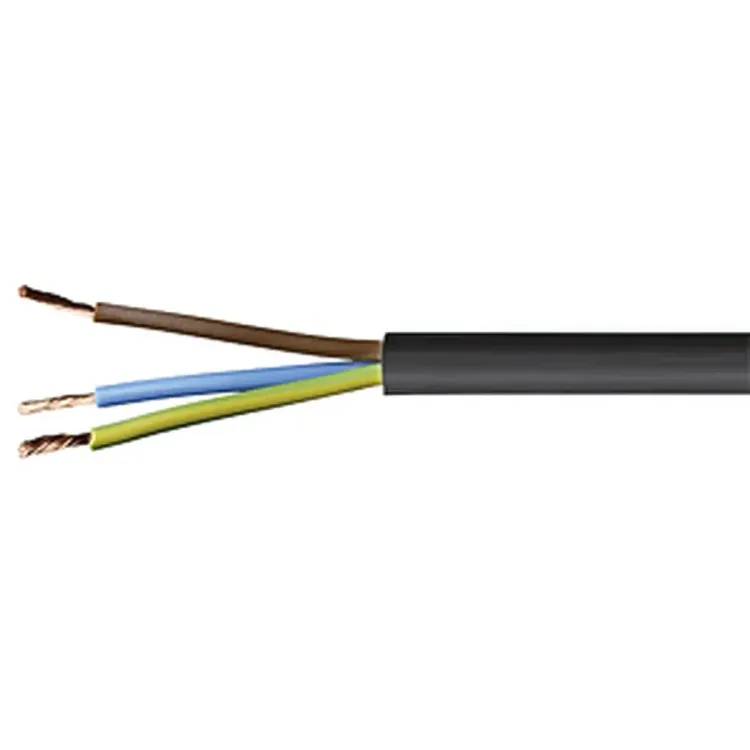

Photo is representative

H07RN-F 3 Core 16mm2 Flexible Rubber Cable Black 0.6 1kV

Product Information

Stock Code 316TRS7
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £15.39

Gross price

£18.47

This item is not available to order online. Contact us to arrange supply.

3 core 16mm² H07RN-F flexible cable for site supplies, mobile plant, and harsh environments including ports, water treatment plants, and industrial applications.

Class 5 stranded copper conductors with EPR insulation and polychloroprene (CR) outer sheath. Handles mechanical stress, water, and weather. Rated for use down to -30°C fixed or -15°C flexing.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • OD: 21.8–27.6 mm
  • Bending radius: 4 x OD fixed, 6 x OD flexing
  • Core colours: Brown, Blue, Green/Yellow
  • Standard: BS EN 50525-2-21
Specifications

Conductor Size

16 mm²

Number of Cores

3

Stranding

126/0.40

Conductor Type

Class 5 flexible stranded copper

Insulation

Ethylene Propylene Rubber (EPR)

Outer Sheath

Polychloroprene Rubber (CR)

Sheath Colour

Black

Core Colours

Brown, Blue, Green/Yellow

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Overall Diameter

21.8–27.6 mm

Bending Radius (Fixed)

4 x overall diameter

Bending Radius (Flexing)

6 x overall diameter

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Weight

1090 kg/km

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
