H07RN-F TRS 3 Core 10mm² Flexible Rubber Cable Black 0.6 1kV

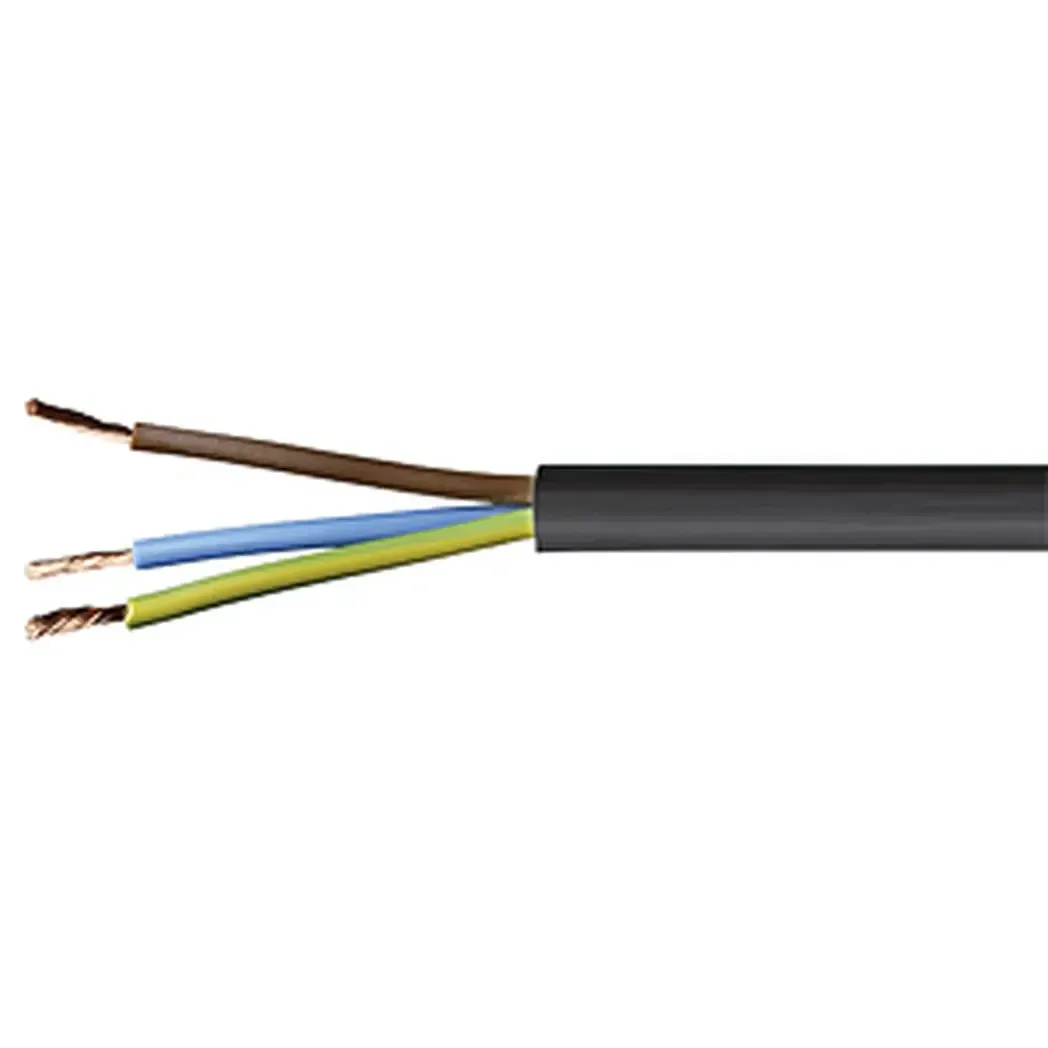

Photo is representative

TRS H07RN-F 3 Core 10mm² Flexible Rubber Cable Black 0.6 1kV

Product Information

Stock Code 310TRS7
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £10.27

Gross price

£12.33

This item is not available to order online. Contact us to arrange supply.

H07RN-F flexible mains cable, 3 core 10mm². EPR insulation, polychloroprene rubber (CR) outer sheath in black. Class 5 stranded copper conductors (80⁄0.40).

Rated for work sites, mobile power supplies, ports, water treatment, sewage installations and harsh industrial environments. Handles both fixed and flexing applications.

  • Voltage: 0.6/1kV (fixed), 450/750V (flexing)
  • Temp range: -30°C to +90°C fixed, -15°C to +90°C flexing
  • OD: 19.1mm–24.2mm
  • Core colours: Brown, Blue, Green/Yellow
  • Flame retardant to IEC/EN 60332-1-2
Specifications

Conductor Size

10mm²

Number of Cores

3

Stranding

80/0.40

Conductor Type

Class 5 flexible stranded copper

Insulation Material

Ethylene Propylene Rubber (EPR)

Outer Sheath Material

Polychloroprene Rubber (CR)

Sheath Colour

Black

Voltage Rating (Fixed)

0.6/1kV

Voltage Rating (Flexing)

450/750V

Temperature Range (Fixed)

-30°C to +90°C

Temperature Range (Flexing)

-15°C to +90°C

Min Bending Radius (Fixed)

4 x overall diameter

Min Bending Radius (Flexing)

6 x overall diameter

Mean Overall Diameter

19.1mm – 24.2mm

Weight

880kg/km

Core Colours

Brown, Blue, Green/Yellow

Flame Retardancy

IEC/EN 60332-1-2

Standards

BS EN 50525-2-21, BS EN/IEC 60332-1-2, BS EN/IEC 60228
