NYM-J 3 Core 6mm2 PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 3 Core 6mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 36NYM
GTIN —
Stock status: In stock

priced per meter

Net price: £4.73

Gross price

£5.68

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

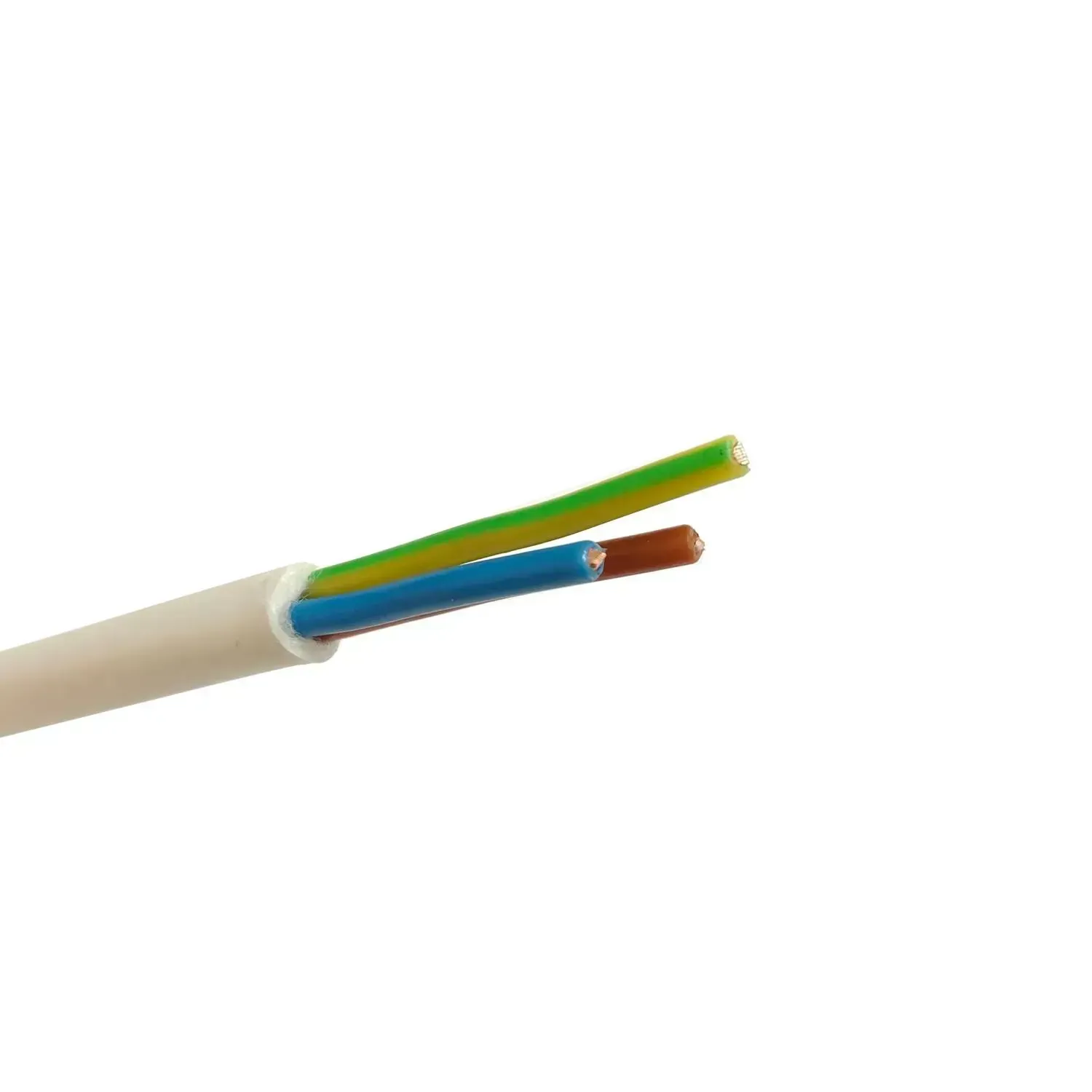

NYM-J 3 core 6mm² PVC cable supplied on a 500m drum. Suitable for fixed wiring in dry, moist or wet areas — under plaster, in concrete, and indoor or outdoor industrial and domestic installations.

Solid Class 1 copper conductors with PVC insulation and sheath to IEC 60332-1-2. Brown, blue, and green/yellow core ID.

  • Voltage rating: 300/500V
  • Current carrying capacity: 43A
  • DC resistance at 20°C: 3.08 Ω/km
  • Operating temp: -30°C to +70°C (do not install below 0°C)
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Conductor Size

6 mm²

Number of Cores

3

Conductor Type

Solid copper, Class 1

Stranding

1/2.76 mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500V

Current Carrying Capacity

43A

DC Resistance at 20°C

3.08 Ω/km

AC Resistance at 70°C

6 Ω/km

3-Phase AC Voltage Drop

6.8 mV/A/m

Operating Temperature

-30°C to +70°C

Installation Temperature

Not below 0°C

Weight

330 kg/km

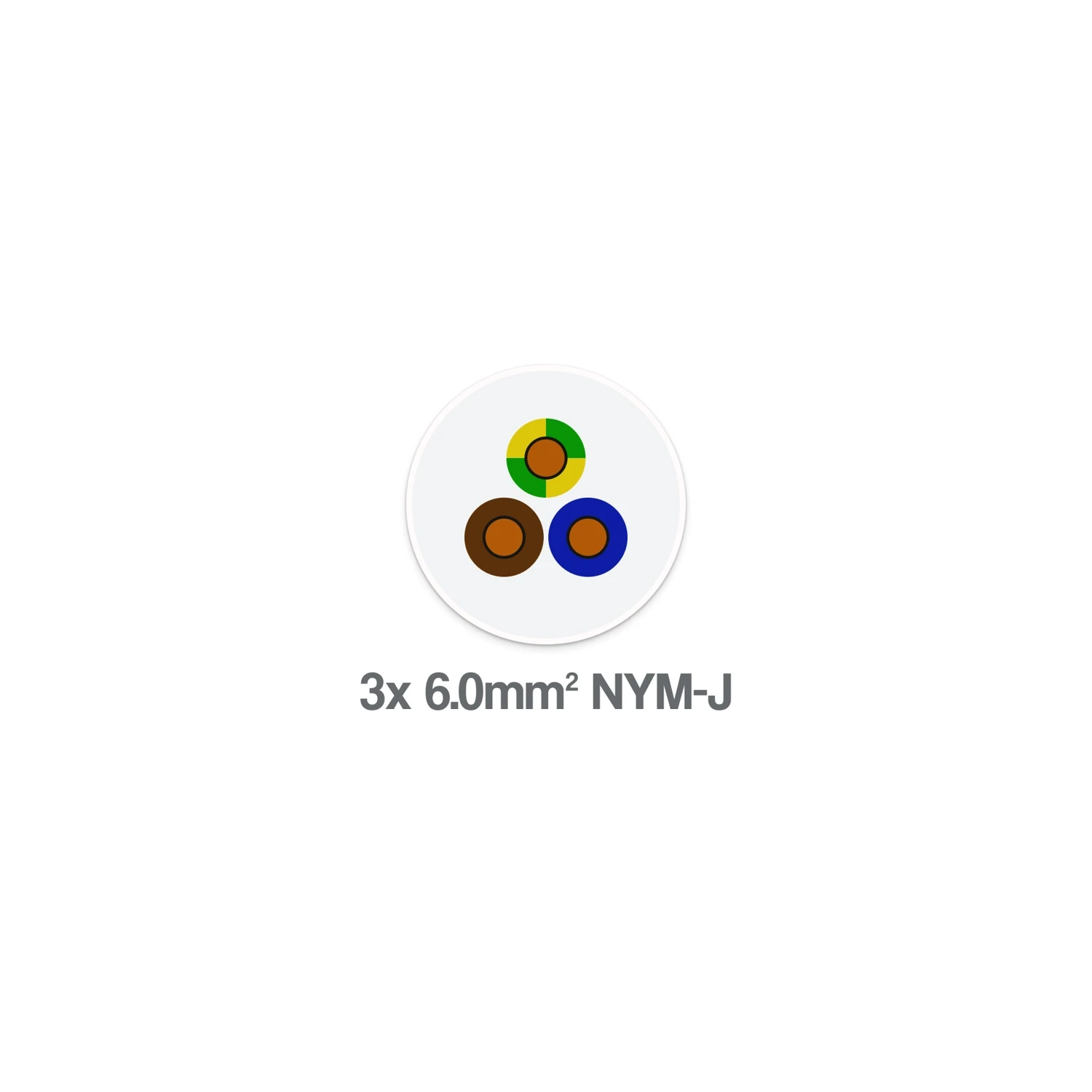

Core Identification

Brown, Blue, Green/Yellow

Cable Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
