NYM-J 3 Core 1.5mm2 PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 3 Core 1.5mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315NYM5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.26

Gross price

£1.51

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 3 core 1.5mm² PVC wiring cable supplied on a 500m drum. Solid copper conductors (Class 1), PVC insulation and sheath to IEC 60332-1-2. Rated 300/500V.

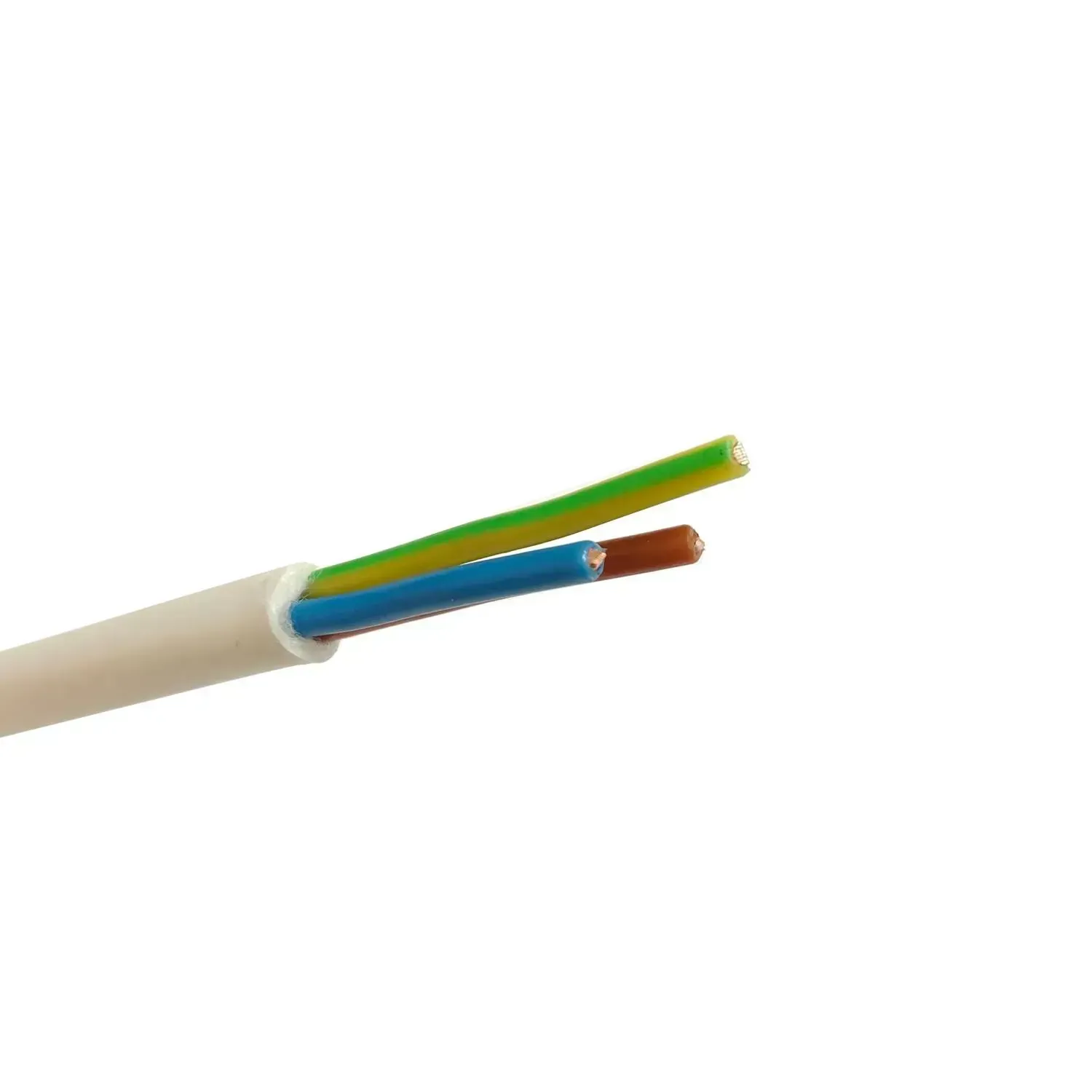

Suited for fixed wiring in dry, moist or wet locations — including under plaster and in concrete. Cores identified brown, blue, green/yellow.

  • Current carrying capacity: 19A
  • Operating temp: -30°C to +70°C (install at 0°C and above)
  • DC resistance at 20°C: 12.1 Ω/km
  • 3-phase AC voltage drop: 27 mV/A/m
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Conductor Size

1.5 mm²

Number of Cores

3

Conductor Material

Solid copper, Class 1

Stranding

1/1.38 mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500V

Current Carrying Capacity

19A

Operating Temperature

-30°C to +70°C

Minimum Installation Temperature

0°C and above

DC Resistance at 20°C

12.1 Ω/km

AC Resistance at 70°C

1.5 Ω/km

3-Phase AC Voltage Drop

27 mV/A/m

Single Phase AC Voltage Drop

31 mV/A/m

Inductance

0.329 mH/km

Weight

120 kg/km

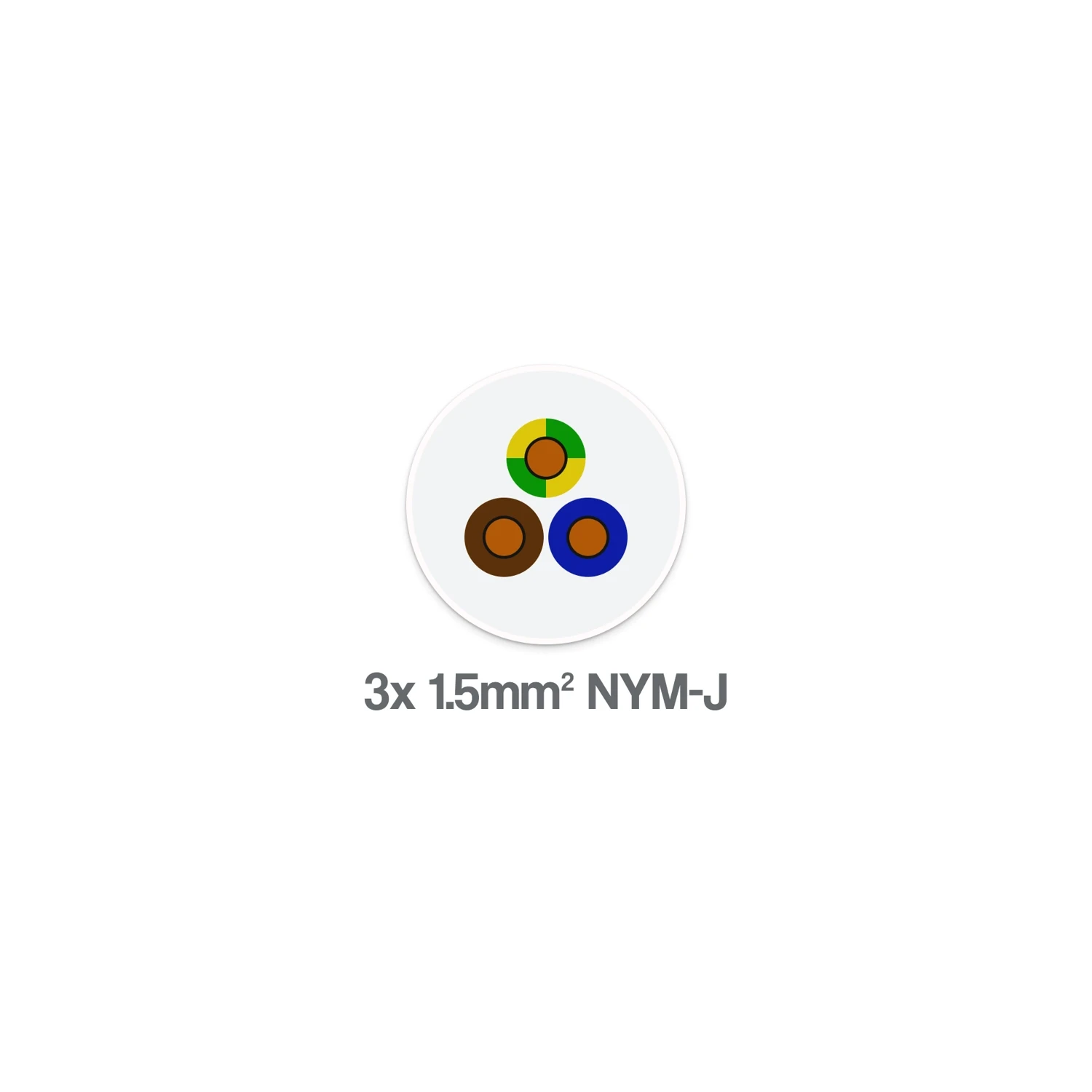

Core Identification

Brown, Blue, Green/Yellow

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
