NYM-J 3 Core 2.5mm PVC Wiring Cable 300 500V 500m Drum

Photo is representative

NYM-J 3 Core 2.5mm PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325NYM5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.94

Gross price

£2.33

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 3x2.5mm PVC insulated and sheathed wiring cable on a 500m drum. Rated 300/500V with solid Class 1 copper conductors. Suitable for fixed wiring in dry, moist or wet areas — under plaster, in concrete, indoor and outdoor installations.

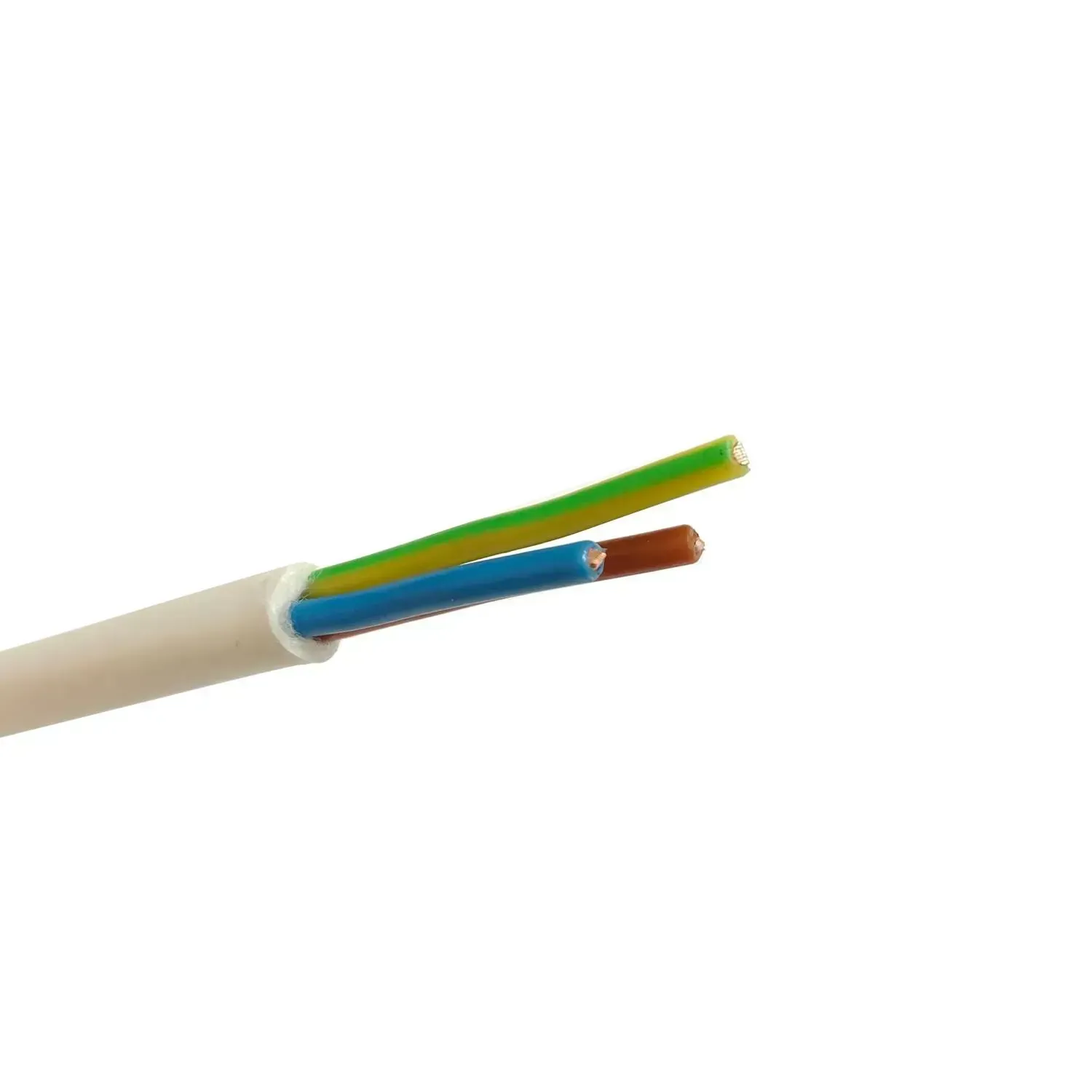

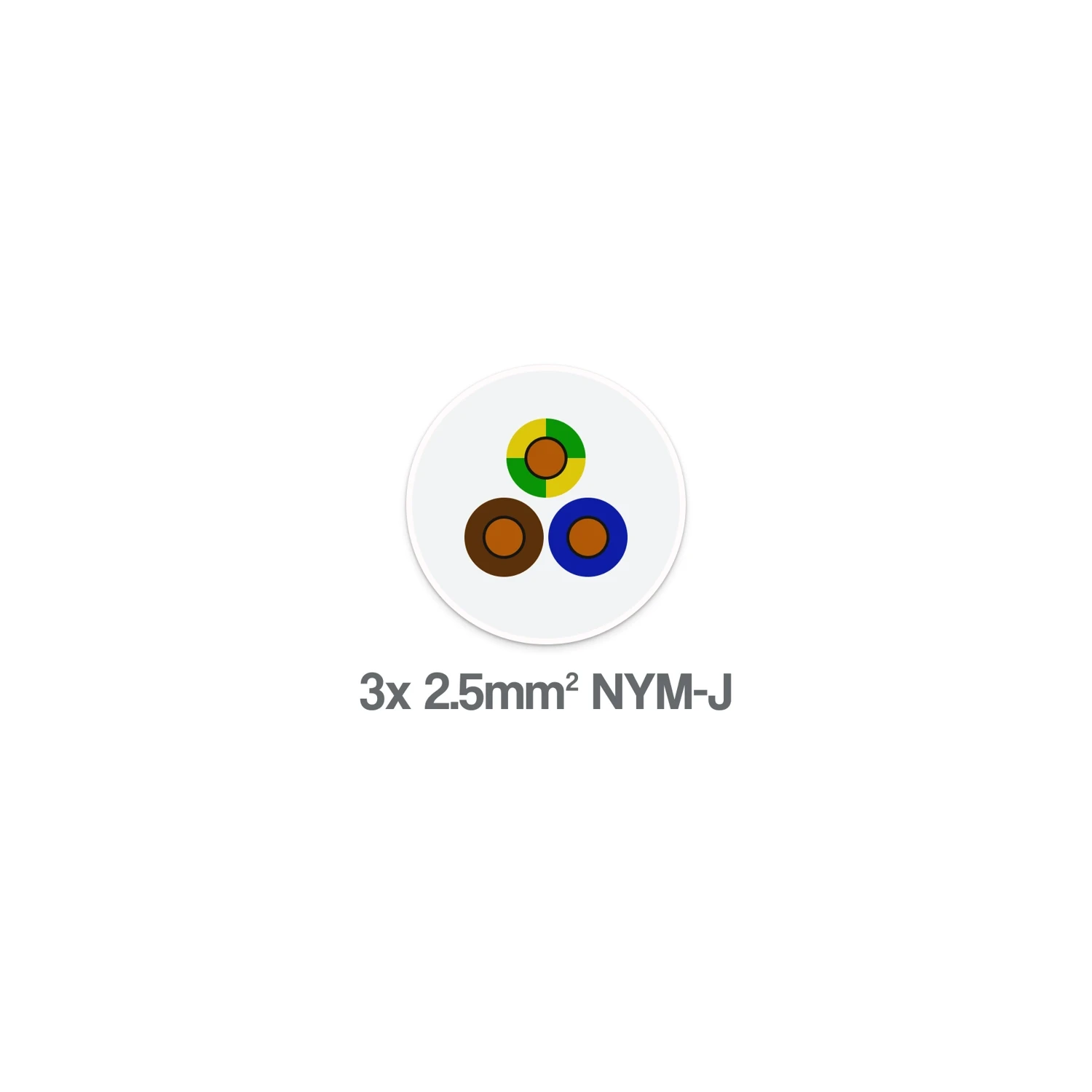

Cores identified Brown, Blue, Green/Yellow.

  • Current carrying capacity: 25A
  • Voltage drop (3-phase AC): 16 mV/A/m
  • Operating temp: -30°C to +70°C (min install temp: 0°C)
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Conductor Size

2.5 mm²

Number of Cores

3

Conductor Type

Solid copper, Class 1

Stranding

1/1.78 mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500 V

Current Carrying Capacity

25 A

DC Resistance at 20°C

7.41 Ω/km

AC Resistance at 70°C

2.5 Ω/km

Voltage Drop (3-phase AC)

16 mV/A/m

Voltage Drop (single-phase AC)

19 mV/A/m

Operating Temperature

-30°C to +70°C

Min Installation Temperature

0°C

Weight

165 kg/km

Core Identification

Brown, Blue, Green/Yellow

Cable Standard

BS EN 50265-2-1, IEC 60502, VDE 0250
