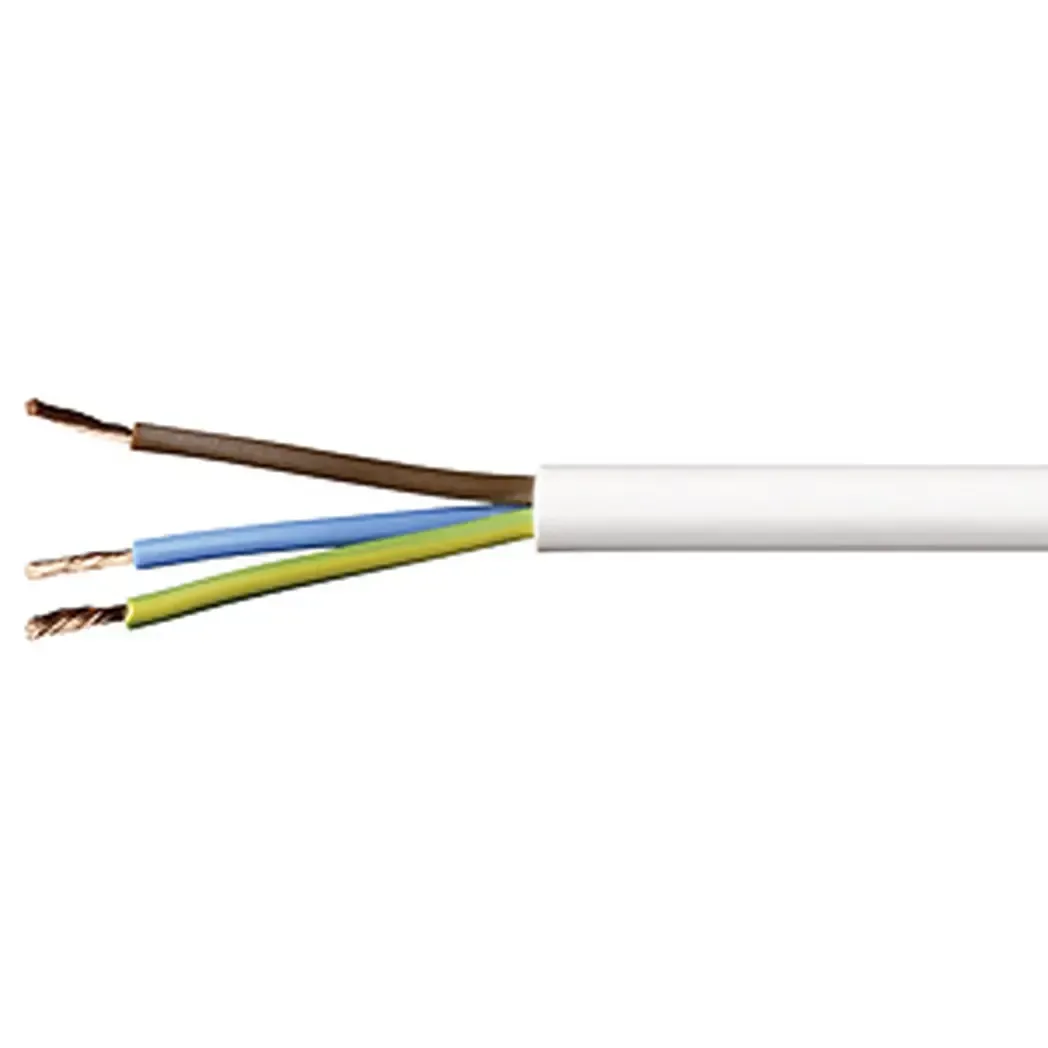

3 Core 2.5mm LSZH Flexible Cable H05Z1Z1-F 300 500V White Sheath 325PVC

Photo is representative

3 Core 2.5mm LSZH Flexible Cable H05Z1Z1-F 300 500V White Sheath 325PVC

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325PVC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.06

Gross price

£2.47

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

LSZH flexible cable for indoor fixed wiring where fire performance matters — hospitals, airports, shopping centres. Low smoke, zero halogen insulation and sheath throughout.

Rated H05Z1Z1-F to BS EN 50525-3-11, with Class 5 stranded copper conductors.

  • 300/500V rating

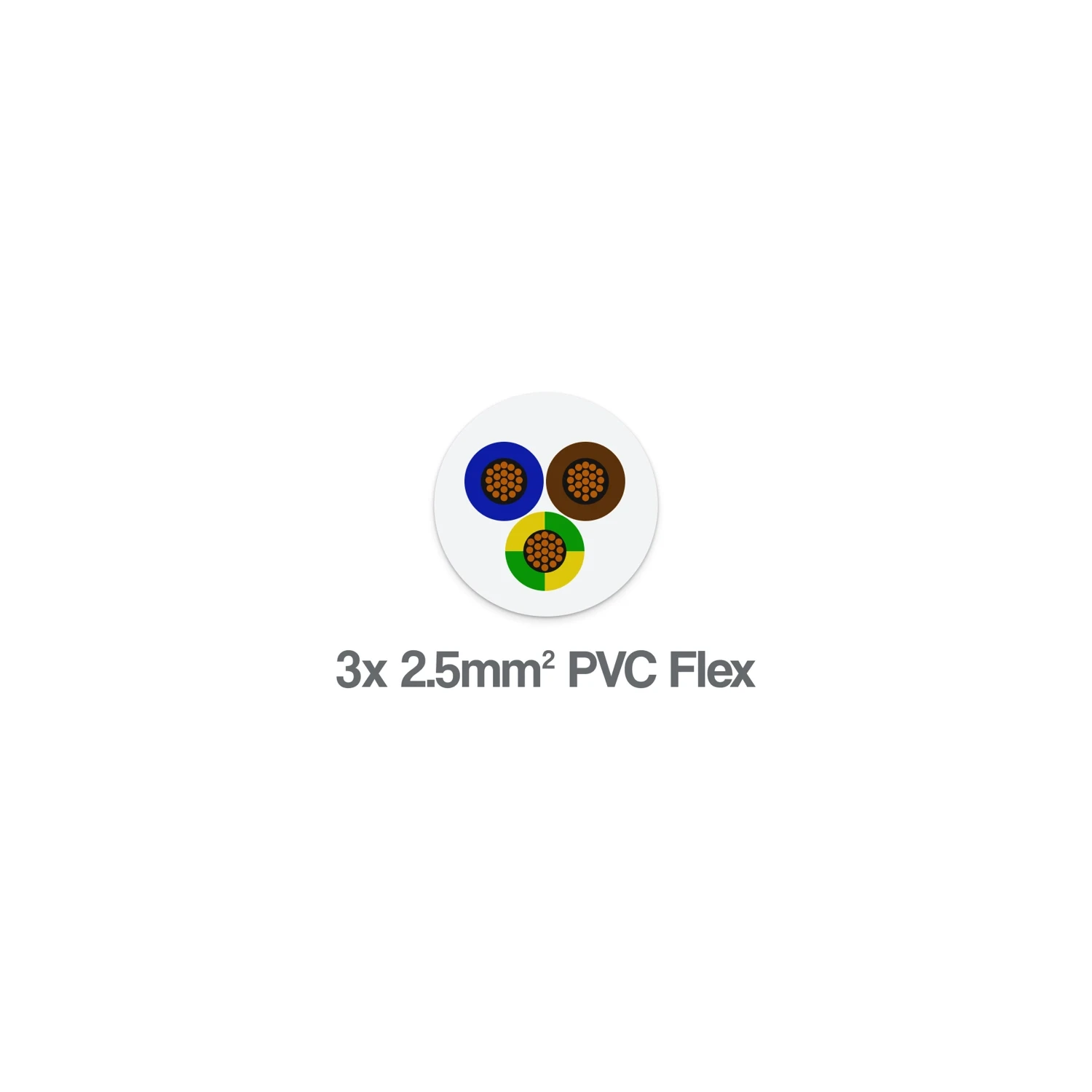

  • 3 cores: brown, blue, green/yellow
  • OD: 10.8 mm — suits 20S gland
  • Temp range: -5°C to +70°C
  • Min bend radius: 5 x OD
Specifications

Conductor Size

2.5 mm²

Number of Cores

3

Voltage Rating

300/500 V

Conductor Type

Class 5 flexible stranded copper

Stranding

50/0.25 mm

Insulation Material

LSZH

Sheath Material

LSZH

Sheath Colour

White

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

10.8 mm

Gland Size

20S

Temperature Range

-5°C to +70°C

Min Bending Radius

5 x overall diameter

Standards

H05Z1Z1-F, BS EN 50525-3-11, BS EN/IEC 60228, BS EN/IEC 60332-1-2
