3 Core 1.5mm H05Z1Z1-F LSZH Flexible Cable 300 500V White Sheath

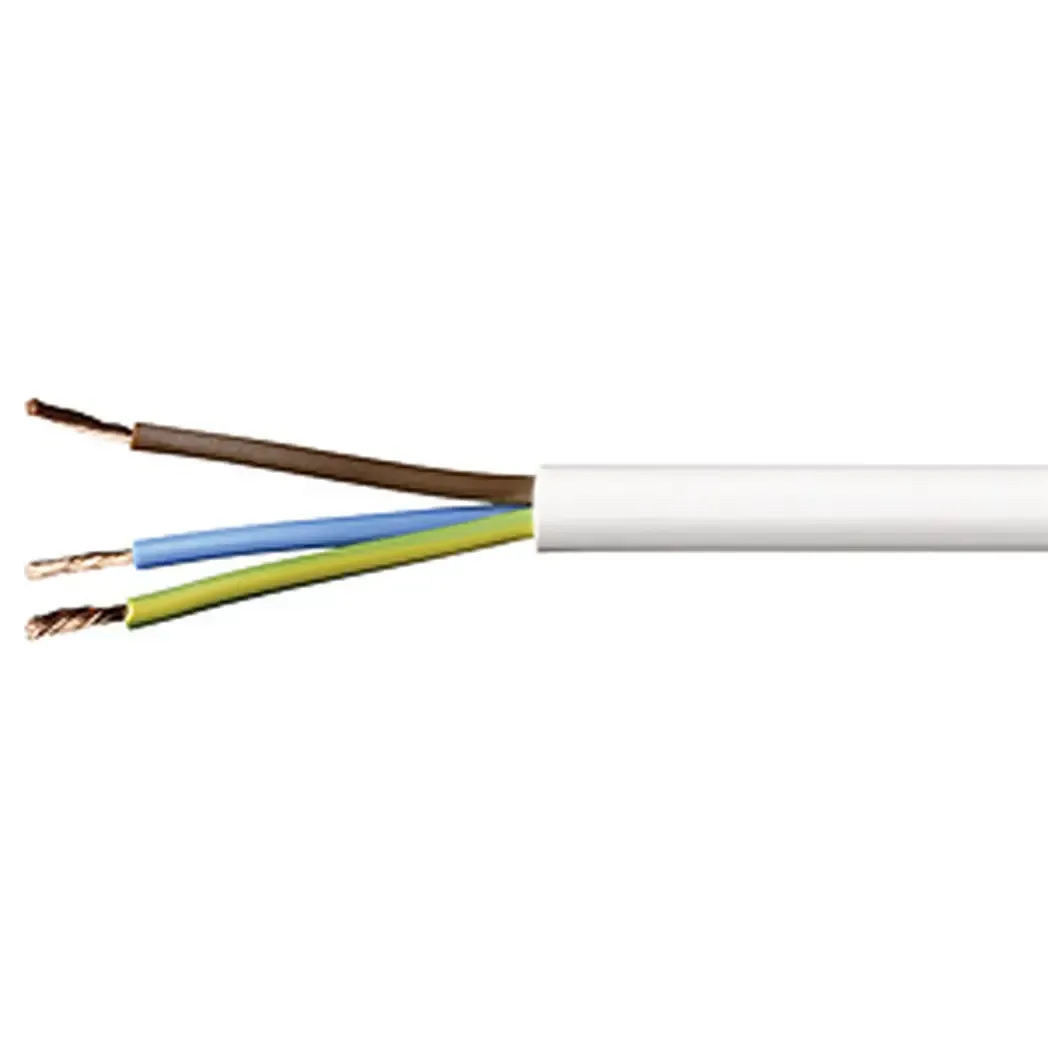

Photo is representative

3 Core 1.5mm H05Z1Z1-F LSZH Flexible Cable 300 500V White Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315PVC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.14

Gross price

£1.37

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

LSZH flex rated to H05Z1Z1-F (3183B). Class 5 stranded copper conductors. Designed for fixed indoor wiring in public buildings — hospitals, shopping centres, airports — where fire safety standards demand low smoke and zero halogen.

  • 3 core 1.5mm², Class 5 stranded copper (30⁄0.25mm)
  • 300/500V, white LSZH sheath
  • Core colours: brown, blue, green/yellow
  • OD 8.9mm, gland size 20S
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Number of Cores

3

Conductor Type

Class 5 flexible stranded copper

Stranding

30/0.25 mm

Insulation Material

LSZH

Sheath Material

LSZH

Sheath Colour

White

Core Colours

Brown, Blue, Green/Yellow

Voltage Rating

300/500V

Temperature Range

-5°C to +70°C

Overall Diameter

8.9 mm

Weight

120 kg/km

Gland Size

20S

Minimum Bending Radius

5 × overall diameter

Standards

H05Z1Z1-F, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50525-3-11
