3 Core 0.75mm2 LSZH Flexible Cord 300 500V White Sheath H05Z1Z1-F

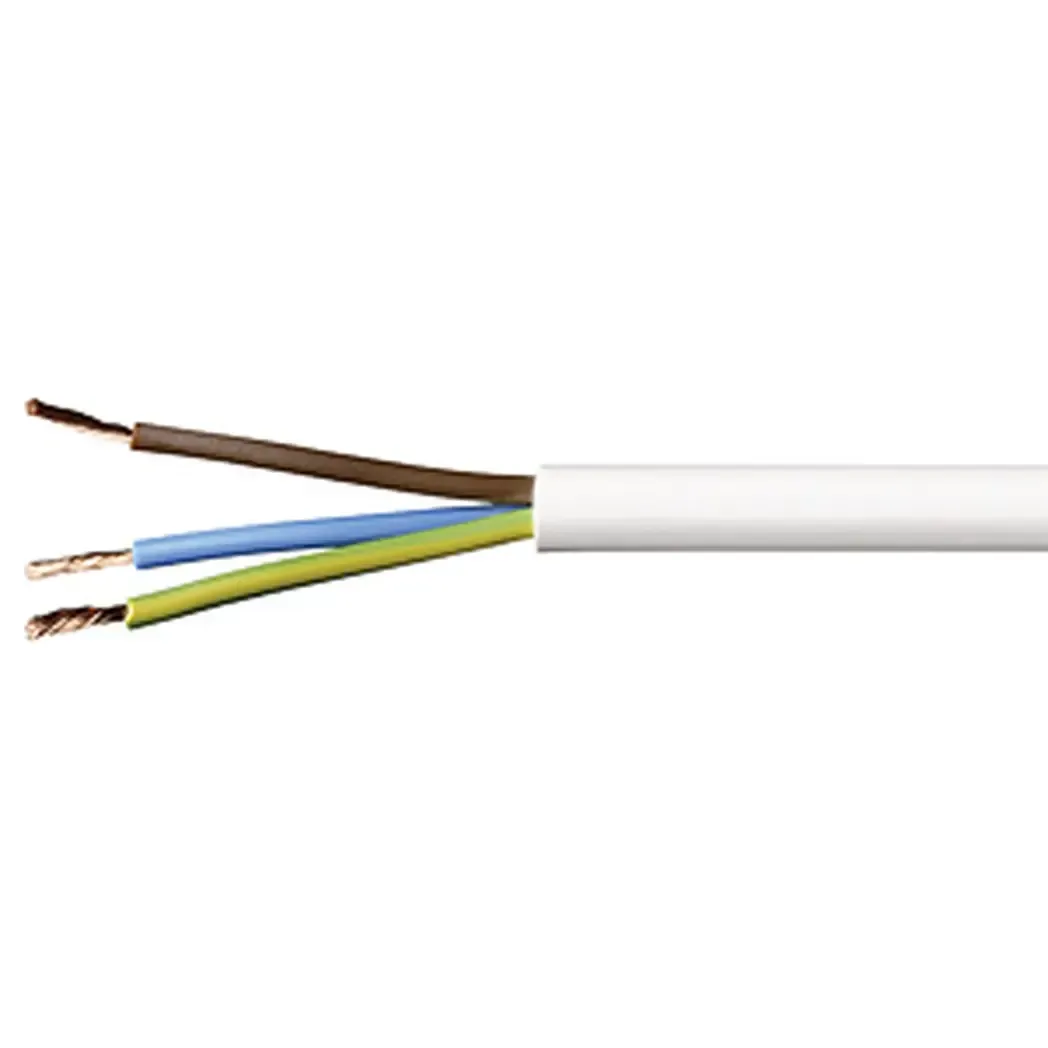

Photo is representative

3 Core 0.75mm2 LSZH Flexible Cord 300 500V White Sheath H05Z1Z1-F

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 375PVC
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.70

Gross price

£0.84

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

3-core 0.75mm² LSZH flexible cord with white sheath. Rated 300/500V, H05Z1Z1-F. Suitable for indoor fixed flexible wiring where low smoke and zero halogen properties are required — pendant lighting, supply leads in hospitals, shopping centres, airports and similar public spaces.

Class 5 stranded copper conductors (24⁄0.20), LSZH insulation and sheath throughout.

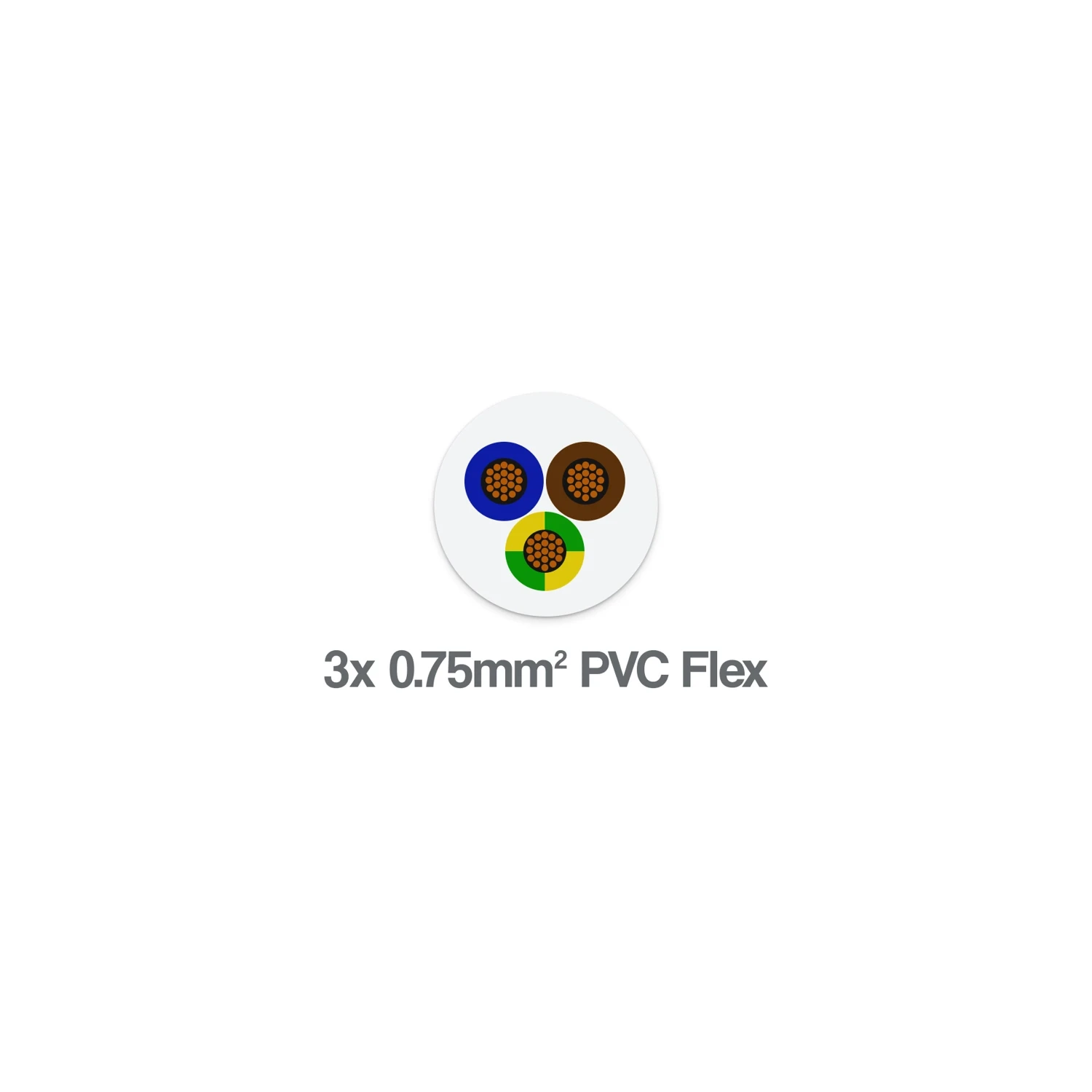

  • 3-core: brown, blue, green/yellow
  • OD: 7.2 mm | Min bend radius: 5 x OD
  • Temp range: -5°C to +70°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

0.75 mm²

Number of Cores

3

Core Colours

Brown, Blue, Green/Yellow

Voltage Rating

300/500V

Conductor Type

Class 5 flexible stranded copper

Stranding

24/0.20

Insulation Material

LSZH

Sheath Material

LSZH

Sheath Colour

White

Overall Diameter

7.2 mm

Weight

70 kg/km

Minimum Bending Radius

5 x overall diameter

Temperature Range

-5°C to +70°C

Gland Size

20/16

Flame Retardancy

BS EN 60332-1-2

Standards

H05Z1Z1-F, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50525-3-11
