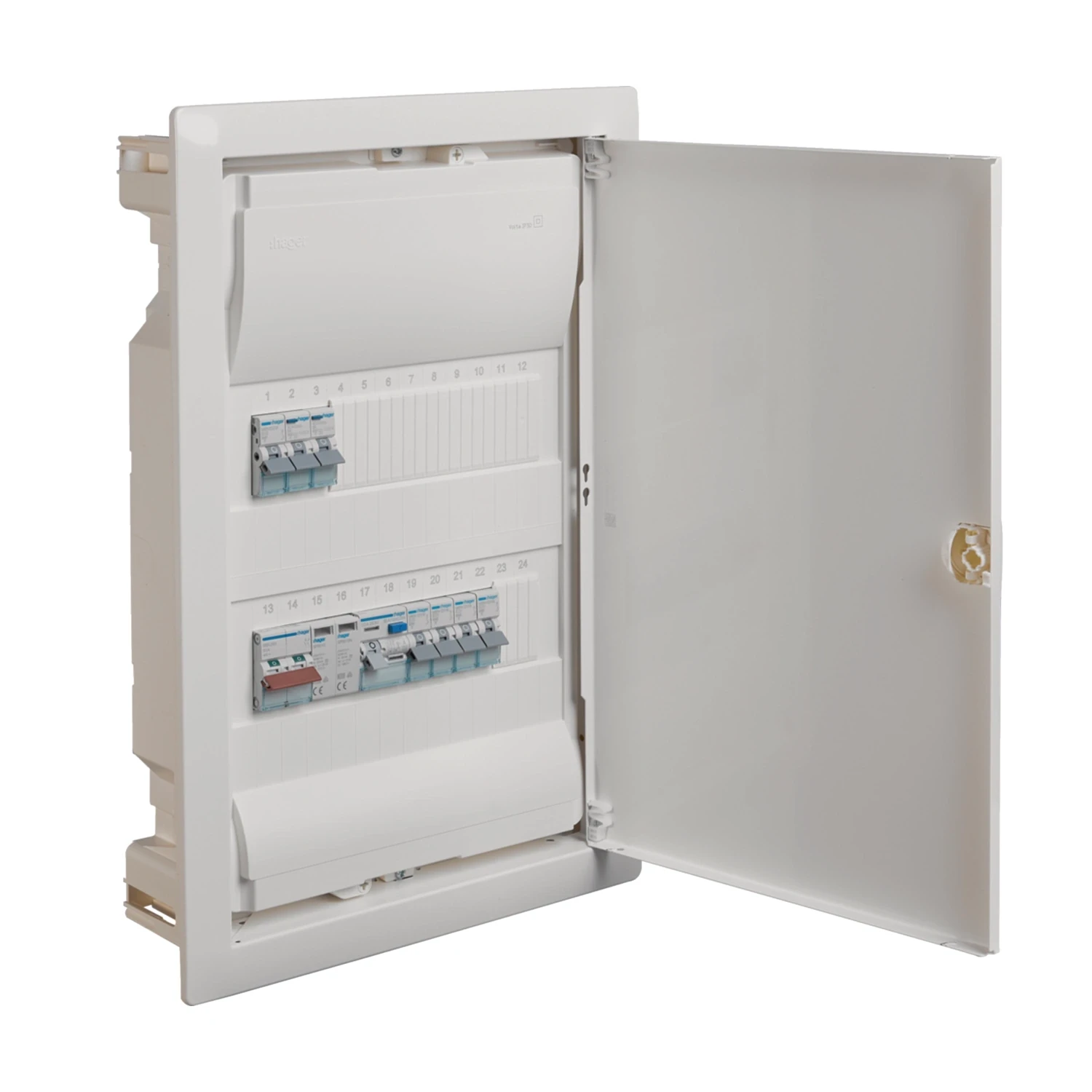

Hager 2Row 24Mod Recessed Consumer Distribution Board

Photo is representative

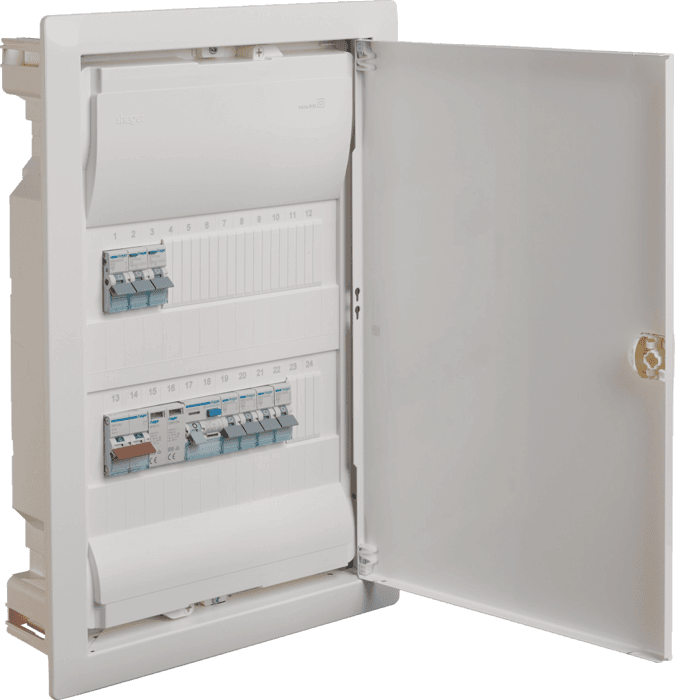

Hager Volta 2 Row 24 Module Surge Protected Recessed Consumer Unit

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VF8101SPD
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £270.46

Gross price

£324.55

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Hager Volta 2 Row Consumer Unit offers safe, recessed protection with 24 modular spaces, integrated surge protection device (SPD). With flush-mounted installation, it’s ideal for residential and commercial electrical systems.

  • Recessed 2 row consumer unit with 24 module capacity
  • Integrated Surge Protection Device (SPD) for system safety
  • Supplied with: 2x 6A Lighting RCBOs, 1x RCD, 4x 20A MCBs, 1x 32A MCB
  • Rated current: 63A, 400V nominal voltage
  • IP30 ingress protection for indoor use
  • Isolation class II and IK07 impact resistance
  • White plastic housing (RAL9010) with flush-mounting design
  • Snap-on lock door system with solid cover
  • Includes neutral and earthing terminal blocks
  • TÜV-tested with glow wire test rating of 650°C
Specifications

Rows

2

Depth

94 mm

Width

348 mm

Colour

Pure White

Height

505 mm

Material

Plastic

Fixing Mode

Flush Mounted

DoorClosingType

Latch

Number Of Modules

24

RAL Colour Number

9010

IP Rating

IP30

What's included

1x SBR280 - 2P 80A Isolator Switch

1x CDA263U - 2P 63A RCD

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

1x SPL013Z SPD Type 2

Mounting Accessories and Labels

Documents

other VF8101SPD Datasheet

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
