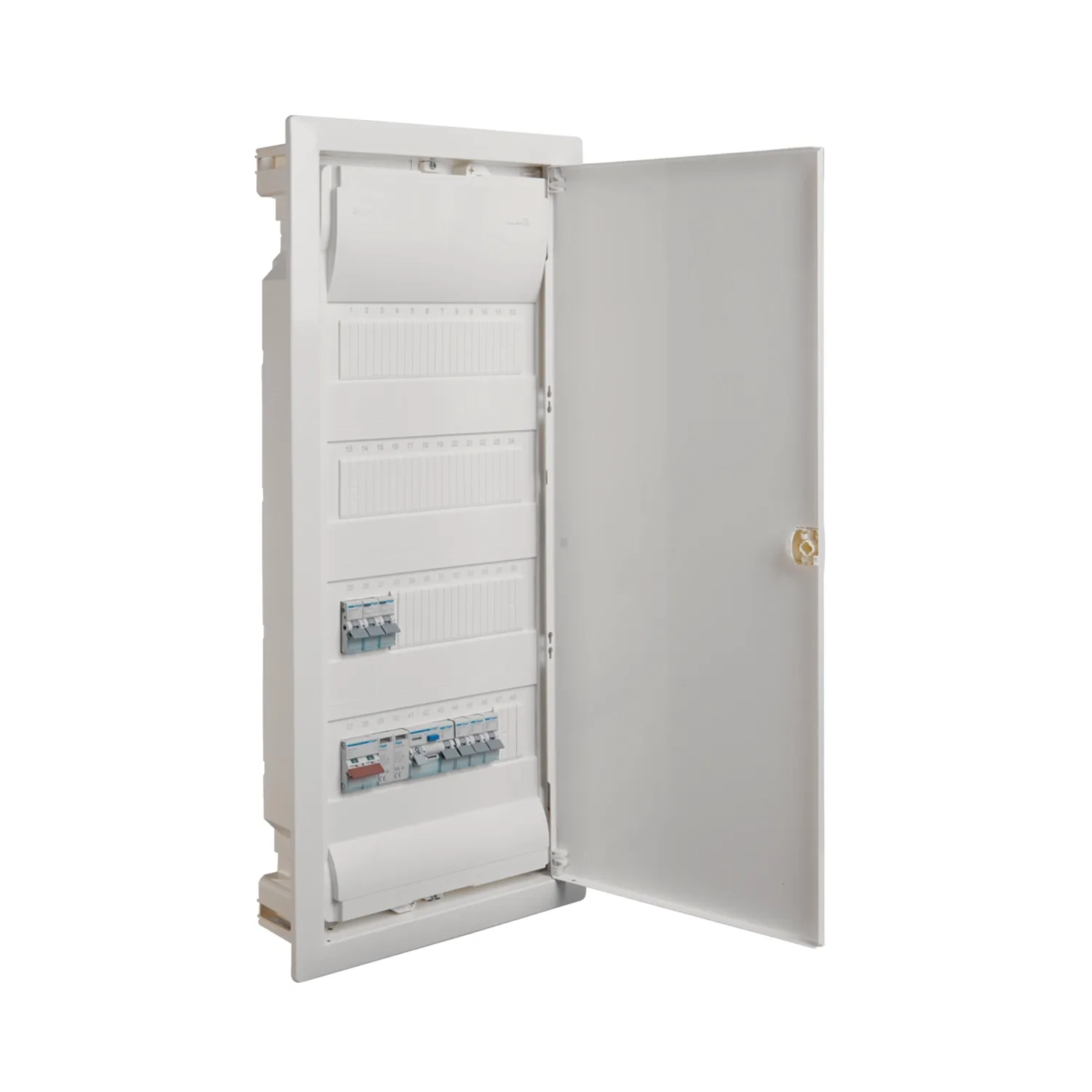

Hager Volta 4Row 48Mod 63A Consumer Unit SPD 2x6A RCBO 1xRCD

Photo is representative

Hager Volta 4Row 48Mod 63A Consumer Unit SPD 2x6A RCBO 1xRCD

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code VF10101SPD
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £346.89

Gross price

£416.27

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Hager Volta 4-row recessed consumer unit for domestic and light commercial installations. Pre-equipped with main protection and RCD/RCBO configuration as listed.

  • 48 modules across 4 rows, 63A rated main
  • Includes SPD, 2x6A lighting RCBOs, 1x4-pole 20A RCD
  • IP30, IK07 impact resistance, flush-mounted
  • 400V nominal voltage
  • 755mm H × 348mm W × 94.5mm D (recess 89mm deep)
Specifications

Voltage

400V AC

Rated Current

63A

Number of Modules

48

Rows

4

Mounting Type

Flush-mounted recessed

IP Rating

IP30

Impact Resistance

IK07

Protection Class

Isolation class II

Height

755mm

Width

348mm

Depth

94.5mm (recess 89mm)

Colour

Pure white (RAL 9010)

Material

Plastic

Glow Wire Test

650°C

What's included

1x SBR280 - 2P 80A Isolator Switch

1x CDA263U - 2P 63A RCD

4x MBN120W - B20 6kA MCB 1M

1x MBN132W - B32 6kA MCB 1M

2x ADA306G - B6 6kA RCBO 1M

1x SPL013Z SPD Type 2

Mounting Accessories and Labels

Hager Electrical Distribution

Circuit Overload & Short Circuit Protection

Hager MCBs provide reliable protection for individual circuits against overloads and short circuits. Available in Type B and Type C characteristics to suit both domestic and commercial installations, they are designed for straightforward DIN rail mounting inside Hager consumer units and distribution boards. Choose the correct amperage rating to match the circuit load — from lighting and sockets through to high-demand appliances.

browse all MCBs

Per-Circuit Earth Fault & Overcurrent Protection

Hager RCBOs combine the functions of an MCB and an RCD into a single compact module, providing both overcurrent protection and earth leakage detection on a per-circuit basis. Operating at 30mA sensitivity, they disconnect the circuit instantly if a potentially dangerous earth fault is detected — making them the preferred choice for 18th Edition compliant installations. Each RCBO occupies a single way, keeping your board neat and allowing faults to be isolated without disrupting other circuits.

browse all RCBOs
