Hager Mini Enclosure 10 Module Surface Mount IP30 GD110N

Photo is representative

Hager Mini Enclosure 10 Module Surface Mount IP30 GD110N

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GD110N
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £21.07

Gross price

£25.29

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

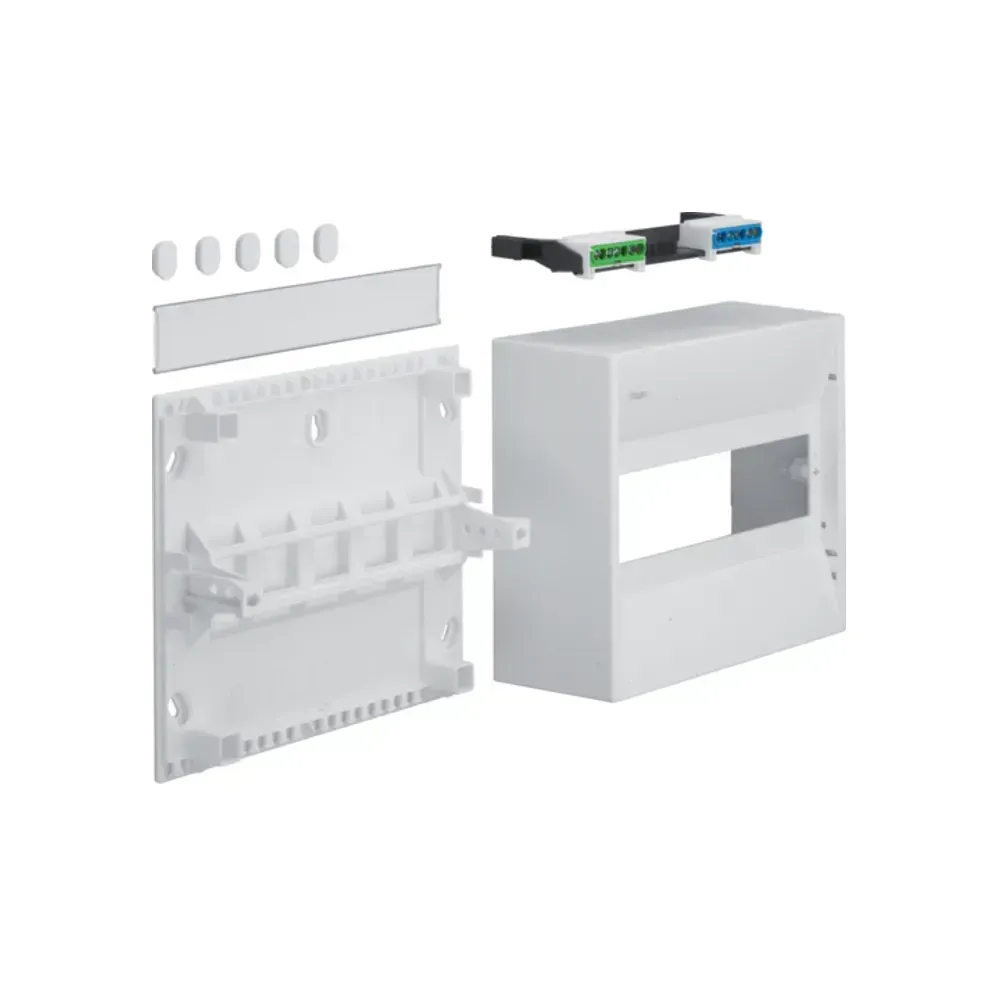

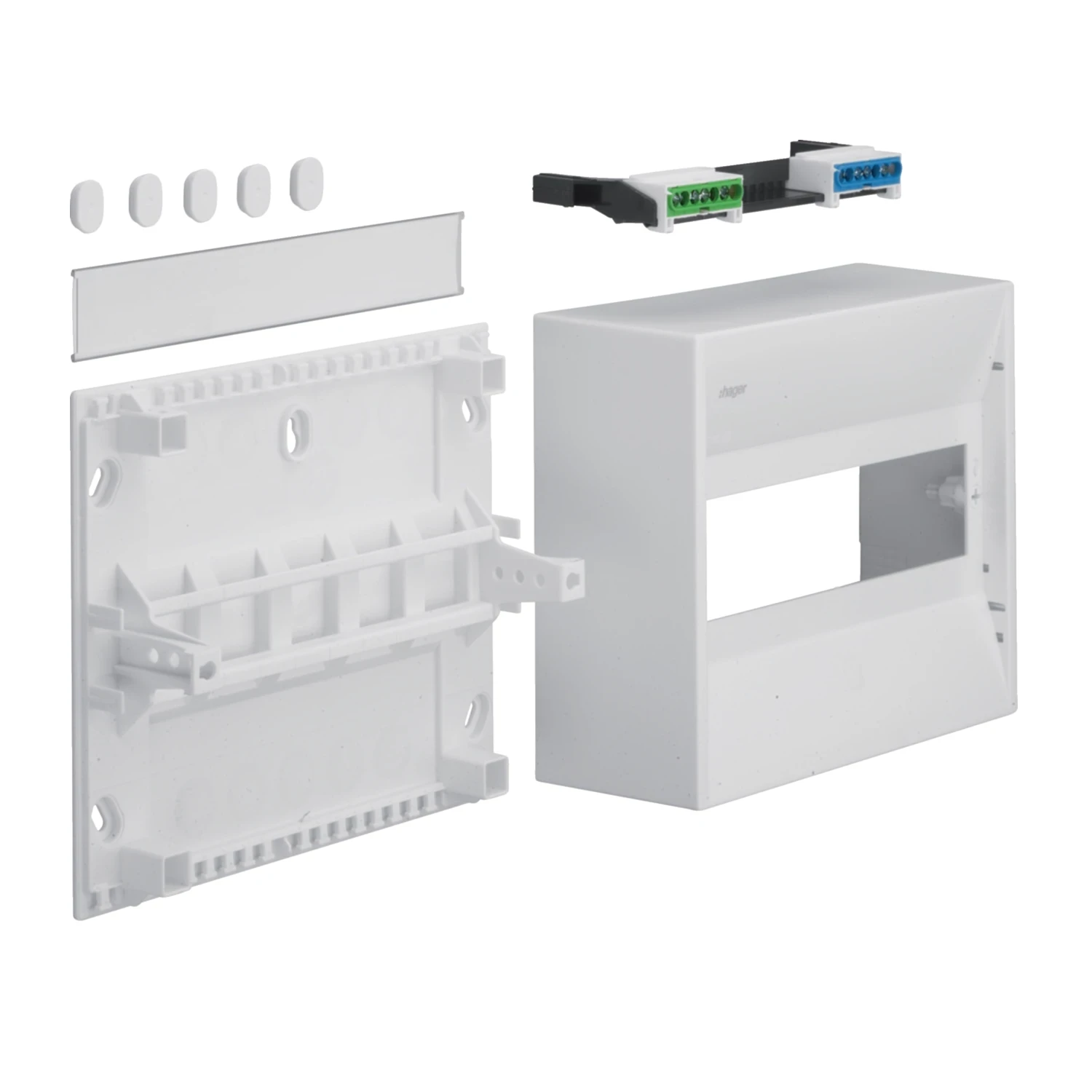

Hager GD110N is a 10-module mini-enclosure for surface mounting in indoor locations. Single row, single DIN rail. Rated at 63 A, 230–400 V.

Comes with one N terminal block and one PE terminal block fitted. No main switch, no lock. Not suitable for outdoor use.

  • 10 modules, 1 row, 1 rail
  • IP30, IK05, Class II
  • Plastic enclosure, RAL 9010 pure white
  • H 180 mm × W 218 mm × D 82 mm
  • Glow wire tested to 750 °C
Specifications

Nominal Voltage

230 - 400 V

Rated Current

63 A

Number of Modules

10

Number of Rails

1

Number of Rows

1

IP Rating

IP30

Impact Resistance

IK05

Protection Class

Isolation class II

Mounting Type

Surface mounting

Material

Plastic

Colour

Pure white (RAL 9010)

Height

180 mm

Width

218 mm

Depth

82 mm

Glow Wire Test

750 °C

Neutral Terminal Block

Yes

Earth Terminal Block

Yes

Suitable for Outdoor Use

No

Documents

other Hager GD110N Datasheet
