Hager Mini Enclosure 6 Module Surface Mount IP30 GD106N

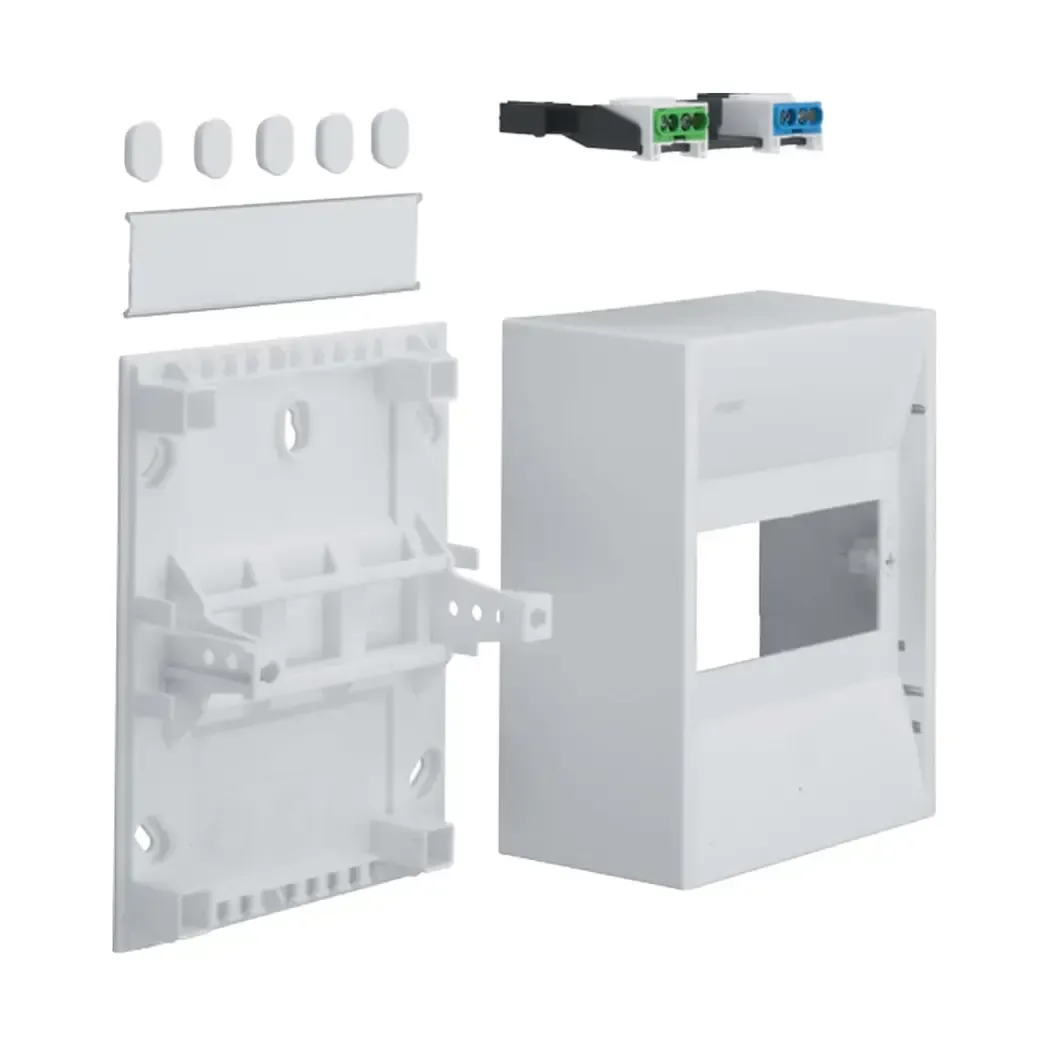

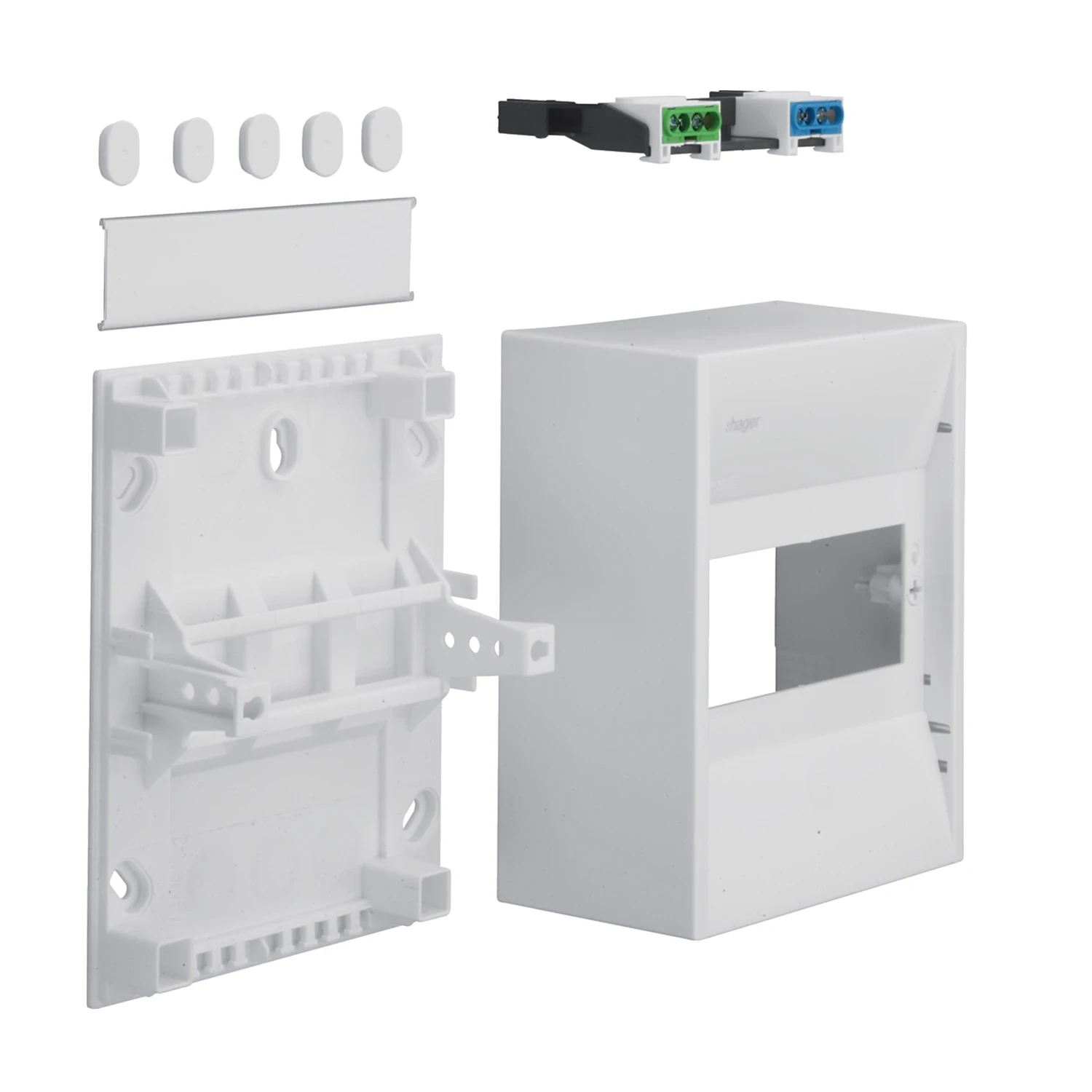

Photo is representative

Hager Mini Enclosure 6 Module Surface Mount IP30 GD106N

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GD106N
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £13.50

Gross price

£16.20

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Compact 6-module surface mount mini-enclosure from Hager’s gamma range. Plastic construction, pure white (RAL 9010). Not suitable for outdoor use.

Includes integral N and PE terminal blocks. No main switch.

  • 6 modules, 1 row, 1 DIN rail
  • Rated current: 50 A
  • IP30, IK05
  • Dimensions: 180 × 146 × 82 mm
  • Glow wire: 750 °C
Specifications

Nominal Voltage

230 V

Rated Current

50 A

Number of Modules

6

Number of Rails

1

Number of Rows

1

Mounting Type

Surface mounting

IP Rating

IP30

Impact Resistance

IK05

Protection Class

Isolation class II

Glow Wire Test

750 °C

Material

Plastic

Colour

Pure white (RAL 9010)

Height

180 mm

Width

146 mm

Depth

82 mm

Neutral Terminal Block

Yes

Earth Terminal Block

Yes

Main Switch

No

Conduit Inlets

Yes

Suitable for Outdoor Use

No

Documents

datasheet Hager GD106N Datasheet
