NYM-J 7 Core 2.5mm² PVC Cable 300 500V Grey 500m Drum

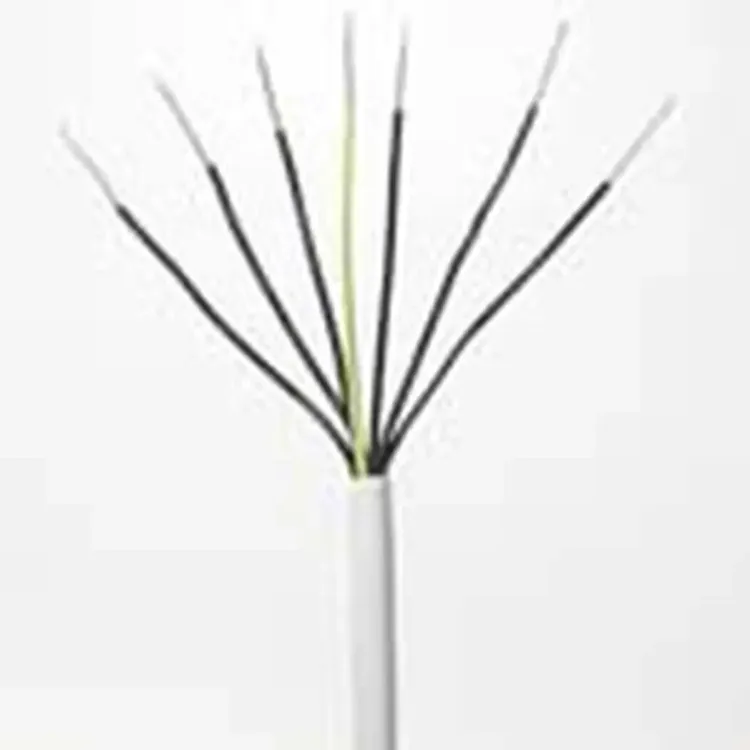

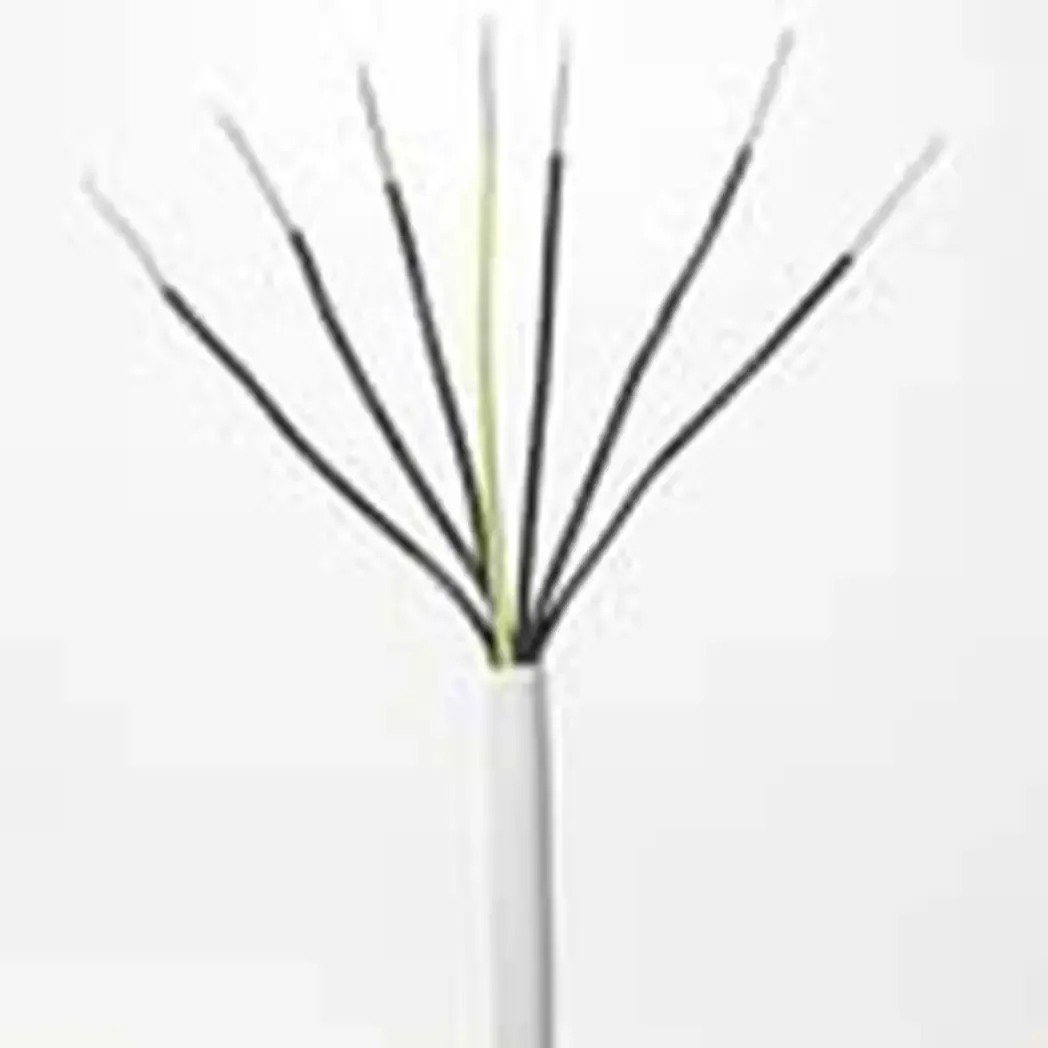

Photo is representative

NYM-J 7 Core 2.5mm² PVC Cable 300 500V Grey 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 725NYM
GTIN —
Stock status: In stock

priced per metre

Net price: £3.21

Gross price

£3.86

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

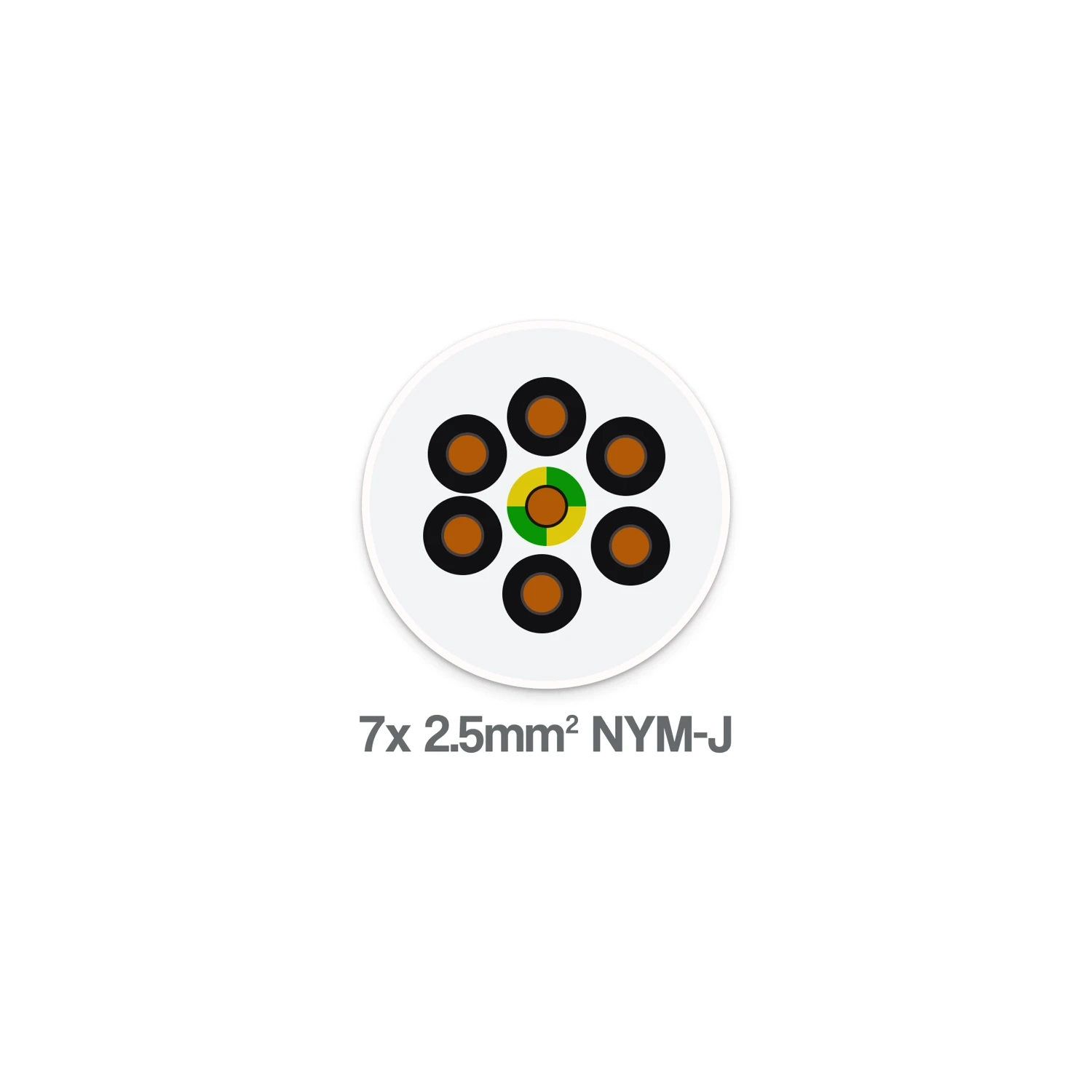

NYM-J 7 × 2.5mm² grey PVC cable supplied on a 500m drum. Solid Class 1 copper conductors, PVC insulated and PVC sheathed, with protective conductor included. Rated 300/500V to VDE 0250 Part 204.

Core identification to HD 308 S2. Not halogen-free and not low smoke — check spec against project requirements before ordering.

  • 7 cores including CPC
  • Conductor resistance: 7.41 Ω/km at 20°C
  • Max conductor temp: 70°C, short circuit: 160°C
  • Flame retardant to IEC/EN 60332-1-2
  • Fire reaction class: Eca (EN 13501-6)
  • Min bending radius: 8 × OD
  • Installation temp: 5°C to 70°C; static service: -40°C to 70°C
Specifications

Nominal Voltage

300/500 V

Number of Cores

7

Conductor Cross Section

2.5 mm²

Conductor Material

Copper

Conductor Class

Class 1 (solid)

Conductor Shape

Round

Conductor Resistance at 20°C

7.41 Ω/km

Core Insulation

PVC

Outer Sheath Material

PVC

Outer Sheath Colour

Grey

Protective Conductor

Yes

Core ID Standard

HD 308 S2

Max Conductor Temperature

70°C

Max Short Circuit Temperature

160°C

Flame Retardant

IEC/EN 60332-1-2

Fire Reaction Class

Eca (EN 13501-6)

Halogen Free

No

Low Smoke

No

Screen

None

Armouring

None

Min Bending Radius

8 × OD

Installation Temperature

5°C to 70°C

Static Service Temperature

-40°C to 70°C

Standard

VDE 0250 Part 204
