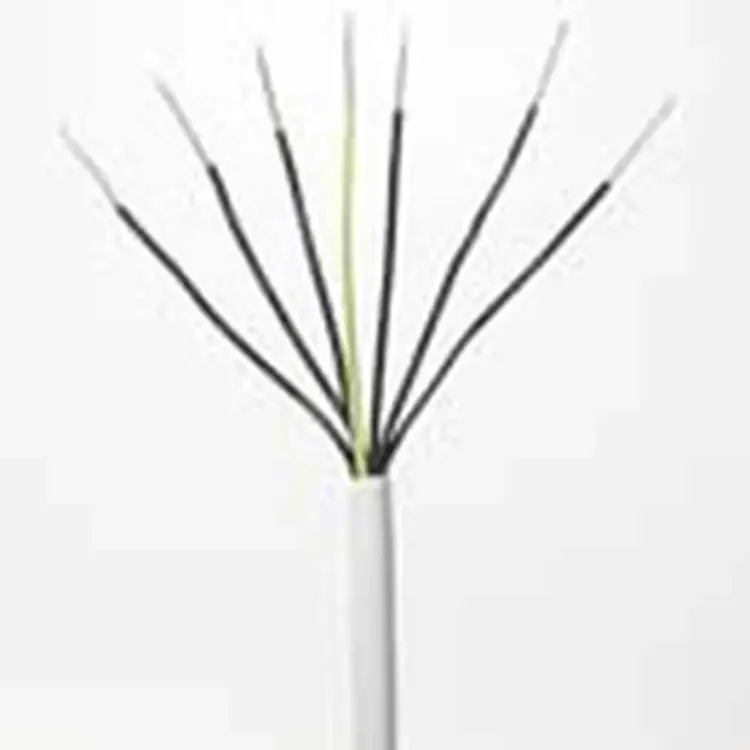

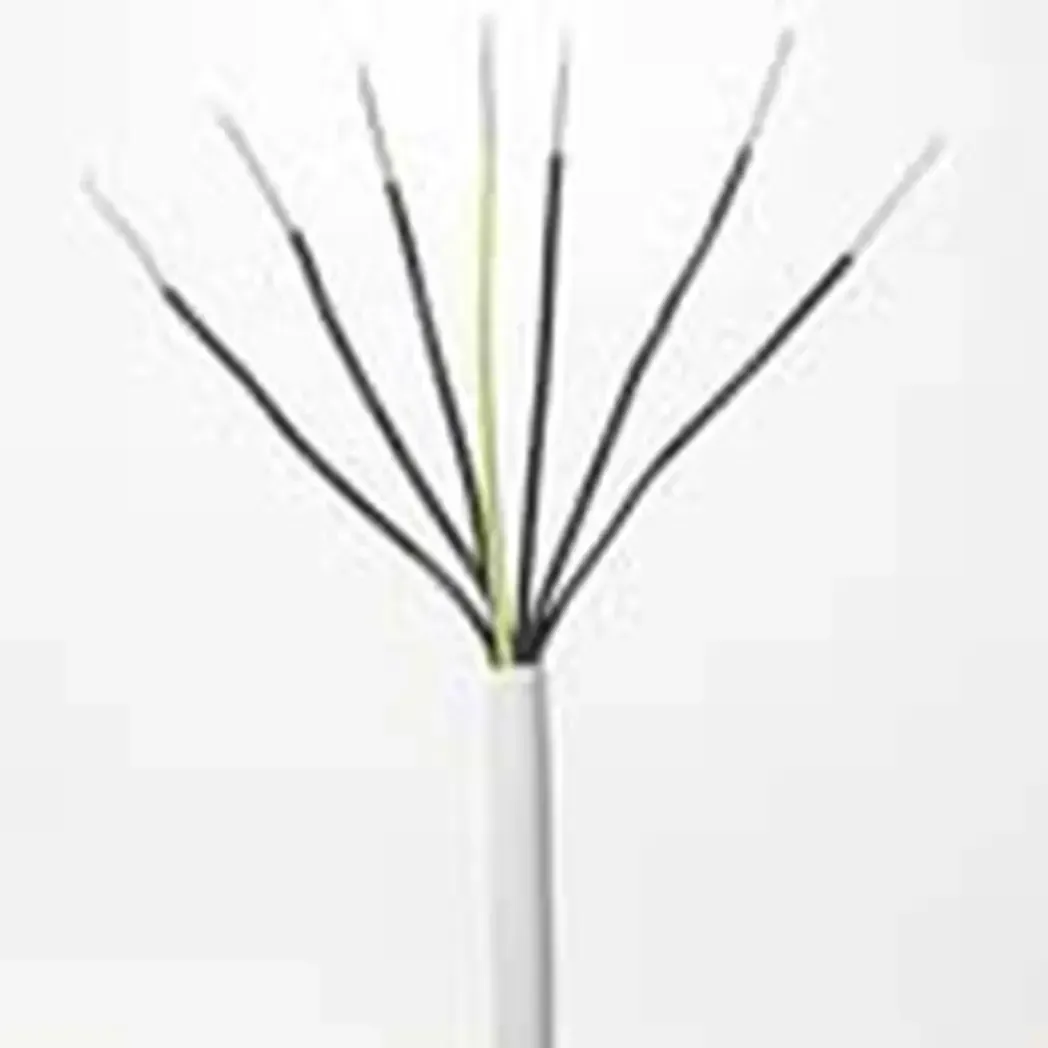

NYM-J 7 Core 1.5mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 715NYM
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.91

Gross price

£3.50

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 7x1.5mm² PVC wiring cable on a 500m drum. Solid Class 1 copper conductors, PVC insulation and sheath to IEC 60332-1-2.

Suitable for fixed wiring in dry, moist or wet environments — under plaster, in concrete, domestic and industrial installations. Not suitable for direct sunlight exposure.

  • 300/500V rated
  • 19A current carrying capacity
  • DC resistance at 20°C: 12.1 Ω/km
  • Operating temp: -30°C to +70°C (min installation temp 0°C)

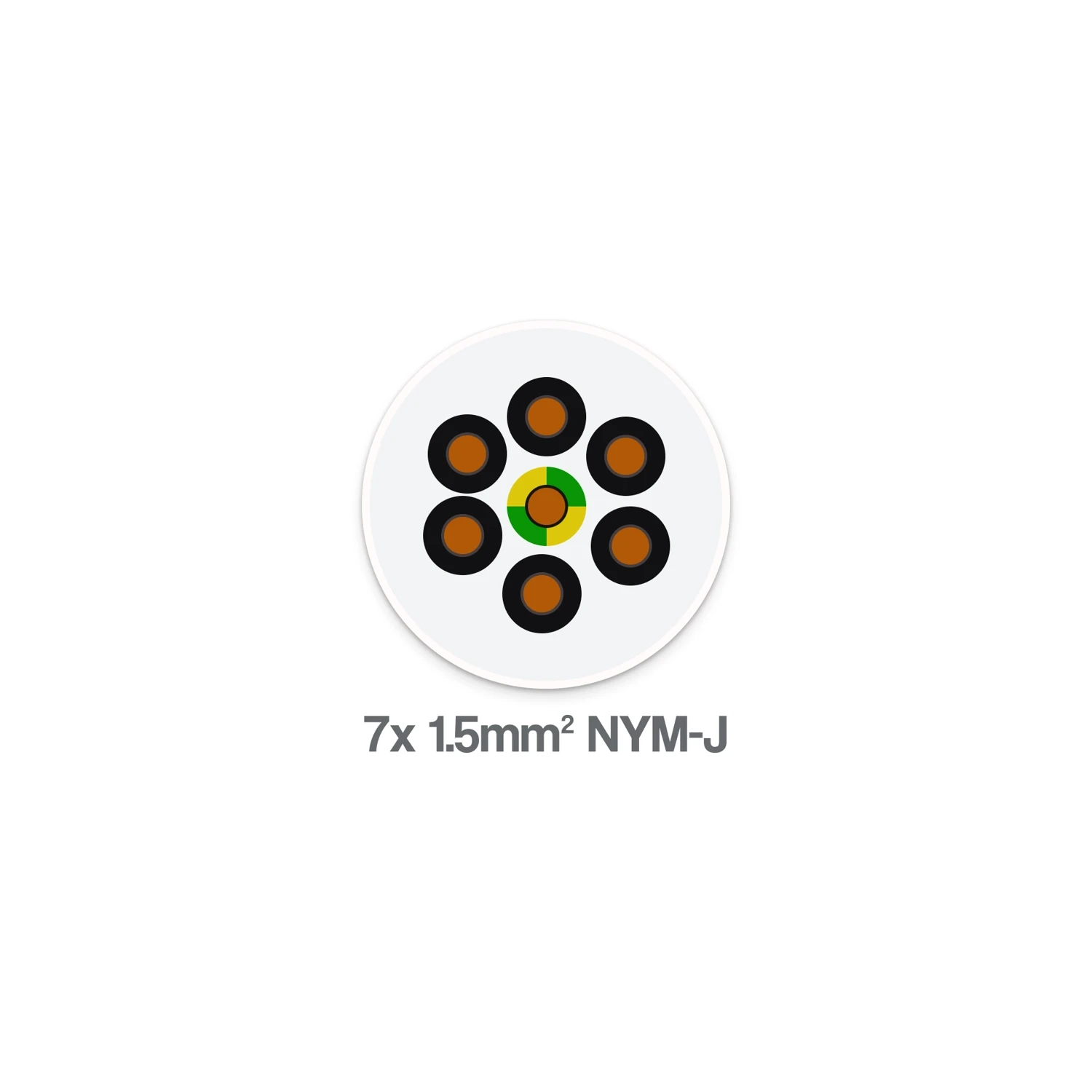

  • Core ID: black with white numbers
Specifications

Voltage Rating

300/500V

Conductor Size

1.5 mm²

Number of Cores

7

Conductor Type

Solid copper (Class 1)

Stranding

1/1.38 mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Current Carrying Capacity

19 A

DC Resistance at 20°C

12.1 Ω/km

AC Resistance at 70°C

1.5 Ω/km

Inductance

0.329 mH/km

Operating Temperature

-30°C to +70°C

Installation Temperature Minimum

0°C

Weight

210 kg/km

Core Identification

Black with white numbers

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
