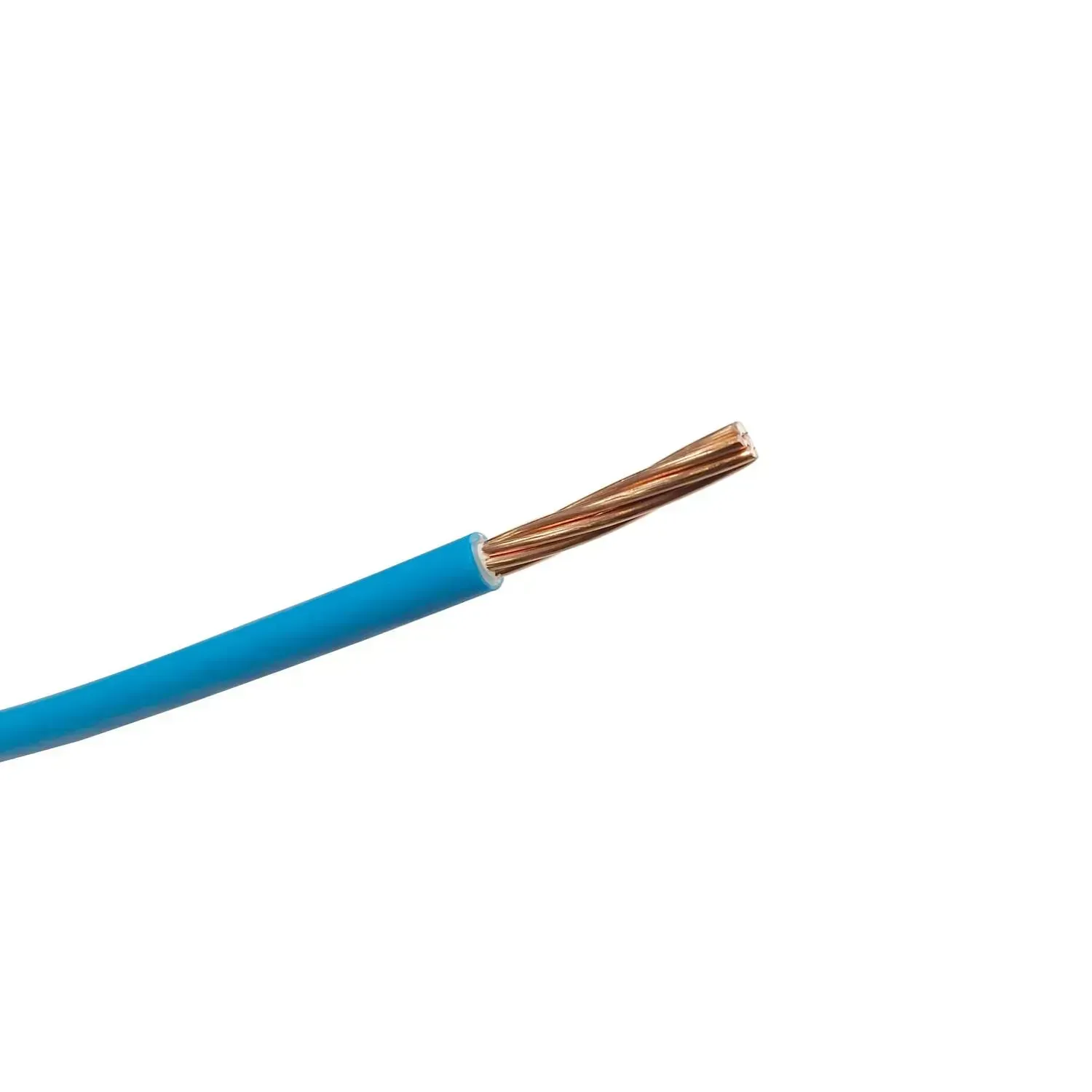

6491B Single Core 6mm LSZH H07Z-R 450 750V Blue

Photo is representative

6491B Single Core 6mm LSZH H07Z-R 450 750V Blue

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 6PVCBLUE1
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.36

Gross price

£1.63

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

6491B single core LSZH cable in 6mm² blue. Rated 450/750V and built to H07Z-R. Suitable for conduit runs, fixed wiring, lighting circuits, switchgear, and appliance wiring.

LSZH sheath meets BS EN 60332-1-2 flame retardancy — use it where smoke and halogen emissions are a concern.

  • 6mm² Class 2 stranded copper (7⁄1.04mm)
  • OD: 4.75mm | Min. bend radius: 6 x OD
  • Temp range: 0°C to +90°C
  • Standards: H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1⁄2, BS EN/IEC 60332-1-2
Specifications

Conductor Size

6 mm²

Number of Cores

1

Core Colour

Blue

Voltage Rating

450/750V

Conductor Type

Class 2 stranded copper

Stranding

7/1.04 mm

Sheath Material

LSZH

Overall Diameter

4.75 mm

Weight

69 kg/km

Min. Bending Radius (Fixed)

6 x overall diameter

Temperature Range

0°C to +90°C

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
