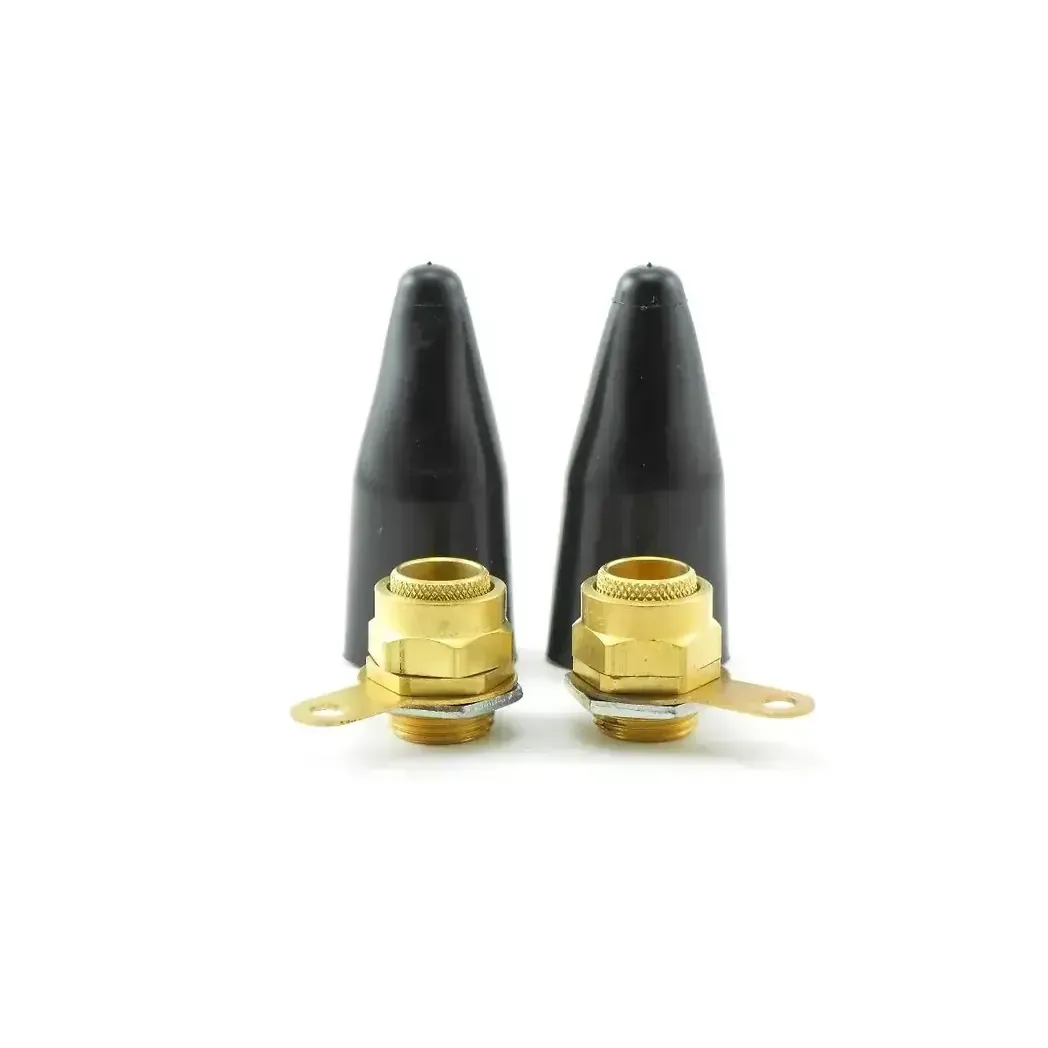

Photo is representative

CW M50 Brass Gland for SWA Cable — CW50C

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CW50C
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £23.99

Gross price

£28.79

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

CW type brass gland for 50mm SWA cable. Suitable for indoor and outdoor installations. Provides mechanical retention and electrical continuity through armour wire termination.

Clamping ring design allows the cable to be disconnected from equipment without disturbing the termination — useful for maintenance and remote isolation procedures in restricted-access areas.

  • Type: CW (waterproof)
  • Thread size: M50
  • IP Rating: IP66
  • Construction: Brass
  • Supplied complete: gland, shroud, locknut, earth tag
Specifications

Gland Type

CW

Thread Size

M50

Material

Brass

IP Rating

IP66

Armour Type

Single Wire Armour (SWA)

Pack Contents

Gland, Shroud, Locknut, Earth Tag
