NYM-J 4 Core 2.5mm2 PVC Wiring Cable 300 500V 500m Drum

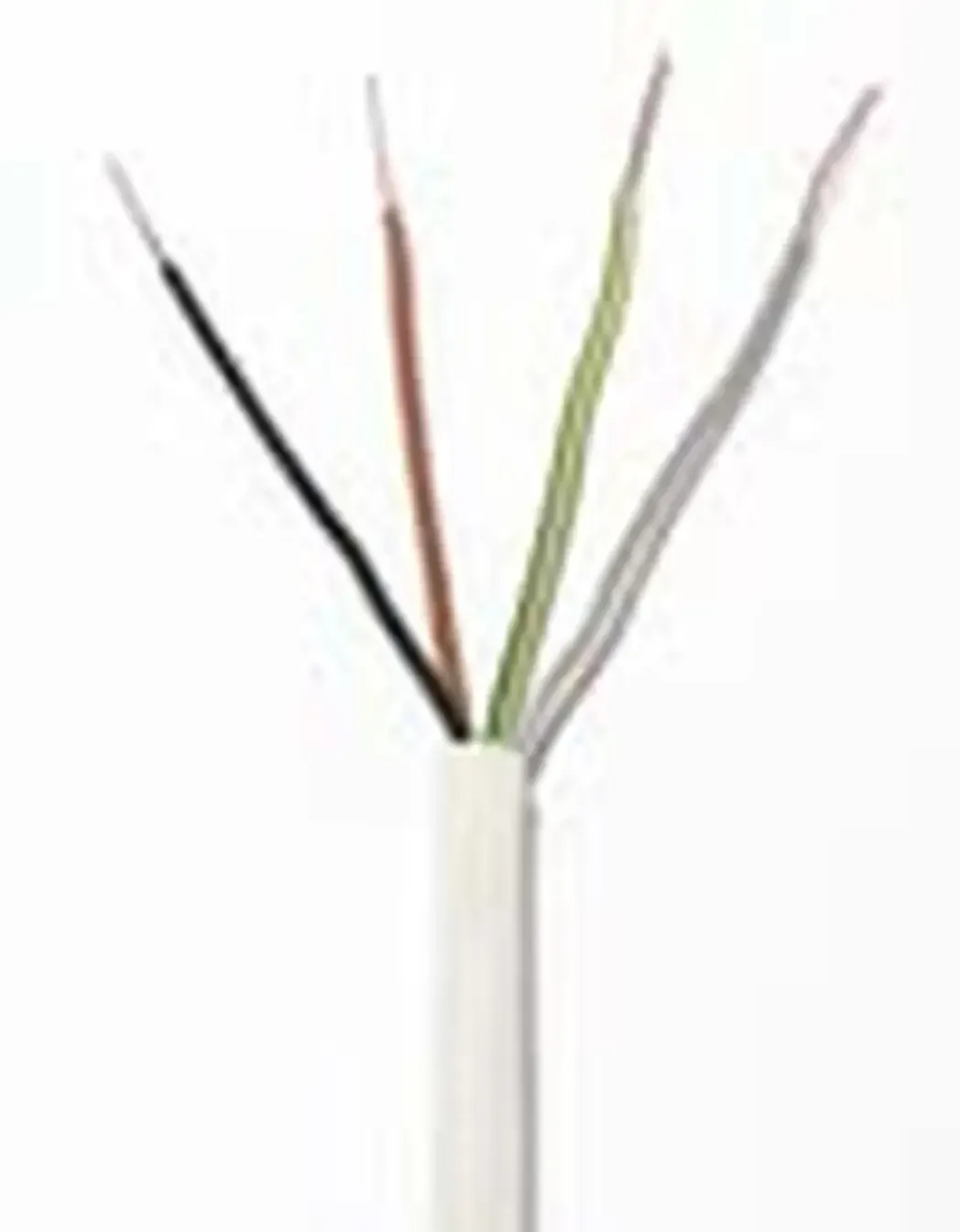

Photo is representative

NYM-J 4 Core 2.5mm2 PVC Wiring Cable 300 500V 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425NYM5
GTIN —
Stock status: In stock

priced per meter

Net price: £1.23

Gross price

£1.48

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 4 core 2.5mm² PVC wiring cable on a 500m drum. Suitable for fixed wiring in dry, moist or wet open areas — including under plaster and in concrete. Not for direct sunlight exposure. Don’t install below 0°C.

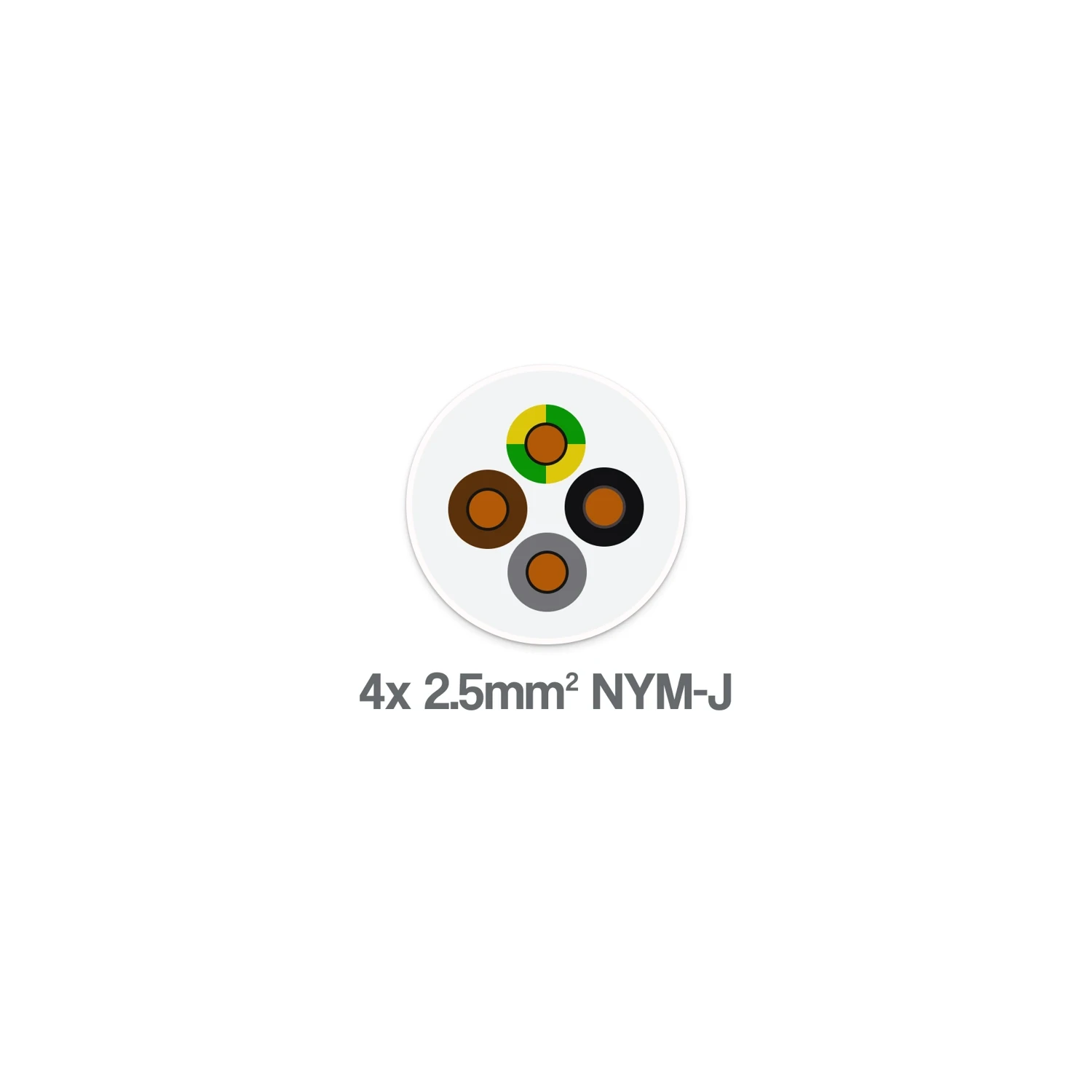

Cores are Brown, Black, Grey and Green/Yellow. Class 2 stranded copper conductors.

  • Voltage rating: 300/500V
  • Current carrying capacity: 25A
  • Operating temp: -30°C to +70°C
  • Voltage drop (3⁄4 core, 3-phase AC): 16 mV/A/m
  • DC resistance at 20°C: 7.41 Ω/km
Specifications

Voltage Rating

300/500V

Number of Cores

4

Conductor Size

2.5mm²

Conductor Type

Stranded copper, Class 2

Stranding

1/1.78mm

Current Carrying Capacity

25A

DC Resistance at 20°C

7.41 Ω/km

AC Resistance at 70°C

2.5 Ω/km

Inductance

0.318 mH/km

Voltage Drop 3-4 Core 3-Phase AC

16 mV/A/m

Voltage Drop 2 Core Single Phase AC

19 mV/A/m

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Operating Temperature

-30°C to +70°C

Installation Temperature

Not below 0°C

Core Identification

Brown, Black, Grey, Green/Yellow

Weight

200 kg/km

Cable Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
