NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V Dca 500m Drum

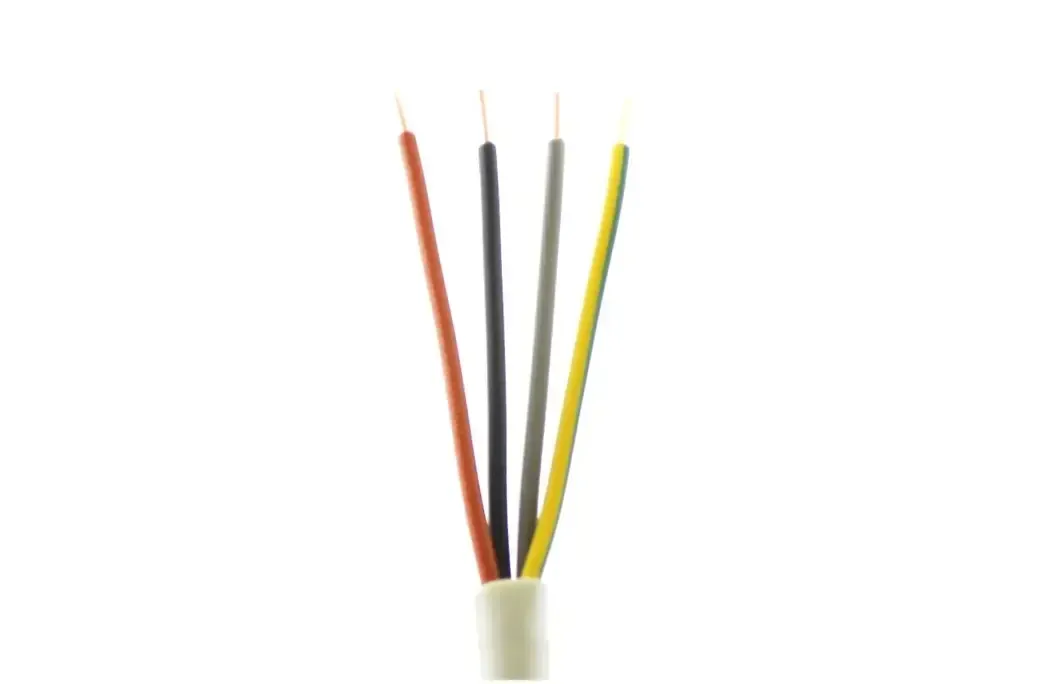

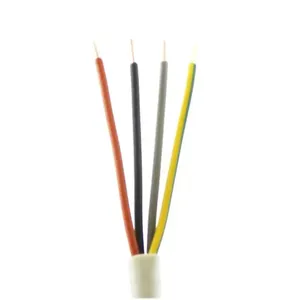

Photo is representative

NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V Dca 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415NYM5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.62

Gross price

£1.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 4 core 1.5mm² PVC wiring cable on a 500m drum. Solid Class 1 copper conductors with PVC insulation and sheath to IEC 60332-1-2. Rated 300/500V.

Suitable for dry, moist, or wet open areas — including under plaster and in concrete. Fire class Dca s1a,d2,a1 (NHXMH-J designation).

  • 19A current carrying capacity

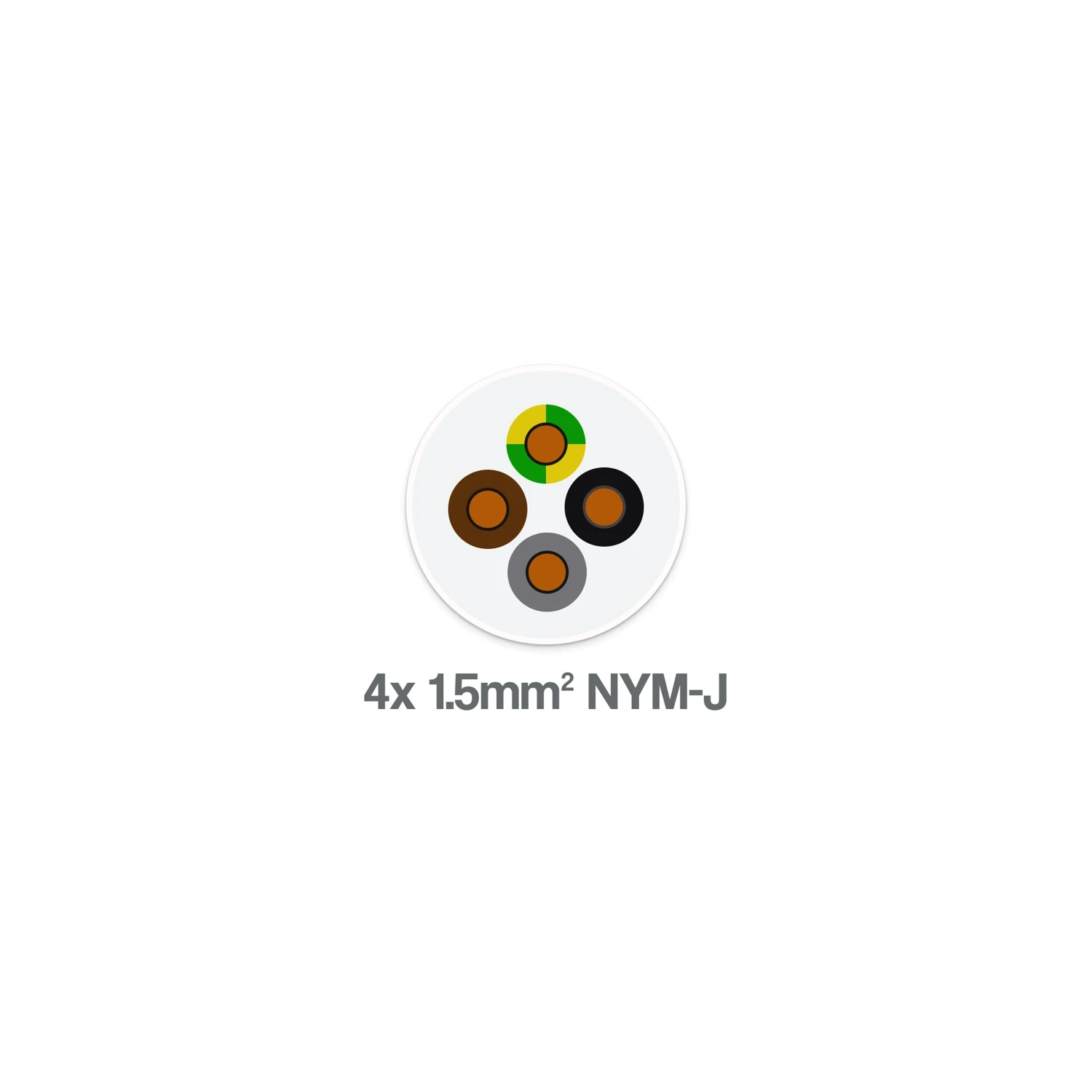

  • Core ID: Brown, Black, Grey, Green/Yellow
  • Operating temp: -30°C to +70°C (min install temp 0°C)
  • Voltage drop (3⁄4 core, three phase): 27 mV/A/m
  • Standards: BS EN 50265-2-1, IEC 60502, VDE 0250
Specifications

Conductor Size

1.5 mm²

Number of Cores

4

Stranding

1/1.38 mm

Conductor Material

Solid copper (Class 1)

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500 V

Current Carrying Capacity

19 A

DC Resistance at 20°C

12.1 Ω/km

AC Resistance at 70°C

1.5 Ω/km

Inductance

0.329 mH/km

Voltage Drop (2 core, single phase AC)

31 mV/A/m

Voltage Drop (3/4 core, three phase AC)

27 mV/A/m

Operating Temperature

-30°C to +70°C

Minimum Installation Temperature

0°C

Weight

140 kg/km

Core Identification

Brown, Black, Grey, Green/Yellow

Fire Classification

Dca s1a,d2,a1

Standards

BS EN 50265-2-1, IEC 60502, VDE 0250
