Arctic Grade Flexible Cable 3 Core 2.5mm² 300 500V Yellow PVC BS6004 3183A

Photo is representative

Arctic Grade Flexible Cable 3 Core 2.5mm² 300 500V Yellow PVC BS6004 3183A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325ARTYELLOW
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.93

Gross price

£2.32

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

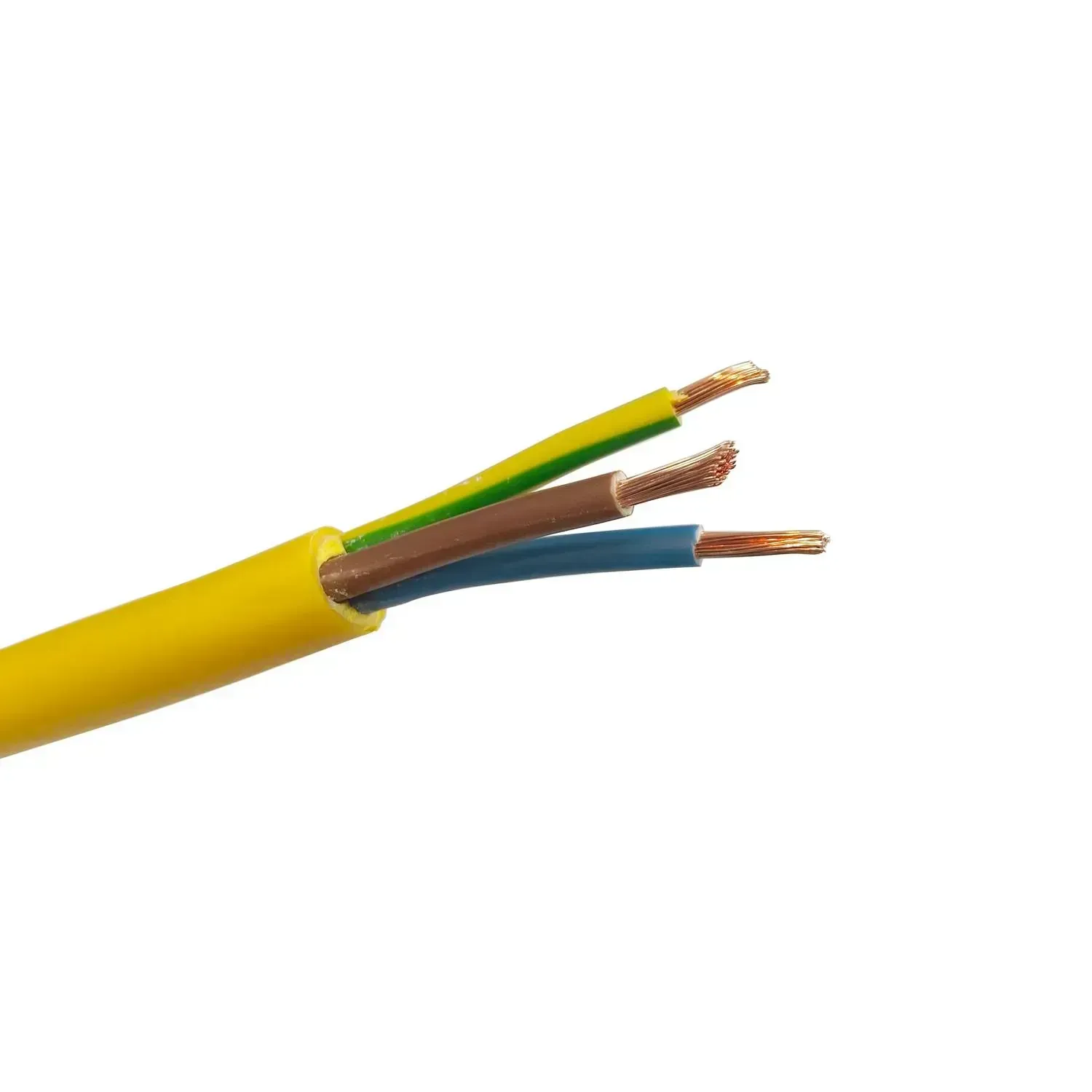

Arctic grade 3183A flexible cable — 3-core 2.5mm² with yellow PVC sheath. Class 5 stranded copper throughout, rated for portable tools and temporary installations indoors and out.

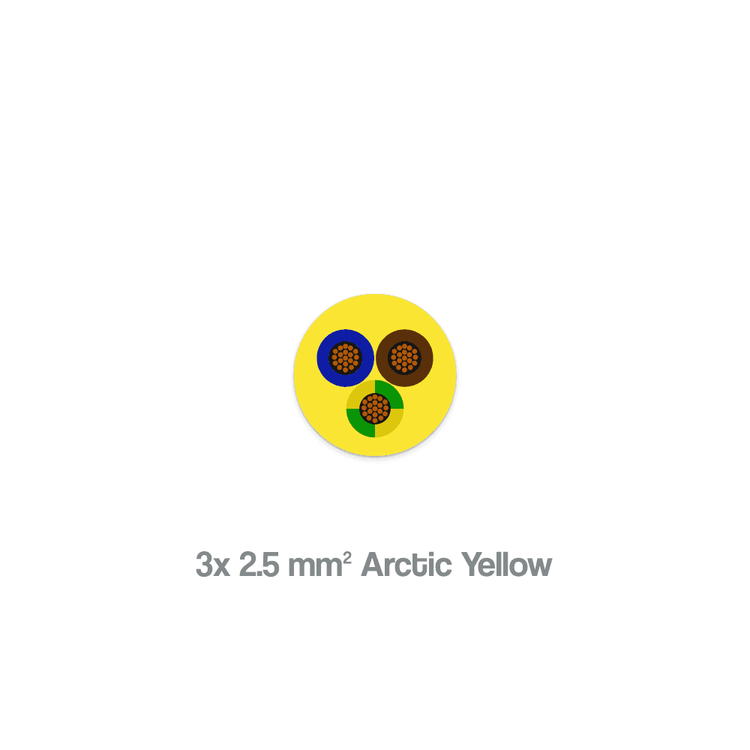

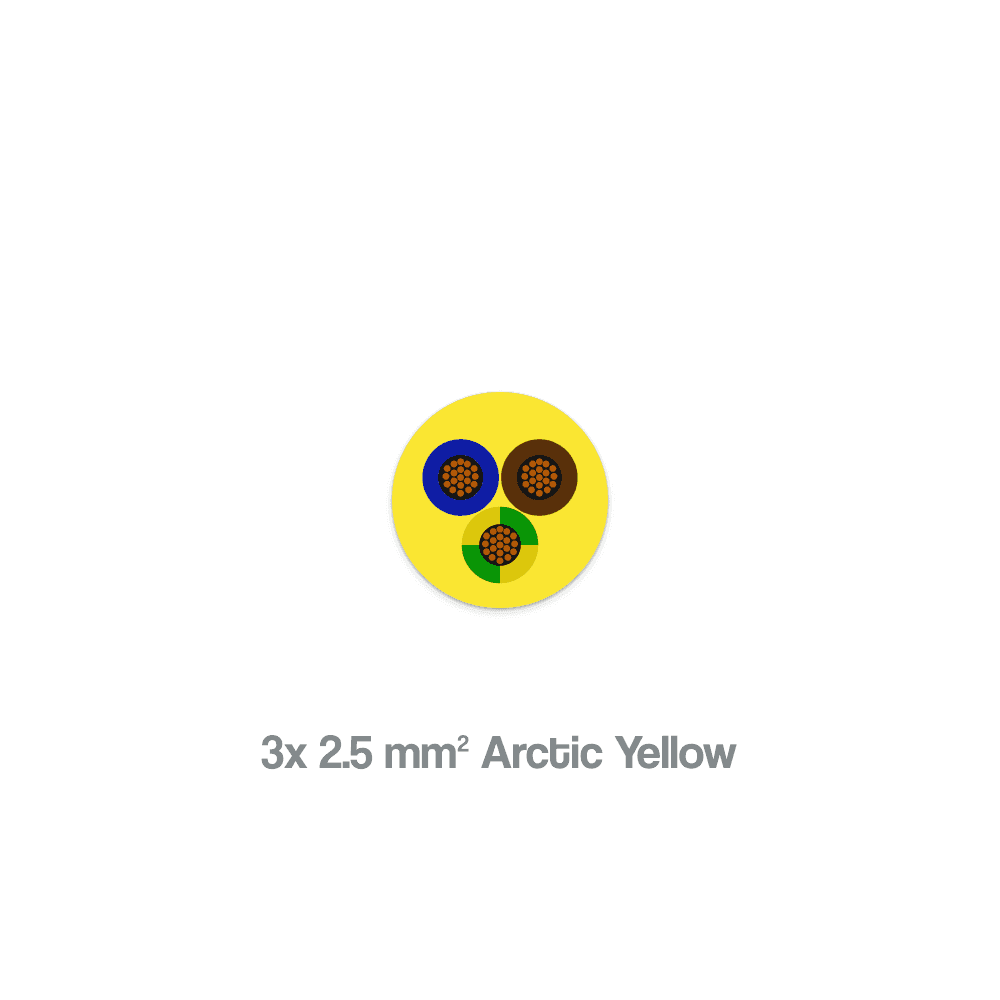

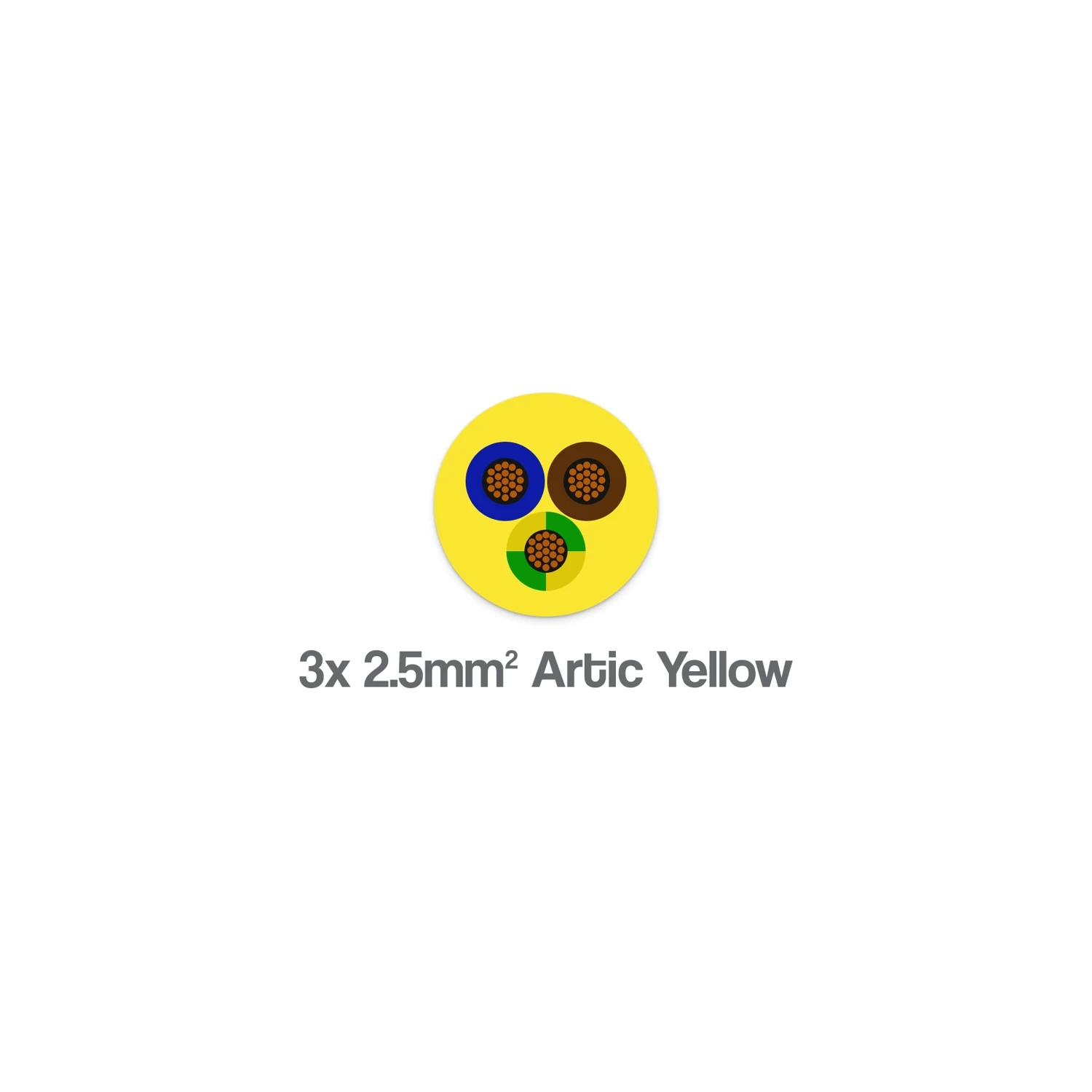

Designed for low-temperature operation down to -40°C. Core colours are brown, blue, and green/yellow.

  • 300/500V rated
  • Overall diameter: 10.15 mm — takes a 20S gland
  • Min. bending radius (fixed): 6 x OD
  • Flame retardant to BS EN 60332-1-2
Specifications

Voltage Rating

300/500V

Conductor Size

2.5 mm²

Number of Cores

3

Conductor Type

Class 5 flexible, stranded copper

Stranding

50/0.25

Insulation Material

PVC

Outer Sheath Material

PVC

Sheath Colour

Yellow

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

10.15 mm

Gland Size

20S

Weight

180 kg/km

Temperature Range

-40°C to +70°C

Min. Bending Radius (Fixed)

6 x overall diameter

Standards

BS 6004, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50265
