Arctic Grade Flexible Cable 3 Core 1.5mm2 300 500V Yellow PVC BS6004

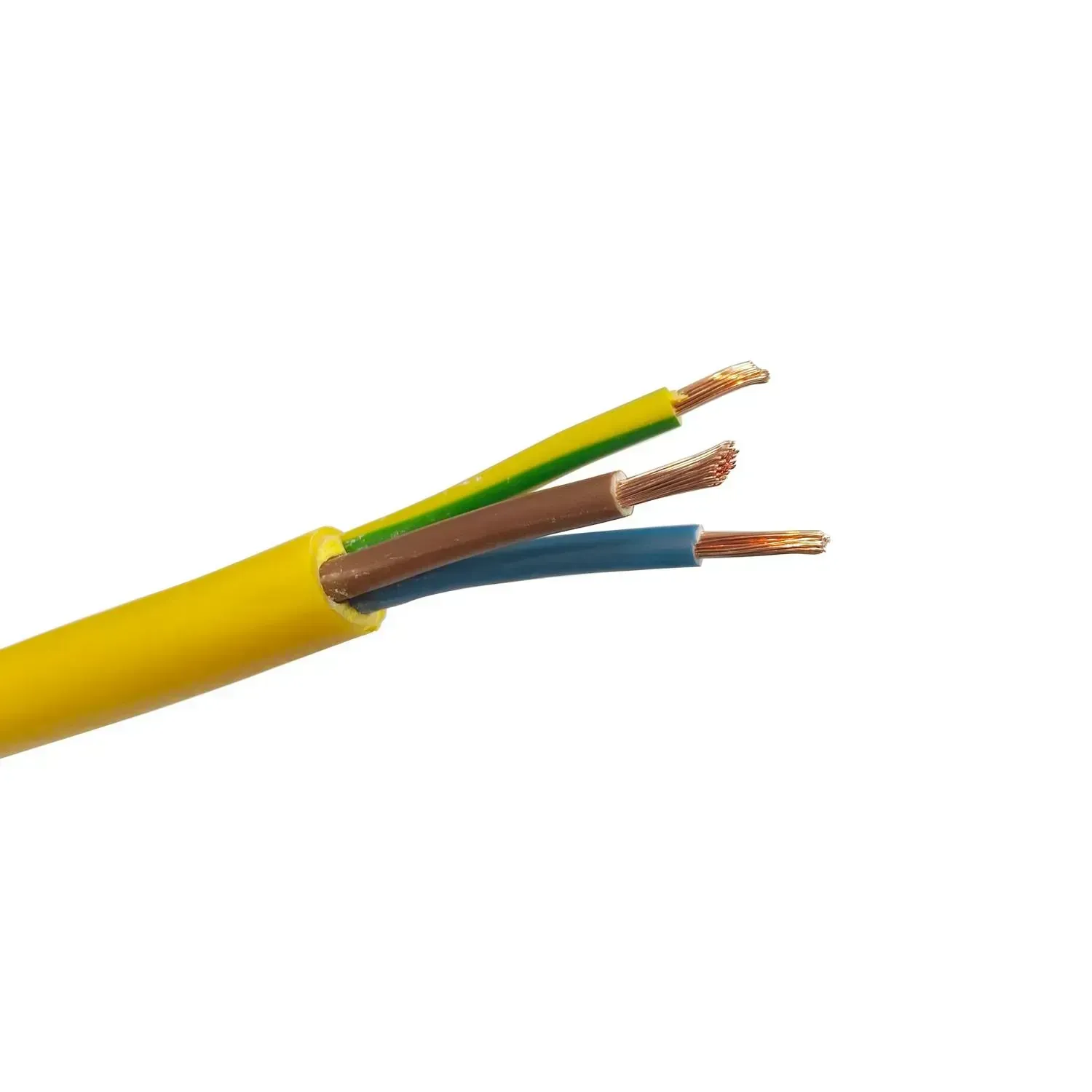

Photo is representative

Arctic Grade Flexible Cable 3 Core 1.5mm2 300 500V Yellow PVC BS6004

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315ARTYELLOW
GTIN —
Stock status: In stock

priced per meter

Net price: £0.89

Gross price

£1.07

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

3 core 1.5mm² arctic grade flexible cable with yellow PVC outer sheath. Manufactured to BS6004. Suitable for portable tools and temporary lighting, indoors and out.

Class 5 stranded copper conductors rated down to -40°C flexing — handles cold-weather site work. Flame retardant to BS EN 60332-1-2.

  • 300/500V rated
  • Stranding: 30⁄0.25mm
  • OD: 8.2mm
  • Gland size: 20S
  • Min. bending radius (fixed): 6 × OD
Specifications

Conductor Size

1.5 mm²

Number of Cores

3

Voltage Rating

300/500 V

Conductor Type

Class 5 flexible, stranded copper

Stranding

30/0.25 mm

Insulation Material

PVC

Sheath Material

PVC

Sheath Colour

Yellow

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

8.2 mm

Weight

90 kg/km

Gland Size

20S

Min. Bending Radius (Fixed)

6 × overall diameter

Temperature Range (Flexing)

-40°C to +70°C

Flame Retardancy

BS EN 60332-1-2

Standards

BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN 50265, BS6004
