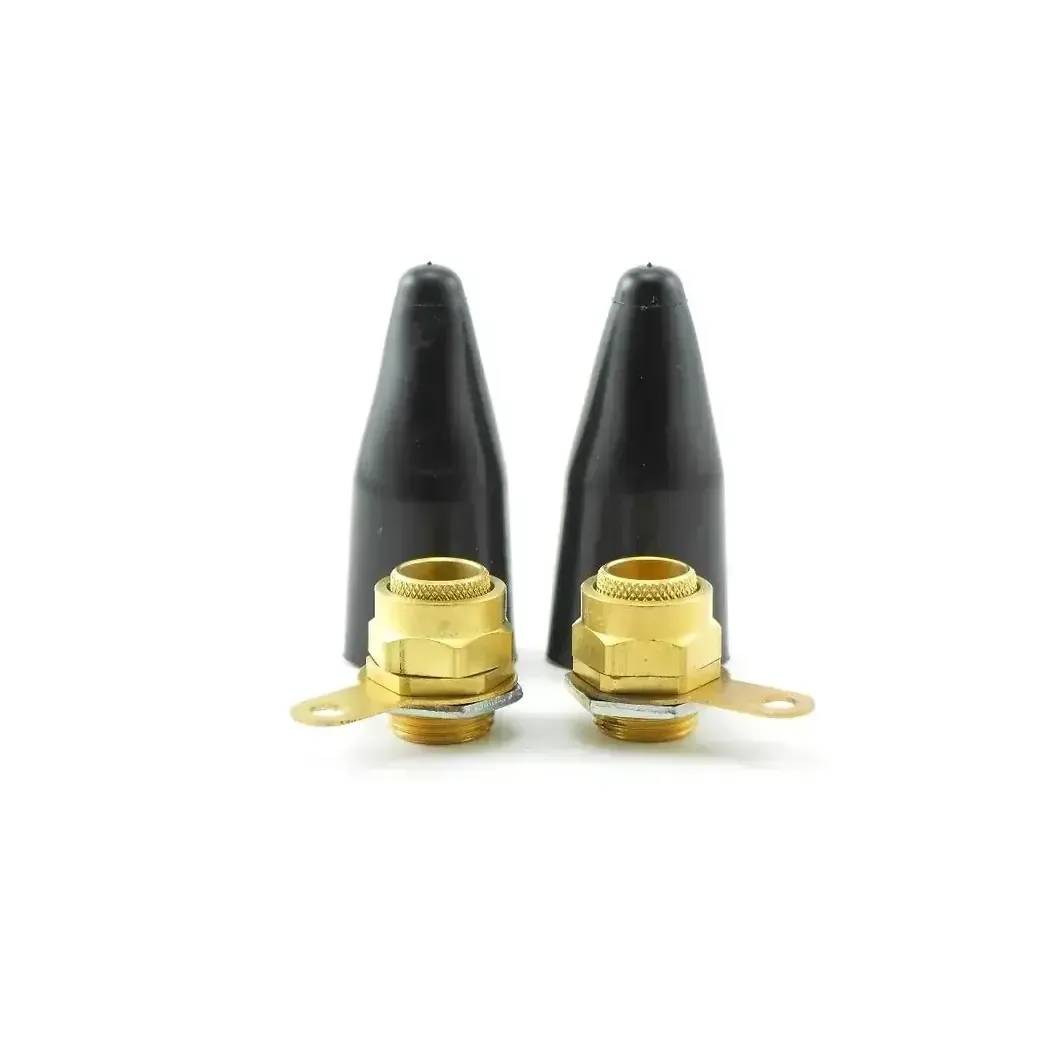

Photo is representative

BW M20 Brass Gland for SWA Cable — BW20C

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BW20C
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £2.24

Gross price

£2.69

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4-part BW brass gland for single wire armoured (SWA) cable. M20 thread. Indoor use.

Longer body design protects armour wires from impact. Provides mechanical cable retention and electrical continuity through armour wire termination. Compatible with all types of SWA cable.

  • Thread size: M20
  • IP rating: IP54
  • Construction: Brass
  • Pack contents: gland, shroud, locknut, earth tag
Specifications

Thread Size

M20

IP Rating

IP54

Material

Brass

Gland Type

BW 4-part

Armour Type

Single Wire Armour (SWA)

Application

Indoor
