E1ZM10 - Tele Electronic Timer E1ZM10

Photo is representative

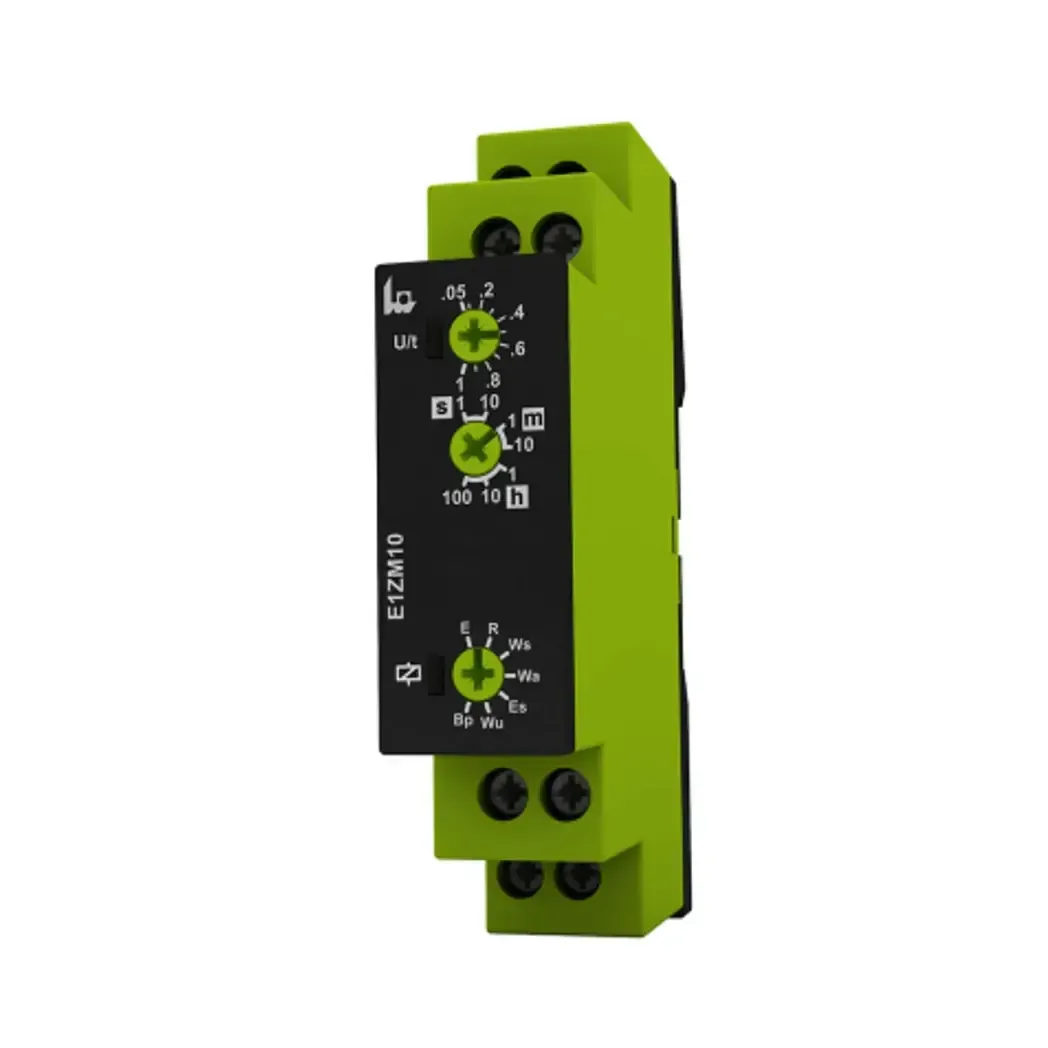

Tele Electronic Timer E1ZM10

Electronic Timer Tele E1ZM10 with multifunction time ranges for 24V-240V AC/DC circuits. Output circuit features 1 potential free change over contact.

Product Information

Stock Code E1ZM10
MPN E1ZM10
GTIN —
Stock status: In stock
Price: £59.86
incl. VAT, 20% priced individually

Product Features
Fusing 8A Fast Acting
Control Input Terminals A1-B1 with Max. Line Length of 10m
Rated Voltage 250V A.C.
Trigger Level Automatic Adaption to Supply Voltage
Output Circuit 1 Potential Free Change Over Contact
Electrical Life 2 x 10^5 Operations at 1000VA Resistive Load
Mechanical Life 20 x 10^6 Operations
Contact Material AgNi
Switching Capacity 2000VA (8A / 250V A.C.)
Rated Surge Voltage 4kV
Switching Frequency Max. 6/min at 1000VA Resistive Load (in accordance with IEC 60947-5-1)
Degree of Protection Basic Insulation
Overvoltage Category III (in accordance with IEC 60664-1)
Interference Immunity Class A
Insulation Test Voltage Supply Circuit - Output Circuit: 1680V
Min. Control Pulse Length D.C. 50ms / A.C. 100ms
Prospective Current Value 1000A / 8A
