Click MiniGrid 2 Way Switch Module 10AX Brushed Steel

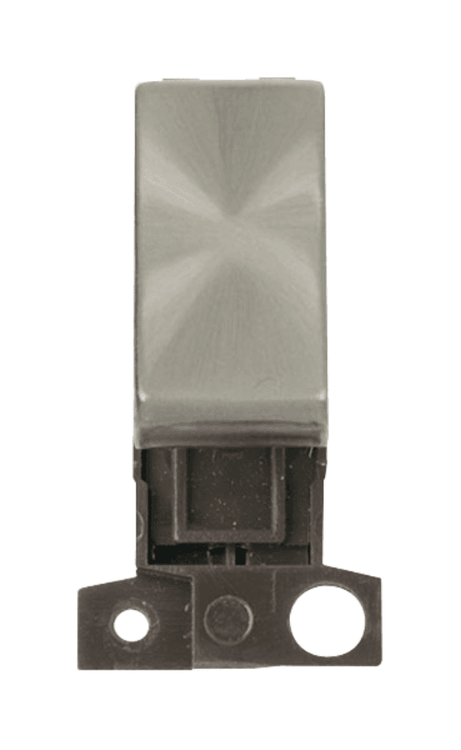

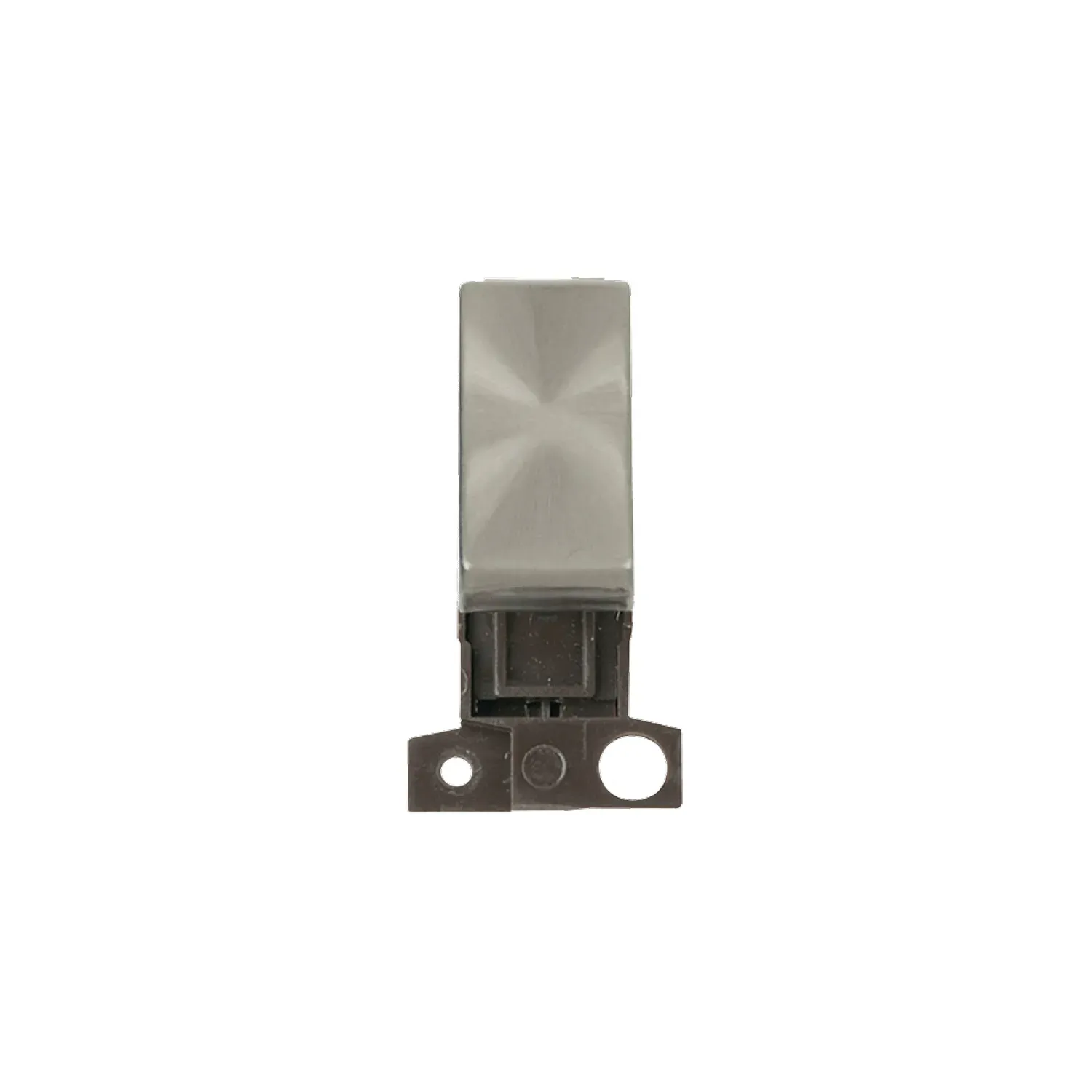

Photo is representative

Click MiniGrid 2 Way Switch Module 10AX Brushed Steel

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MD002BS
GTIN —
Stock status: In stock

priced individually

Net price: £2.42

Gross price

£2.91

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Click MiniGrid 2-way switch module for euro grid systems. Brushed stainless steel finish with urea rocker. Fits any standard 25x50mm euro grid plate — not locked to Click plates.

10AX rating covers fluorescent and inductive loads. Screw terminals accept 4 x 1.5mm² or 2 x 2.5mm². Minimum back box depth 16mm, or 25mm behind a flat plate.

  • 10AX inductive load rating
  • Screw terminals: 4 x 1.5mm² or 2 x 2.5mm²
  • Min back box depth: 16mm (25mm flat plate)
  • Compliant with BS EN 60669-1
Specifications

Current Rating

10AX

Voltage

250V~

Frequency

50Hz

Switch Function

2 Way

Inductive Load

Suitable for fluorescent or inductive loads

Module Size

25 x 53mm

Depth

20mm

Min Back Box Depth

16mm (25mm flat plate)

Termination

Screw

Terminal Size

Ø3.5mm

Terminal Capacity

4 x 1.5mm² or 2 x 2.5mm²

Terminal Torque

0.5Nm

Operating Temperature

-5 to +40°C

Finish

Brushed Stainless

Standards

BS EN 60669-1

Warranty

20 years

Documents

other Md002Bs

datasheet MD002BS Datasheet
