14005000 - Stego 60W Panel Heater 110-230V Self Regulating HG 14005000

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

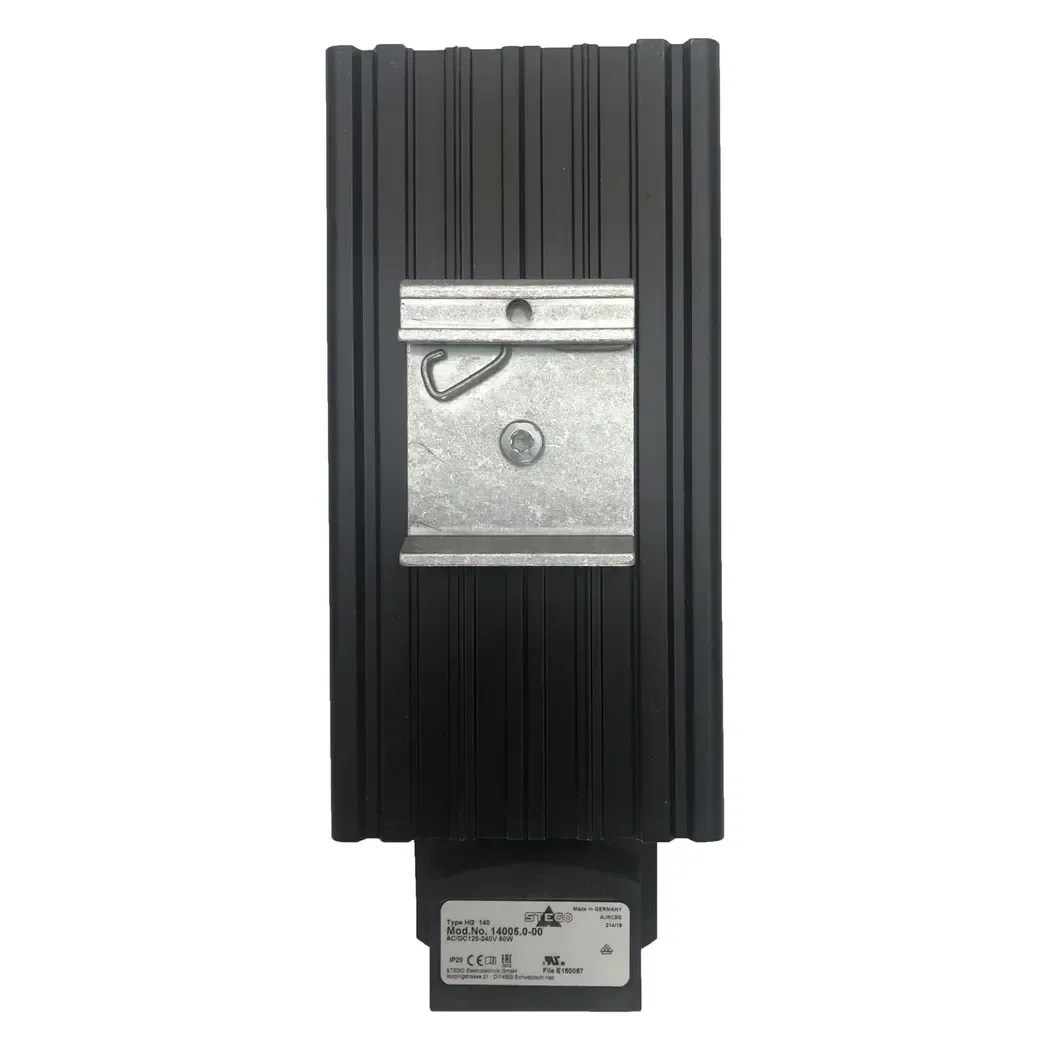

Stego 60W Panel Heater 110-230V Self Regulating HG 14005000

Compact size panel heater with wide voltage range, self-regulating heating power that adjusts to ambient temperature. Features cage clamp connectors for quick and easy wiring and DIN rail mountable design.

Stock Code 14005000
Out of stock

Product Features

  • Humidity

    Max. 90 %RH (Non-Condensing)

  • Mounting

    Mounting Clip for 35 mm DIN Rail EN 60715

  • Approvals

    UL File No. E150057, VDE, EAC

  • Connection

    3 Cage Clamps for Solid Wire AWG 20-14 and Stranded Wire AWG 20-16

  • Heater Body

    Extruded Aluminium Profile Anodized

  • Heating Element

    PTC Resistor - Temperature Limiting

  • Protection Class

    Grounded (I) / IP20

  • Connection Casing

    Plastic UL 94V-0 Black

  • Mounting Position

    Vertical

  • Temperature Range

    -49 to +158 F (-45 to +70 C)

  • Operating Voltage1

    AC/DC 120-240 V
