14001000 - Stego 30W Panel Heater 110-230V Self Regulating HG 140 14001000

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

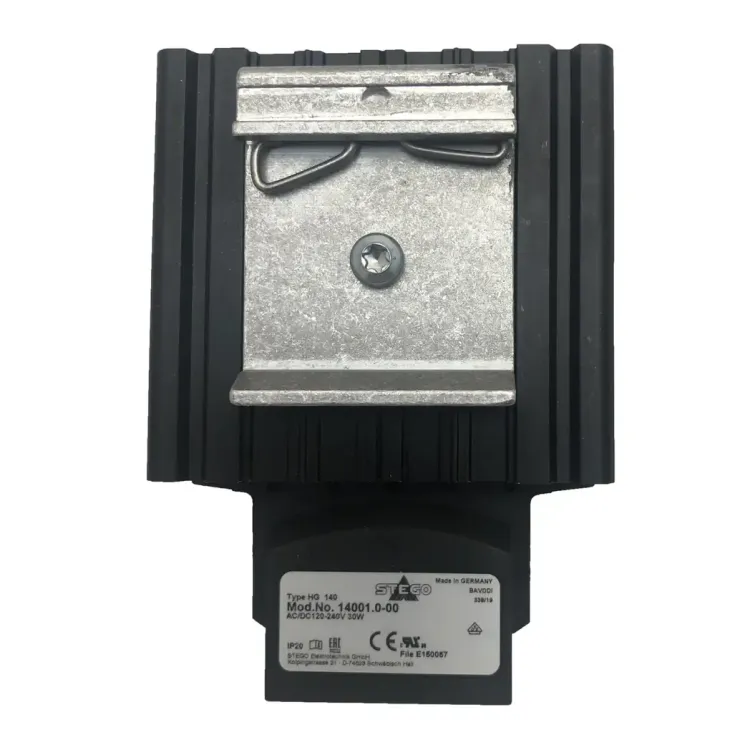

Stego 30W Panel Heater 110-230V Self Regulating HG 140 14001000

Compact size wide voltage range heating power adjusts to ambient temperature. Cage clamp connectors for quick & easy wiring. DIN rail mountable. Prevent condensation damage and maintain temperature above the minimum value in enclosures with this self-regulating panel heater featuring an aluminium profile body design for even heat distribution.

Stock Code 14001000
Few in stock
Price 104.24 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    14001000

  • Mounting

    Clip for 35 mm DIN Rail EN 60715

  • Approvals

    UL File No. E150057, VDE, EAC

  • Heater Body

    Extruded Aluminium Profile Anodized

  • Heating Element

    PTC Resistor - Temperature Limiting

  • Mounting Position

    Vertical

  • Operating Voltage

    AC/DC 120-240 V (min. 110 V max. 265 V)

  • Operating / Storage Humidity

    Max. 90 %RH (Non-Condensing)

  • Operating / Storage Temperature

    -49 to +158 F (-45 to +70 C)

  • Protection Class / Protection Type

    I (Grounded) / IP20
