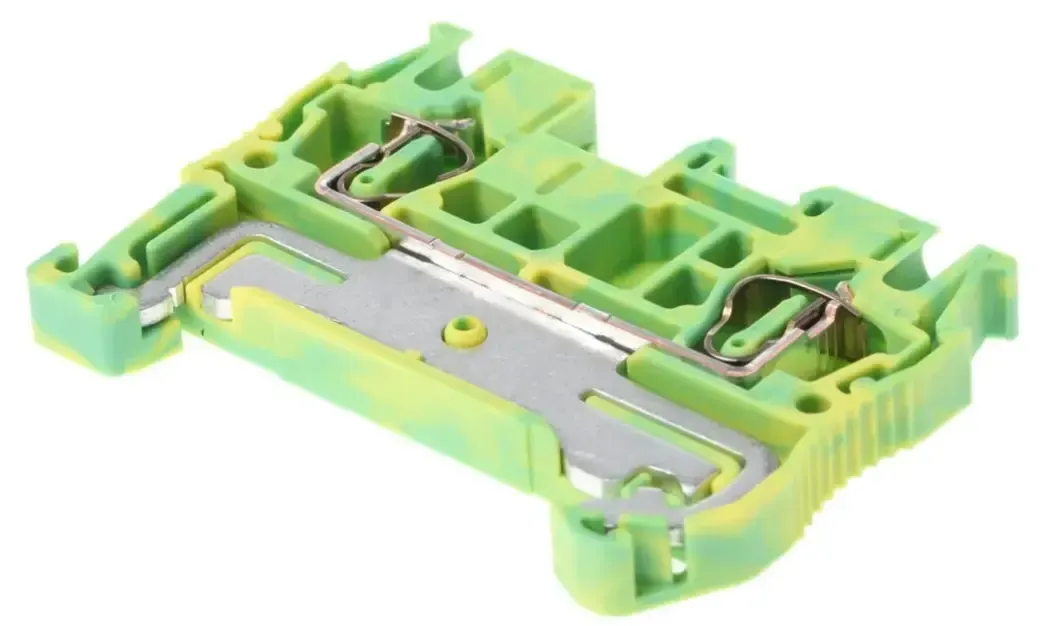

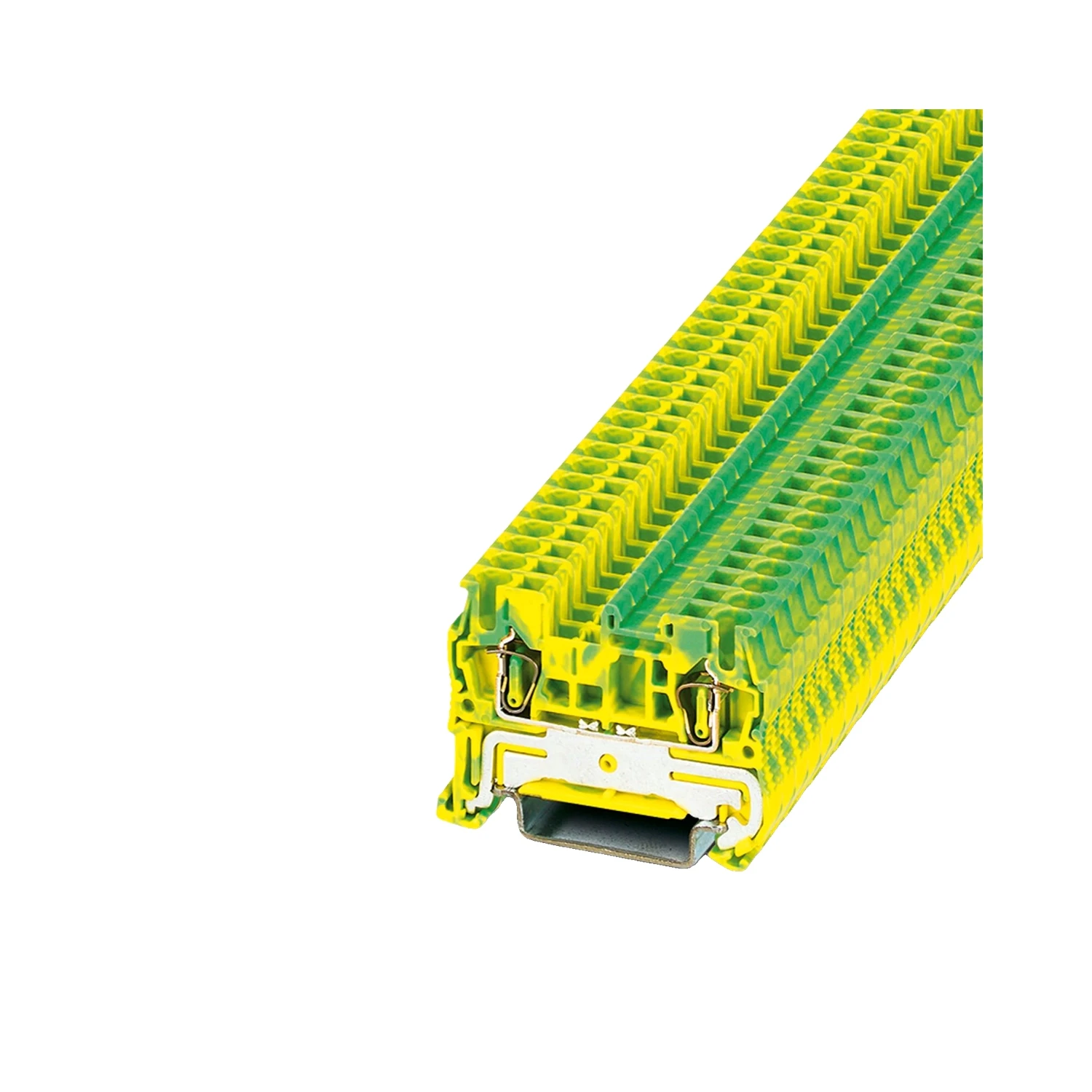

Phoenix Contact ST 2.5-PE Spring-Cage PE Terminal Block 2.5mm² Green-Yellow

Photo is representative

Phoenix Contact ST 2.5-PE Spring-Cage PE Terminal Block 2.5mm² Green-Yellow

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3031238
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £2.63

Gross price

£3.16

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Spring-cage PE terminal block from the Phoenix Contact ST series. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Two-connection, single-row, green-yellow — for grounding circuits in industrial control panels.

ATEX/IECEx rated for Zone 2⁄22 environments. Takes rigid conductors from 0.08–4 mm² and flexible from 0.08–2.5 mm². Stripping length 8–10 mm.

  • Nominal cross-section: 2.5 mm²
  • Operating temp: -60 °C to 85 °C
  • Rated surge voltage: 8 kV, Overvoltage Cat. III
  • Width: 5.2 mm
  • UL 94 V0 insulation, PA body
Specifications

Connection Method

Spring-cage

Nominal Cross-Section

2.5 mm²

Conductor Cross-Section (Rigid)

0.08–4 mm²

Conductor Cross-Section (Flexible)

0.08–2.5 mm²

AWG Range (Rigid)

28–12 AWG

AWG Range (Flexible)

28–14 AWG

Stripping Length

8–10 mm

Number of Connections

2

Number of Rows

1

Mounting Type

NS 35/7.5, NS 35/15

Overvoltage Category

III

Rated Surge Voltage

8 kV

Operating Temperature

-60 °C to 85 °C

Ambient Temperature (Operation)

-60 °C to 110 °C

Ambient Temperature (Storage/Transport)

-25 °C to 60 °C

Ambient Temperature (Assembly)

-5 °C to 70 °C

Degree of Pollution

3

Flammability Rating

UL 94 V0

Insulating Material

PA

ATEX/IECEx Classification

II 2 GD Ex eb IIC Gb

Width

5.2 mm

Height

48.5 mm

Depth on NS 35/7.5

36.5 mm

Depth on NS 35/15

44 mm

Colour

Green-yellow

Grounding Foot

Yes

Standard

IEC 60947-7-2

Max Power Dissipation

0.77 W

Documents

datasheet Phoenix Contact 3031238 Datasheet
