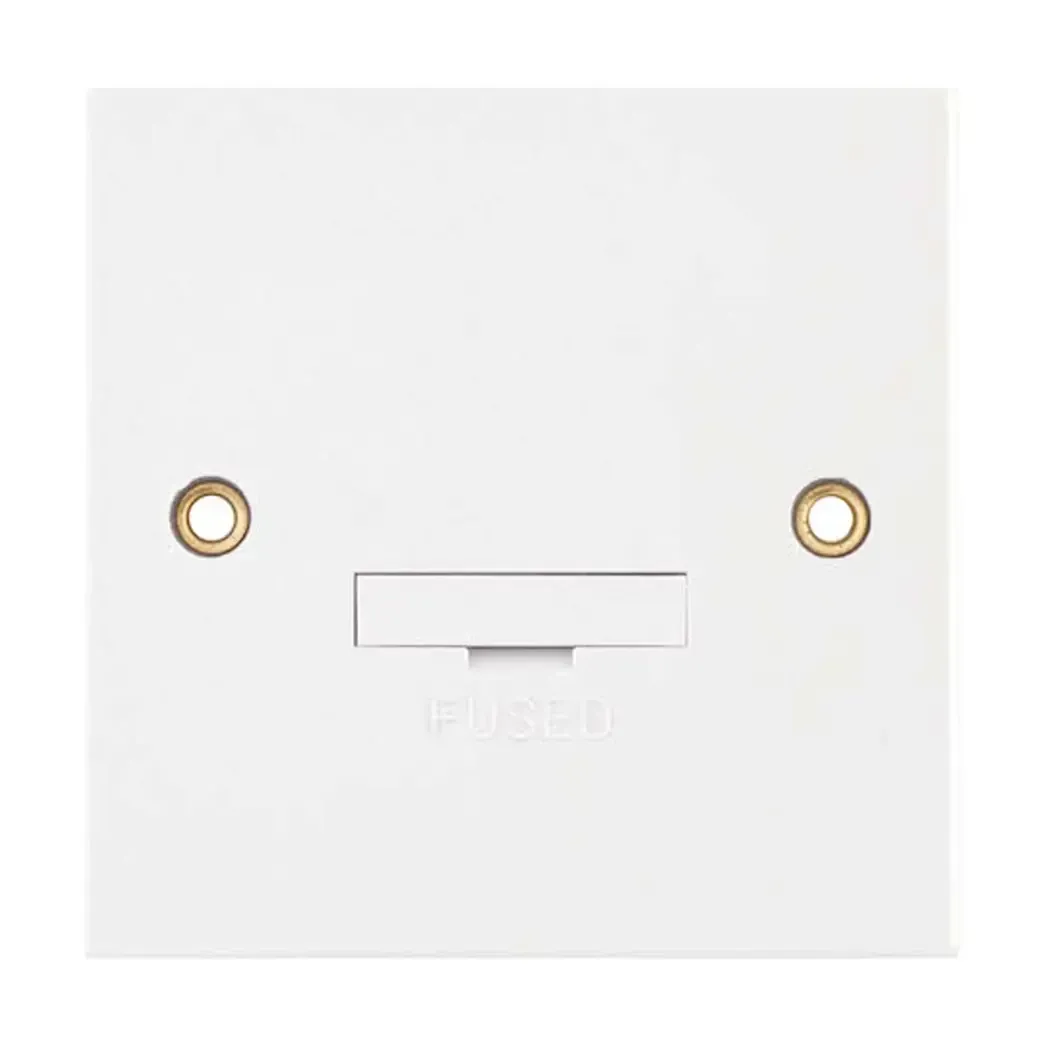

Selectric 13A Unswitched Fused Connection
The Selectric LG9228 is a 13A unswitched fused connection unit ideal for fixed appliances. Made from fire-resistant Bakelite with screw terminals, it provides a safe and reliable connection point. This square profile unit measures 86mm x 86mm x 11mm and requires a minimum back box depth of 25mm.
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
SKU
LG9228
-
Brand
Selectric
-
Model
LG9228
-
Range
Selectric Square
-
Style
Square Profile
-
Finish
White
-
Switched
No
-
Warranty
25 years
-
Earth Strap
Mild Steel
-
Rated Voltage
250V, 50Hz
-
Terminal Size
Ø5mm
-
Neon Indicator
No
-
Product Marking
Fused
-
Plate Dimensions
86mm x 86mm x 11mm
-
Termination Type
Screw
-
Ingress Protection
IP20
-
Twin Earth Terminals
Yes
-
Flex Outlet Available
No
-
Inductive Load Rating
13A
-
Minimum Back Box Depth
25mm
-
Operational Temperature
-5℃ to +40℃
-
Terminal Capacity Solid
3 x 2.5mm² or 2 x 4mm²
-
Anti-Microbial Certified
No
-
Front Plate And Fuse Drawer
Bakelite
-
Fuse Fitted Rating And Type
13A (BS 1362)
-
Terminals And Terminal Screws
Steel & Yellow Passivated
-
Plate Fixing Centres Horizontal
60.3mm
