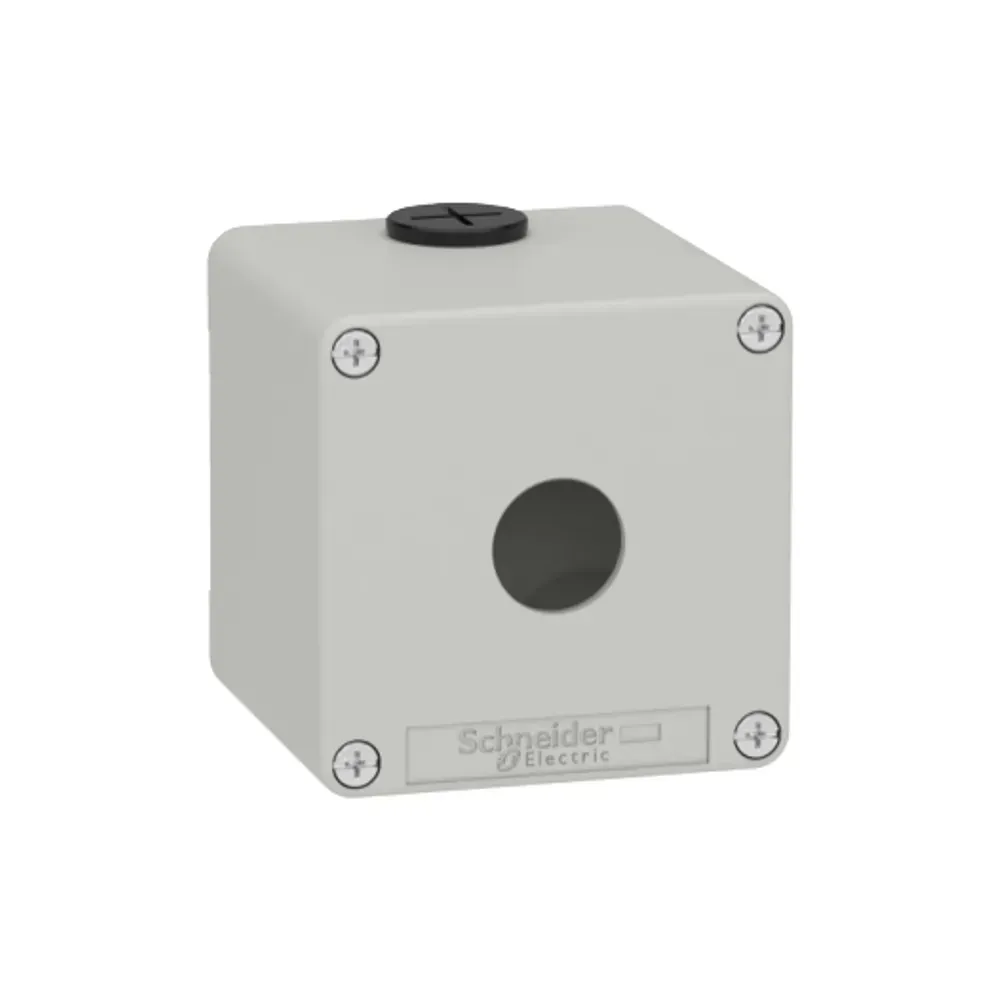

Schneider Harmony XAP M20 Die Cast 1 Way Control Station 80x80mm

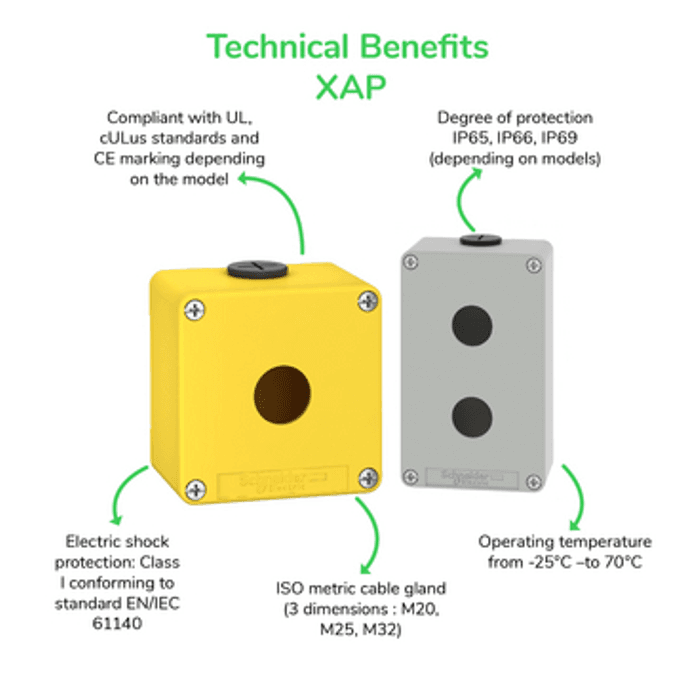

The Schneider Harmony XAP die-cast empty control station offers a durable solution for mounting Ø 22 mm control and signalling units. Featuring a grey zinc alloy enclosure with IP65/66/69 protection, it ensures reliable performance in harsh environments.

  • Enclosure Material: Robust die-cast zinc alloy
  • Cut-Out Size: Single Ø 22 mm for control units
  • Dimensions: 80x80x77 mm with 74.5 mm usable depth
  • Protection Class: IP65, IP66, IP69 compliant with EN/IEC standards
  • Cable Entries: Two M20 x 1.5 threaded cable glands
  • Colour: Grey (RAL 7035) metal enclosure
Stock Code: XAPD1501
In stock
Price 48.40 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Range

    Harmony XAP

  • Product Type

    Die-cast empty control station

  • Cut-Out Diameter

    22 mm

  • Front Plate Size

    80 x 80mm

  • Usable Depth

    74.5mm

  • Overall Dimensions

    80 x 80 x 77mm

  • Enclosure Material

    Die cast zinc alloy

  • Colour

    Grey RAL 7035

  • IP Protection Degree

    IP65, IP66, IP69

  • Cable Entry Thread

    M20 x 1.5

  • Number of Cable Glands

    2

  • Number of Cut-Outs

    1

  • Certification

    UL cULus
