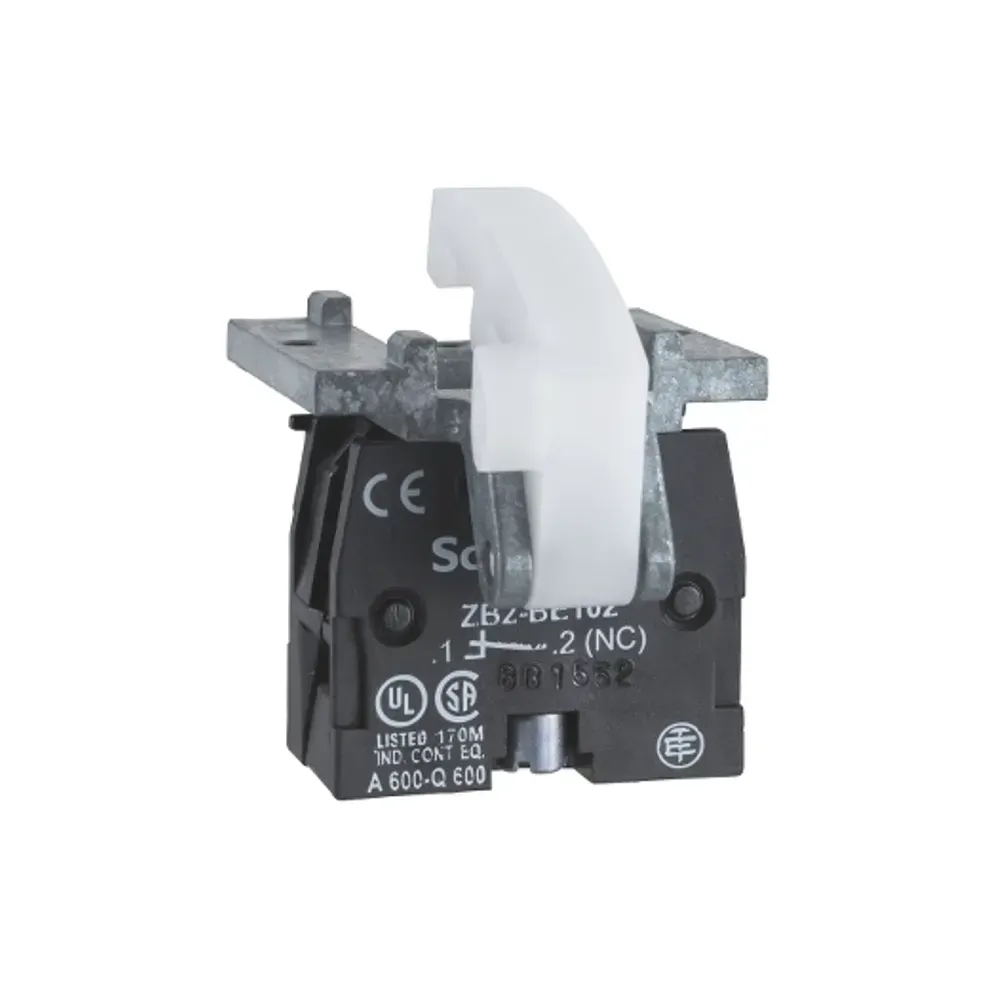

Schneider Harmony XACS102 Contact Block 1NC Spring Return Base Mount

Photo is representative

Schneider Harmony XAC Contact Block 1NO | Slow-Break, Base Mounting, Spring Return

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code XACS101
GTIN —
Stock status: 5 in stock

priced individually

Net price: £17.91

Gross price

£21.50

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Schneider Harmony XAC Contact Block with 1NO configuration is designed for reliable control circuit applications. Featuring slow-break operation and spring return, this block supports base mounting and ensures robust mechanical endurance. It provides a rated insulation voltage up to 600V and supports screw clamp terminals for secure connections. Designed for long life and dependable performance, ideal for custom panel builds and industrial environments.

Specifications

Range of Product

Harmony XAC

Contact Block Type

Single 1NO (Normally Open)

Mounting

Base mounting

Contact Operation

Slow-break

Operator Type

Spring return

Terminal Connections

Screw clamp, 0.5–2.5 mm²

Rated Insulation Voltage

600 V (IEC 60947-1)

Conventional Thermal Current

10 A

Mechanical Durability

1,000,000 cycles

Short Circuit Protection

10 A gG cartridge fuse

Frequently asked questions

What is the electrical rating of this 1NO contact block?

The contact block is rated up to 600V for insulation, with an AC-15 rating of A600 (240V/3A, 600V/1.2A) and DC-13 rating of Q600 (250V/0.27A, 600V/0.1A), conforming to IEC 60947-5-1.

What type of terminals are used on the Harmony XAC 1NO contact block?

It uses screw clamp terminals compatible with 0.5 to 2.5 mm² conductors without cable ends or 0.5 to 1.5 mm² with cable ends, ensuring secure connections.

Which operator types and mounting are supported?

This model features a spring return operator and is designed for base mounting, providing stability in control stations.

What short-circuit protection is required?

The contact block requires a 10 A cartridge fuse type gG for effective short-circuit protection as recommended by the manufacturer.

Is this contact block compatible with the XACA series enclosures?

Yes, the Harmony XAC contact block 1NO is specifically designed for compatibility with XACA series enclosures.
