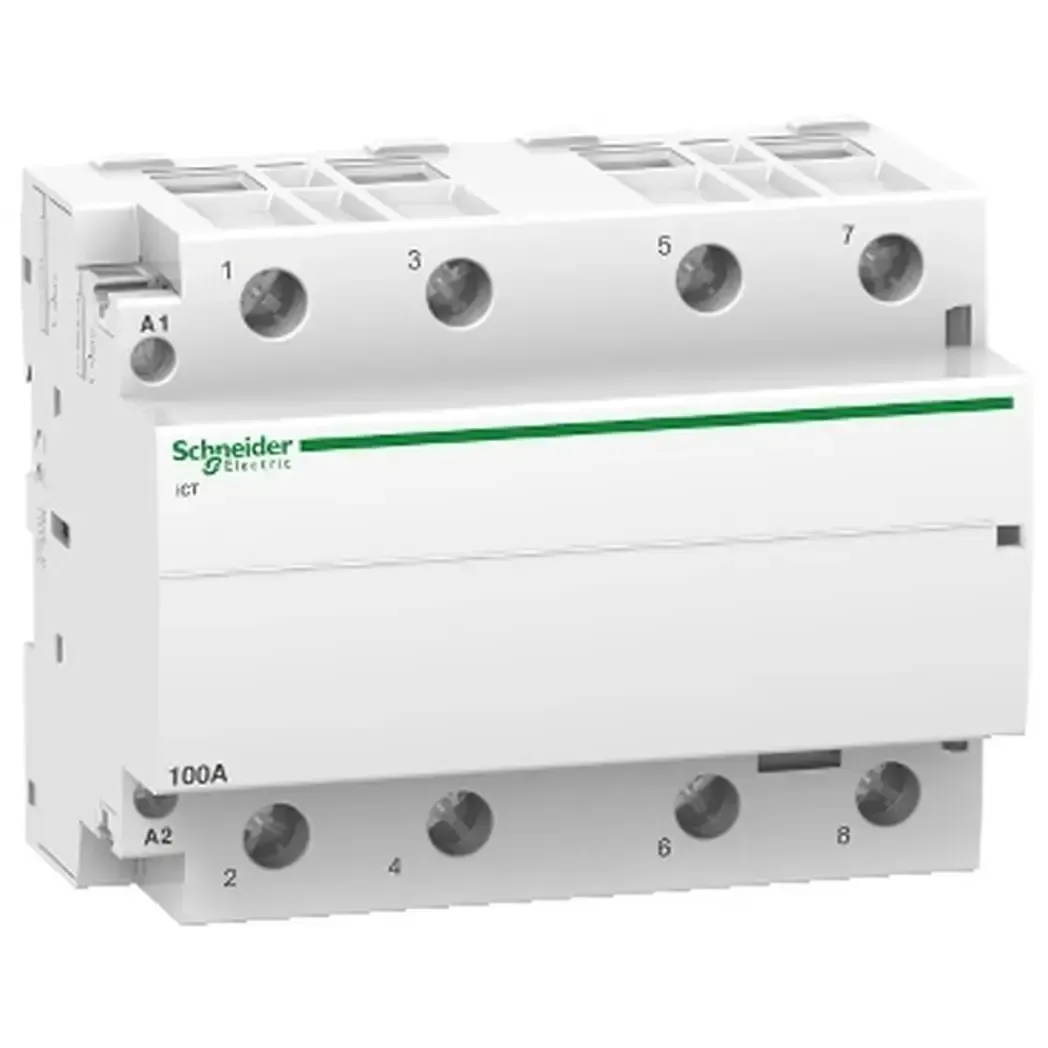

Schneider Contactor Modular 4P 100A N/O
The Schneider Contactor Modular 4P 100A N/O is a versatile remote control device with 4 normally open contacts. It features a rated operational current of 100A for AC-7a and a control circuit voltage of 220-240VAC. Suitable for control circuits and HVAC system applications, it complies with the EN/IEC 61095 standard, offering an electrical endurance of up to 30000 cycles. With a DIN rail mountable design and compact dimensions of 85mm (W) x 108mm (H) x 60mm (D), this white-colored contactor provides IP20 and IP40 protection, making it suitable for a temperature range of -5°C to 60°C.
Product Features
-
SKU
A9C20884
-
Color
White
-
Mounting
DIN Rail
-
Dimensions
(W) 85mm x (H) 108mm x (D) 60mm
-
Control Type
Remote Control
-
Network Type
AC
-
Number of Poles
4P
-
Temperature Range
-5°C to 60°C
-
Contact Composition
4 NO
-
Operational Current
100A
-
Degree of Protection
IP20 and IP40
-
Utilisation Category
AC-1, AC-7A
-
Control Circuit Voltage
220-240 V AC
-
IEC Standard Compliances
EN 60947-4-1, EN 61095, IEC 61095, IEC 60947-4-1
