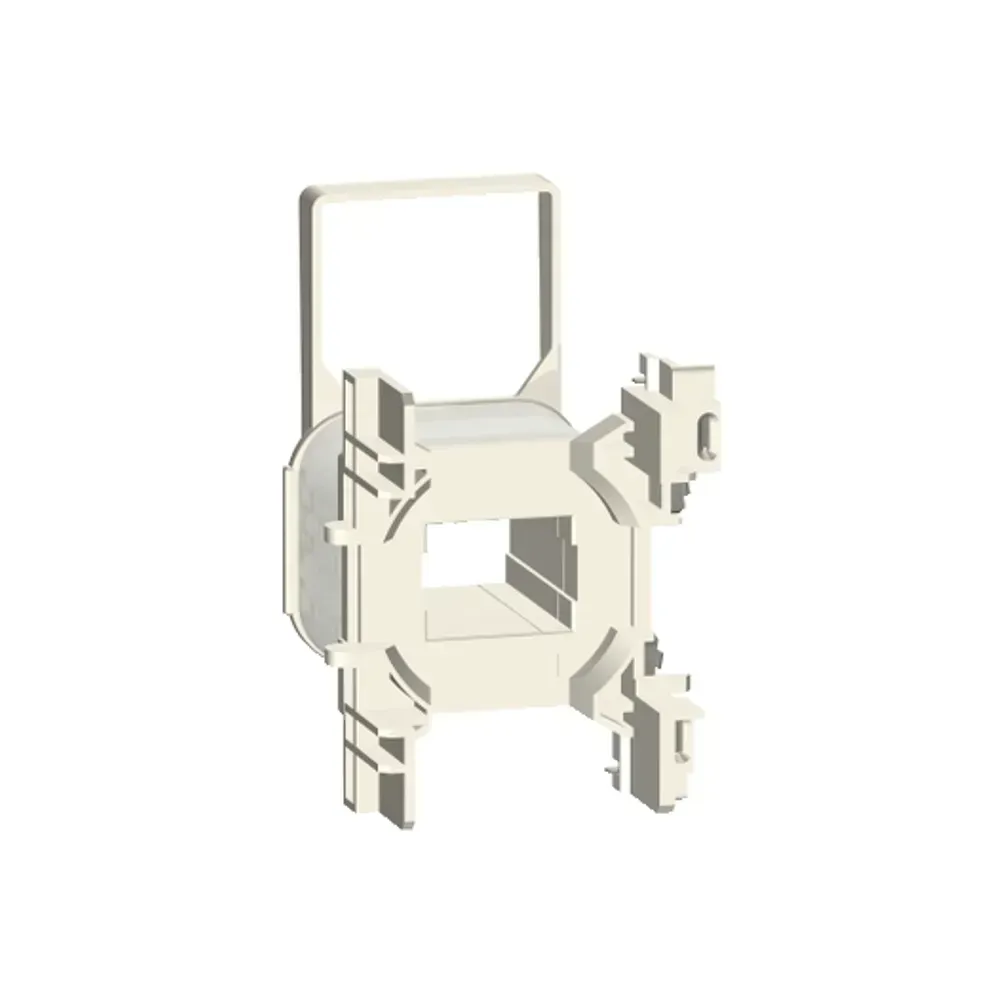

Schneider LXD3B7 24V AC Coil for TeSys Deca LC1D40A to D65A Contactors

Photo is representative

Schneider Contactor Coil 24V AC for 40-65A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LXD3B7
GTIN —
Stock status: In stock

priced individually

Net price: £58.33

Gross price

£69.99

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

The Schneider TeSys Deca Contactor Coil provides reliable control for 40-65A contactors, operating on 24V AC at 50/60Hz. Designed for heavy-duty industrial use, it offers long mechanical durability, high operating rates, and compatibility with LC1DT60A and LC1D40A…D65A models. This coil ensures robust switching performance for demanding installations and high-duty cycles, supporting efficient, safe operation for professional environments.

Specifications

Brand

Schneider

Range

TeSys Deca

Product Type

Contactor Coil

Control Circuit Voltage

24V AC 50/60Hz

Compatible Contactors

LC1DT60A, LC1D40A...D65A, LC1DT80A

Current Range

40-65A

Mechanical Durability

6 million cycles

Operating Temperature Range

-5°C to 60°C

Inrush Power

160 VA (50/60Hz)

Net Weight

0.07 kg

Documents

other LXD3B7 Datasheet

Frequently asked questions

Which contactor models is this coil compatible with?

The coil is compatible with Schneider LC1DT60A, LC1DT80A, and LC1D40A through LC1D65A contactors, ensuring reliable operation for equipment rated between 40 and 65A.

What are the operational voltage limits for the control circuit?

The coil operates between 0.8...1.1 Uc at 50 Hz and 0.85...1.1 Uc at 60 Hz, with drop-out occurring at 0.3...0.6 Uc, all at temperatures below 60°C.

What is the power consumption during inrush and holding?

Inrush power is 160 VA at both 50 and 60 Hz (cos phi 0.75), and hold-in power is 15 VA at both frequencies (cos phi 0.3), measured at 20°C.

What is the mechanical durability of this coil?

The Schneider 24V AC contactor coil offers mechanical durability of up to 6 million cycles, supporting high-frequency industrial applications.

What ambient temperature range is supported for operation?

The coil supports operation in ambient air temperatures from -5°C to 60°C, ensuring reliable performance in a wide range of industrial environments.
