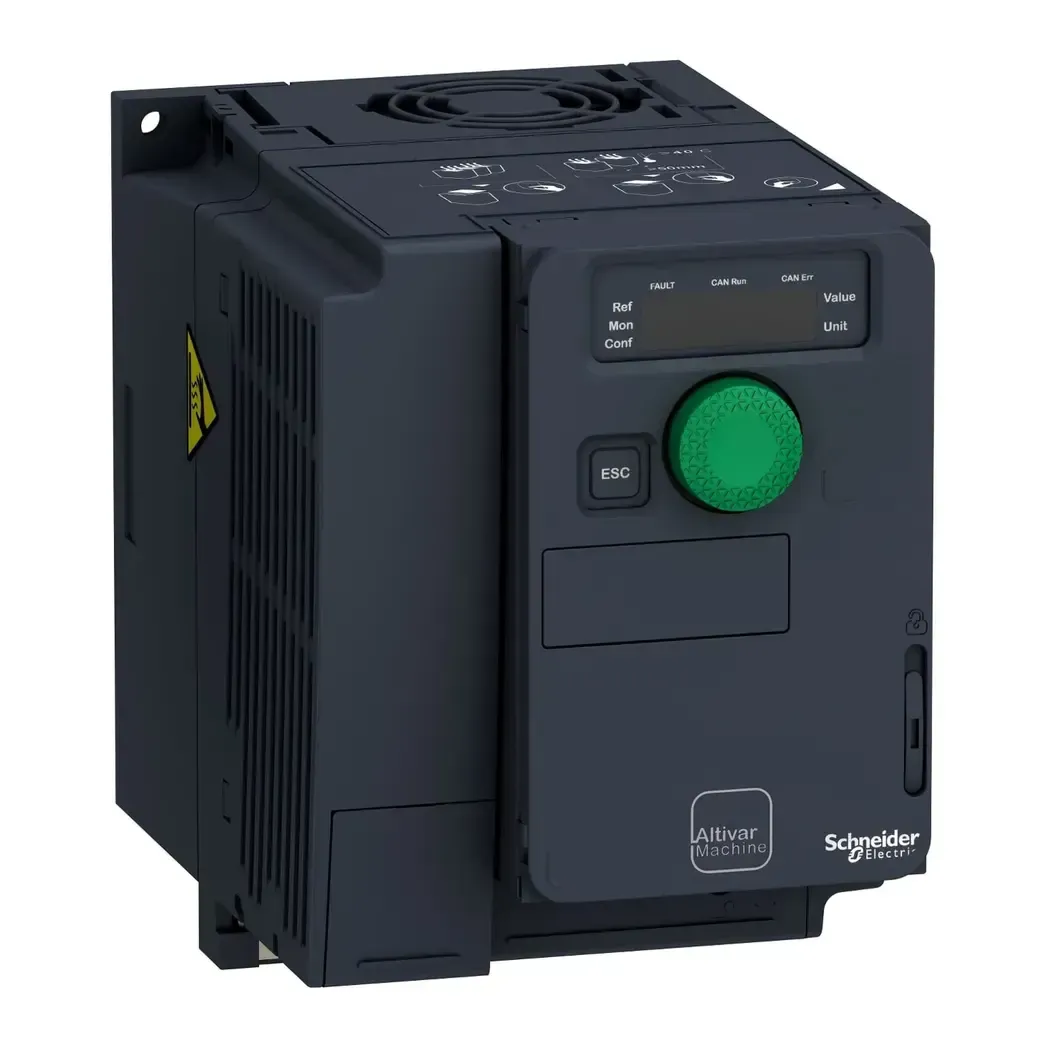

ATV320U15N4C - Schneider 1.5 kW Variable Speed Drive Altivar Machine 380...500 V 3 Phases Compact ATV320U15N4C

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

Schneider 1.5 kW Variable Speed Drive Altivar Machine 380...500 V 3 Phases Compact ATV320U15N4C

The Schneider 1.5 kW Variable Speed Drive Altivar Machine ATV320 is a reliable, easy-to-integrate drive for three-phase motors from 0.18 to 15 kW. It is designed for complex machines, with a compact wall mount format. Suitable for small industrial equipment, the ATV320 is packed with features to enhance machine performance and reduce costs.

Stock Code ATV320U15N4C
Few in stock
Price 439.23 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    ATV320U15N4C

  • Depth

    158.0 mm

  • Width

    105.0 mm

  • Format

    Compact

  • Height

    142.0 mm

  • Variant

    Standard Version

  • Net Weight

    1.2 kg

  • Line Current

    3.6 A at 380 V (Heavy Duty), 2.8 A at 500 V (Heavy Duty)

  • Product Type

    Variable Speed Drive

  • Mounting Mode

    Wall Mount

  • Apparent Power

    2.4 kVA at 500 V (Heavy Duty)

  • Network Frequency

    50...60 Hz

  • Power Dissipation

    32.0 W at 380 V (Switching Frequency 4 kHz)

  • Prospective Line Isc

    5 kA

  • Specific Application

    Complex Machines

  • Maximum Input Current

    3.6 A

  • Maximum Output Voltage

    500 V

  • Base Load Current at High Overload

    7.1 A

  • Relative Symmetric Network Frequency Tolerance

    5%

Brand

Schneider Electric
