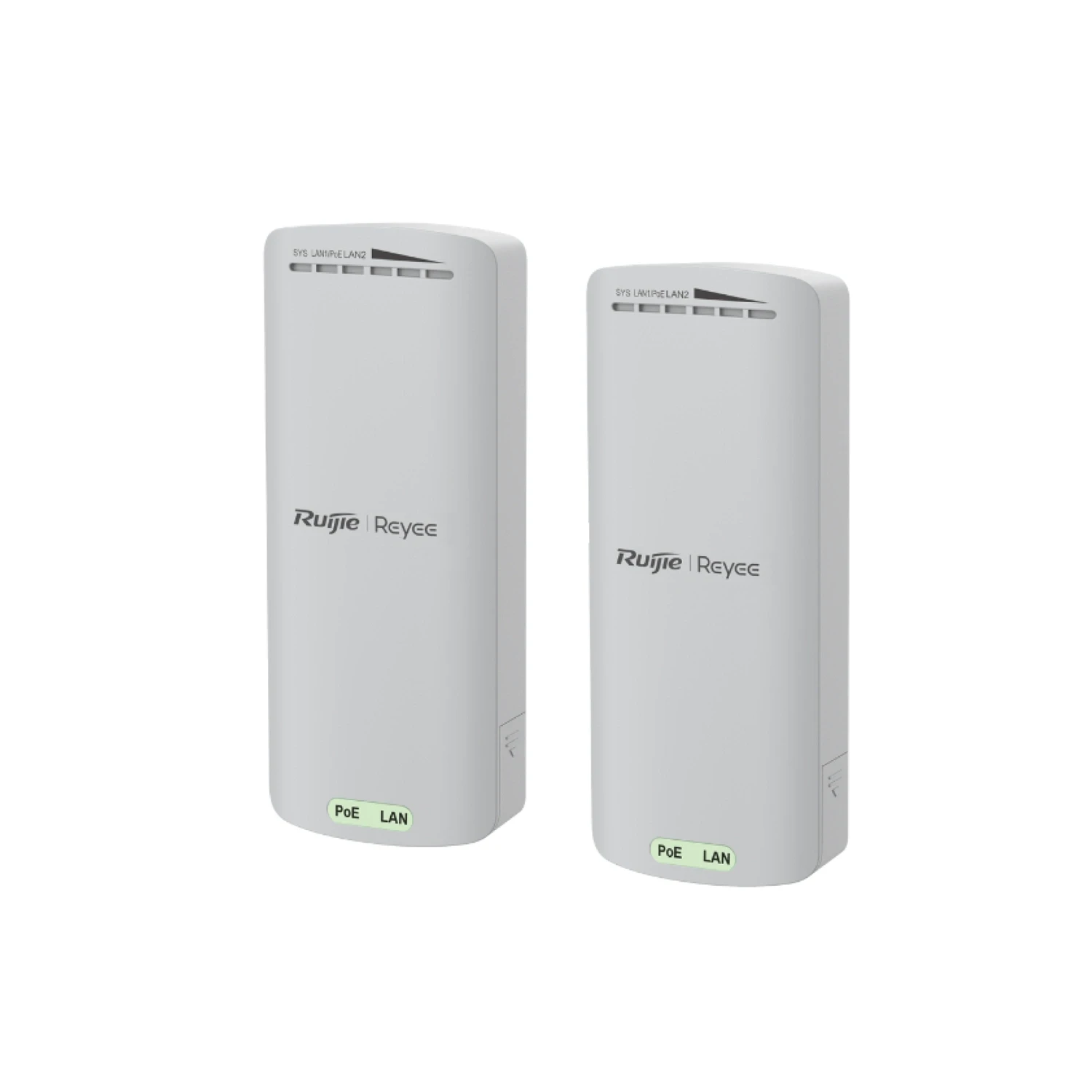

Reyee RG-EST100-E 2.4GHz 300Mbps PtP Wireless Bridge Kit IP55 500m 2 Pack

Photo is representative

Reyee RG-EST100-E 2.4GHz 300Mbps PtP Wireless Bridge Kit IP55 500m 2 Pack

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-EST100-E
GTIN —
Stock status: In stock

pack of 2

More arriving soon

Net price: £61.58

Gross price

£73.90

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Pre-paired point-to-point wireless bridge kit. Two units in the box, factory-configured — no setup required out of the packaging. Designed for CCTV backhaul and outdoor elevator links up to 500m.

Each unit is IP55 rated for outdoor use, mounts to wall or pole, and runs off the included passive PoE injector or 12V DC adapter. One-touch pairing supported within 20m if reconfiguration is needed.

  • Wi-Fi 4 (802.11b/g/n), 2.4GHz, 2x2 MIMO, 300Mbps max
  • Bridge throughput: 60Mbps at 100m, 30Mbps at 500m (HT20)
  • Passive PoE in (12V DC), max 5W per unit
  • 8dBi built-in directional antenna, 70° H/V beamwidth
  • Operating temp: –30°C to +60°C
Specifications

Wi-Fi Standard

Wi-Fi 4 (IEEE 802.11n), compatible with 802.11b/g

Frequency Band

2.4 GHz (2.400–2.483 GHz)

Max Wireless Data Rate

300 Mbps

Channel Width

Auto / 20 / 40 MHz

Antenna

2 x 2 built-in directional, 8 dBi, 70° horizontal, 70° vertical

Max Transmit Power (EU/UK)

EIRP ≤ 20 dBm (2400–2483.5 MHz)

Max Bridge Distance

500 m

Bridge Throughput

60 Mbps at 100 m (HT20); 30 Mbps at 500 m (HT20)

LAN Ports

2 x 10/100BASE-T

Power Input

Passive PoE (12V DC, 1A) or DC adapter (12V, 1A)

AC Input (adapter)

100–240V AC, 50–60Hz, 0.3A

Max Power Consumption

5 W

IP Rating

IP55

Operating Temperature

–30°C to +60°C

Surge Protection

Service port: ±6 kV common mode; Power connector: ±4 kV common mode, ±2 kV differential

ESD Protection

Contact discharge 8 kV, air discharge 15 kV (Class B)

Mounting

Wall / Pole

Dimensions (W x D x H)

68.7 mm x 42 mm x 165.5 mm

Weight (unit)

0.14 kg

MTBF

400,000 hours

Certifications

CE, FCC, CB, ISED, cTUVus, EN62368-1

Documents

datasheet RG-EST100-E Datasheet
