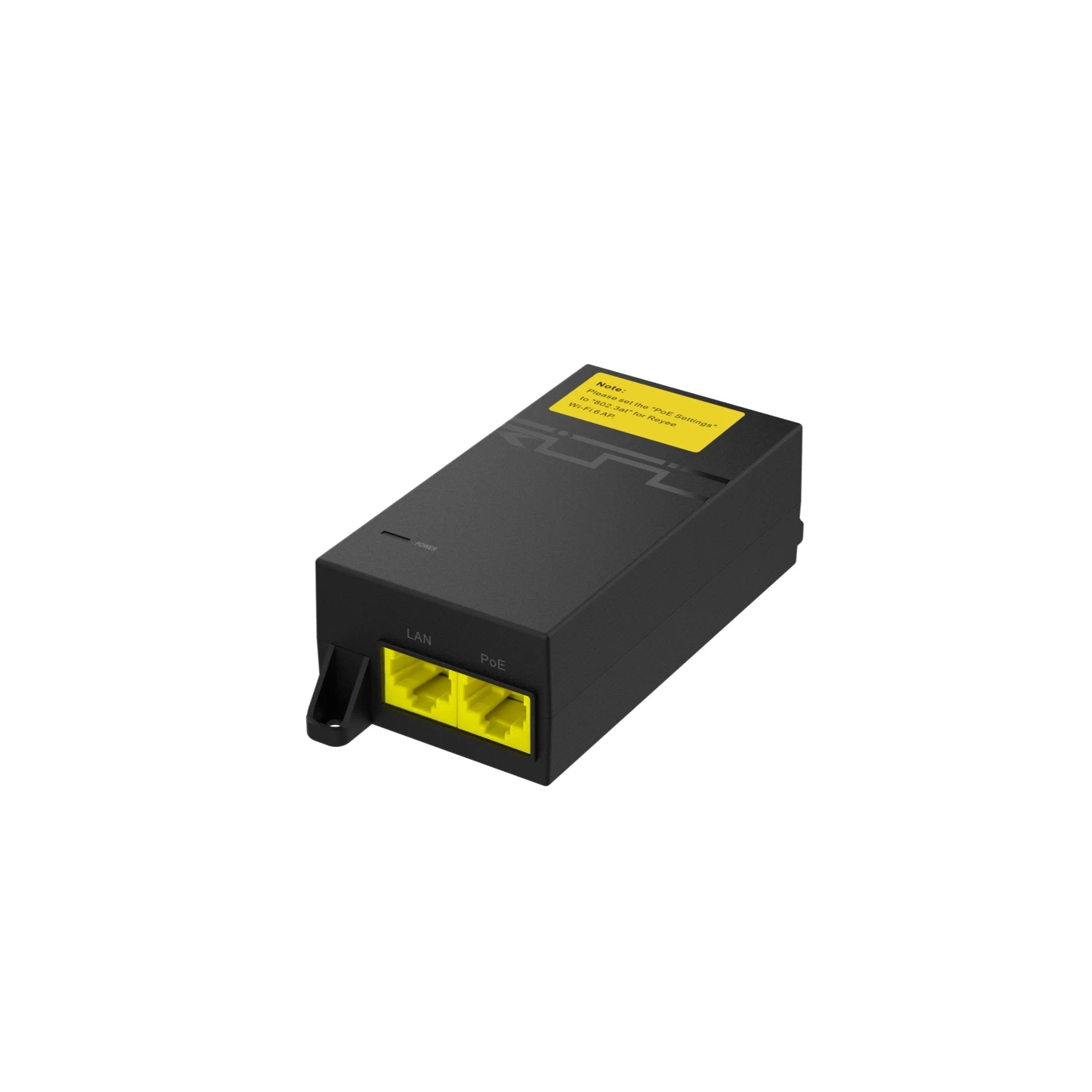

Reyee 1-Port Passive PoE Injector 52V 31.2W 1G RJ45 RG-POE-AT30

Photo is representative

Reyee 1-Port Passive PoE Injector 52V 31.2W 1G RJ45 RG-POE-AT30

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RG-POE-AT30
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £17.40

Gross price

£20.88

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single-port passive PoE injector for powering compatible access points over Cat5e/Cat6 Ethernet. Combines 52V DC power and data on a single run — no managed PoE switch required.

Uses 2-pair powering (pins 4,5 positive, pins 7,8 negative). Not 802.3at/af — connected device must support passive PoE at 52V. Check AP compatibility before installing.

  • Output: 52V ±5% @ 0.60A, 31.2W
  • AC input: 100–240V, 50/60Hz via IEC-320 C6 connector
  • Data port: 1G shielded RJ45
  • Surge protection: 2000A (8⁄20 µs) power, 36A (10⁄1000 µs) data
  • Operating temp: -10°C to +45°C
Specifications

PoE Standard

Passive PoE

Output Voltage

52V ±5% @ 0.60A

Max Output Power

31.2W

AC Input Voltage

100–240VAC, 50/60Hz

Input Current

0.7A Max

Inrush Current

100A @ 230VAC

Efficiency

87.06%

Output Ripple

≤200mVp-p

Gigabit LAN Port

1G

Data Port

RJ45 Shielded Socket

AC Connector

IEC-320 C6

2-Pair Powering

Pins 4,5 (+) and Pins 7,8 (-)

Surge Protection (Power)

2000A (8/20 µs)

Surge Protection (Data)

36A (10/1000 µs)

Operating Temperature

-10°C to +45°C

Storage Temperature

-40°C to +70°C

Operating Humidity

5–95% RH, non-condensing

Dimensions

95.2 x 52.2 x 33.2 mm ±1mm

Weight

145g ±5g

Certifications

CE, CB

Documents

datasheet RG-POE-AT30 Datasheet
